CAP ax mikroTik router Overvoltage and resistance checking

CAPGi-5HaxD2HaxD

Disassemble the router using KB article: CAP ax mikroTik router disassembling

Tools Required:

1. Multimeter (with DC voltage and resistance (ohm) settings)

2. Plastic prying tools.

3. Screwdrivers.

Instruction for checking over- voltage

Checking Schottky diode and diode bridge:

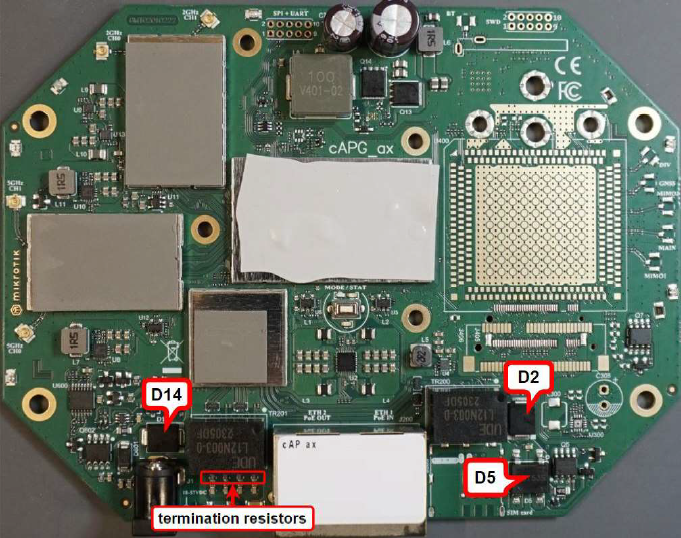

1. Identify the location of diodes on the board.

2. D2 and D14 are Shcottky diodes, D5 is diode bridge.


Check the value of termination resistors resistance: Value should be 75 Ohms

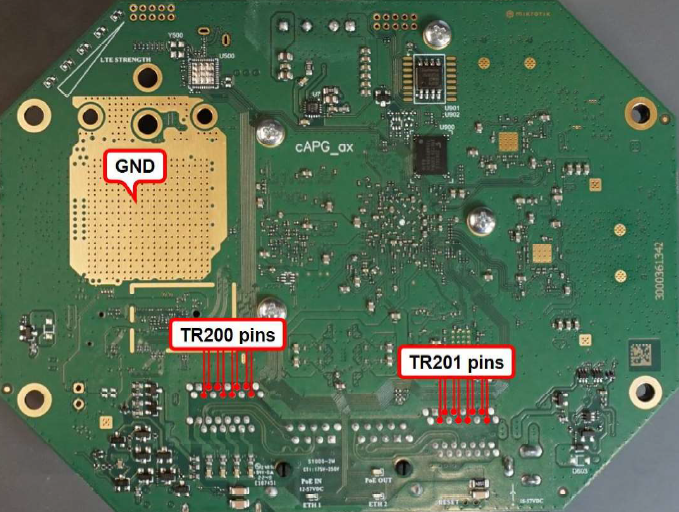

Checking Voltage drop value between using ethernet transformers pin and ground:

Checking voltage drop value between Ethernet Transformers TR200 and TR201 and Ground.

Voltage drop value should be in the range 0.35V and 0.40V

Video Link : CAP ax mikroTik router Overvoltage and resistance checking.mp4
