MikroTik Router Dissasembly
RB951G-2HnD

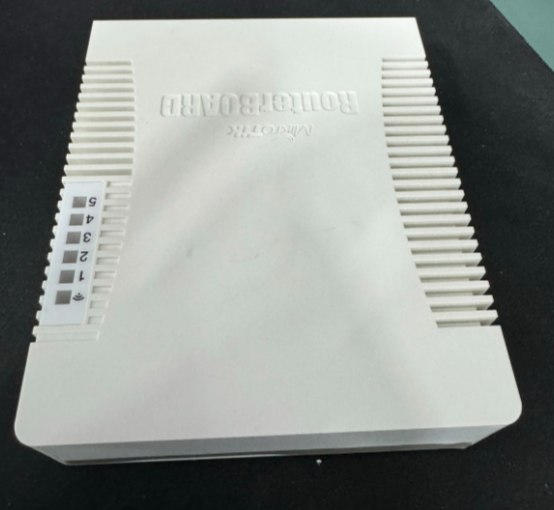

The RB951G-2HnD is a wireless SOHO Gigabit AP with a new generation Atheros CPU and more processing power. It has five Gigabit Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
Steps

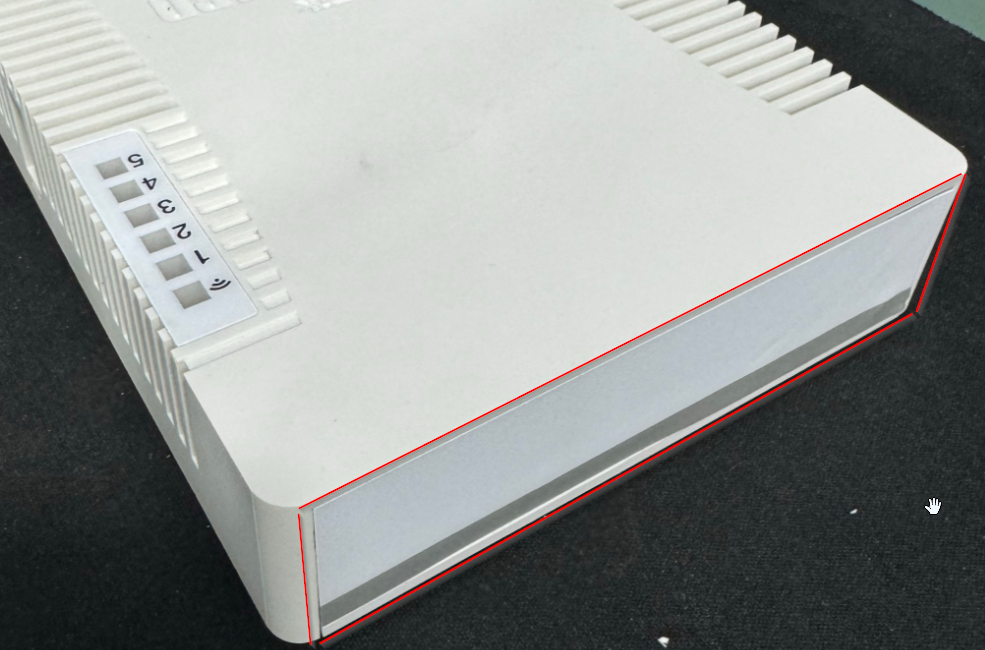

- Remove the sticker as shown:

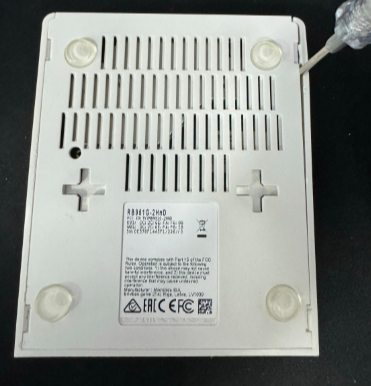

- From the bottom take off the cover with a screwdriver as shown:

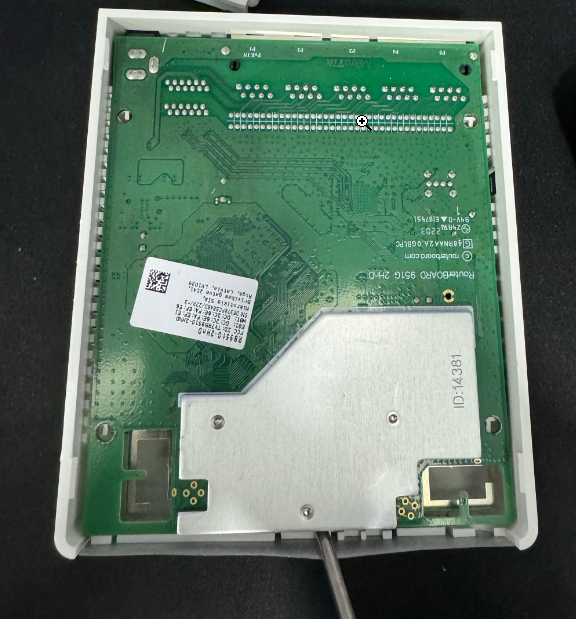

- Remove the board as shown:

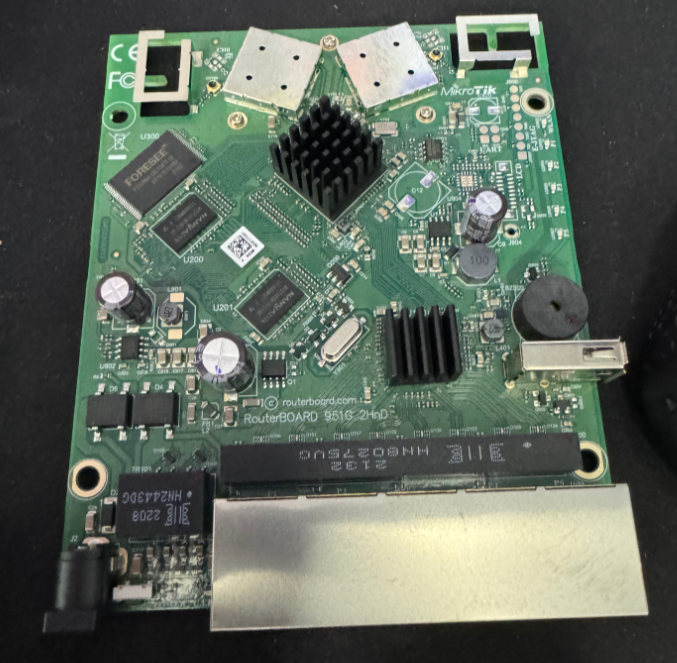

- Completely separate the board carefully
