Fix: DGX Spark Kernal Panic - OS Reinstall via System Recovery

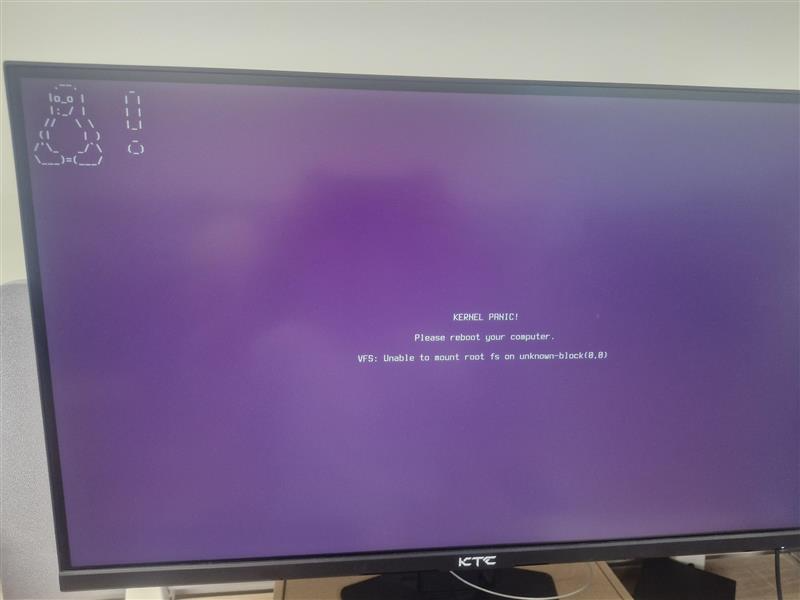

The Issue : Kernel Panic: VFS Unable to Mount Root FS on Unknown-Block(0,0)
This error is one of the more alarming things you can
encounter on a Linux-based system. When the DGX Spark throws a kernel panic
with the message VFS: Unable to mount root fs on unknown-block(0,0), it means
the kernel has booted successfully but cannot find or mount the root filesystem
from the internal SSD. The system essentially has no idea where to look for its
operating system.
Common causes on the DGX Spark include:
- Filesystem or partition table corruption on the internal SSD (often from an unclean shutdown or power loss during a write operation)
- A botched OS or firmware update that left the bootloader or root partition in an inconsistent state
- Fatal misconfiguration (e.g., incorrect GRUB or initramfs entries pointing to the wrong block device)
- SSD sectors that have gone bad, making critical filesystem metadata unreadable
Once you're in this state, the system is effectively
unbootable. You cannot recover from within the OS itself — a full reinstall via
NVIDIA's recovery media is the path forward.
Temporary Fix: Full OS Reinstall via Recovery USB
Note: This applies to the DGX Spark Founders
Edition only. If you have an OEM variant, contact your manufacturer for
recovery procedures.What You'll Need
- A USB flash drive, 16GB or larger
- A wired USB keyboard (Bluetooth keyboards may not work in UEFI)
- A display connected to the DGX Spark
- A secondary computer to download and prepare the recovery media
Step 1: Download the Recovery Media
On another machine, download the recovery archive from
NVIDIA:
Extract the .tar.gz archive once downloaded.

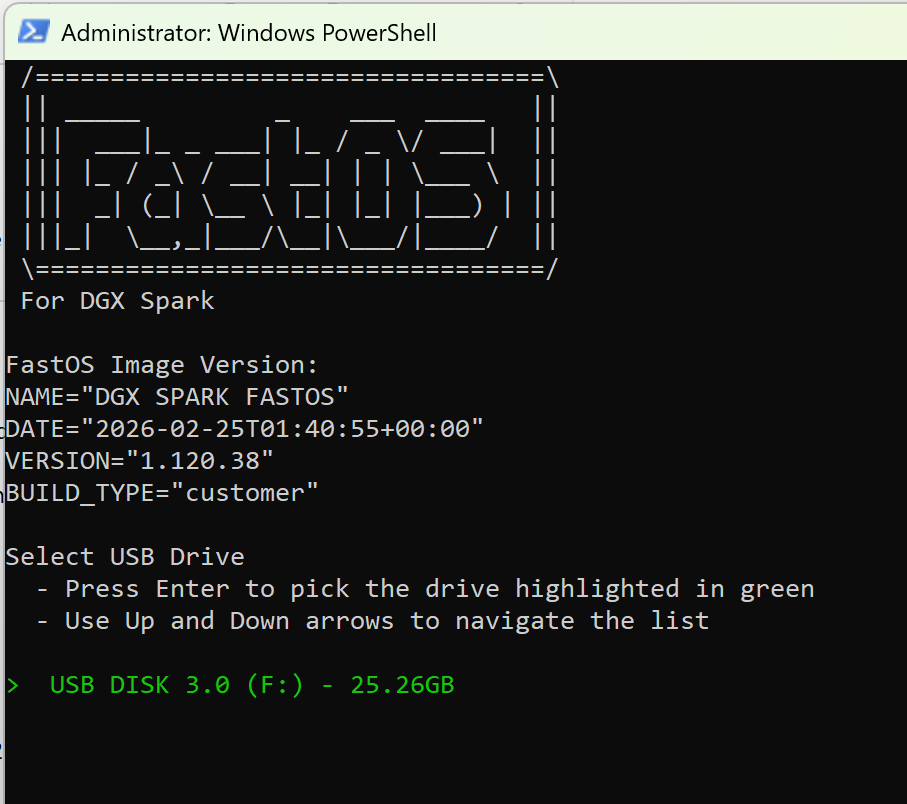

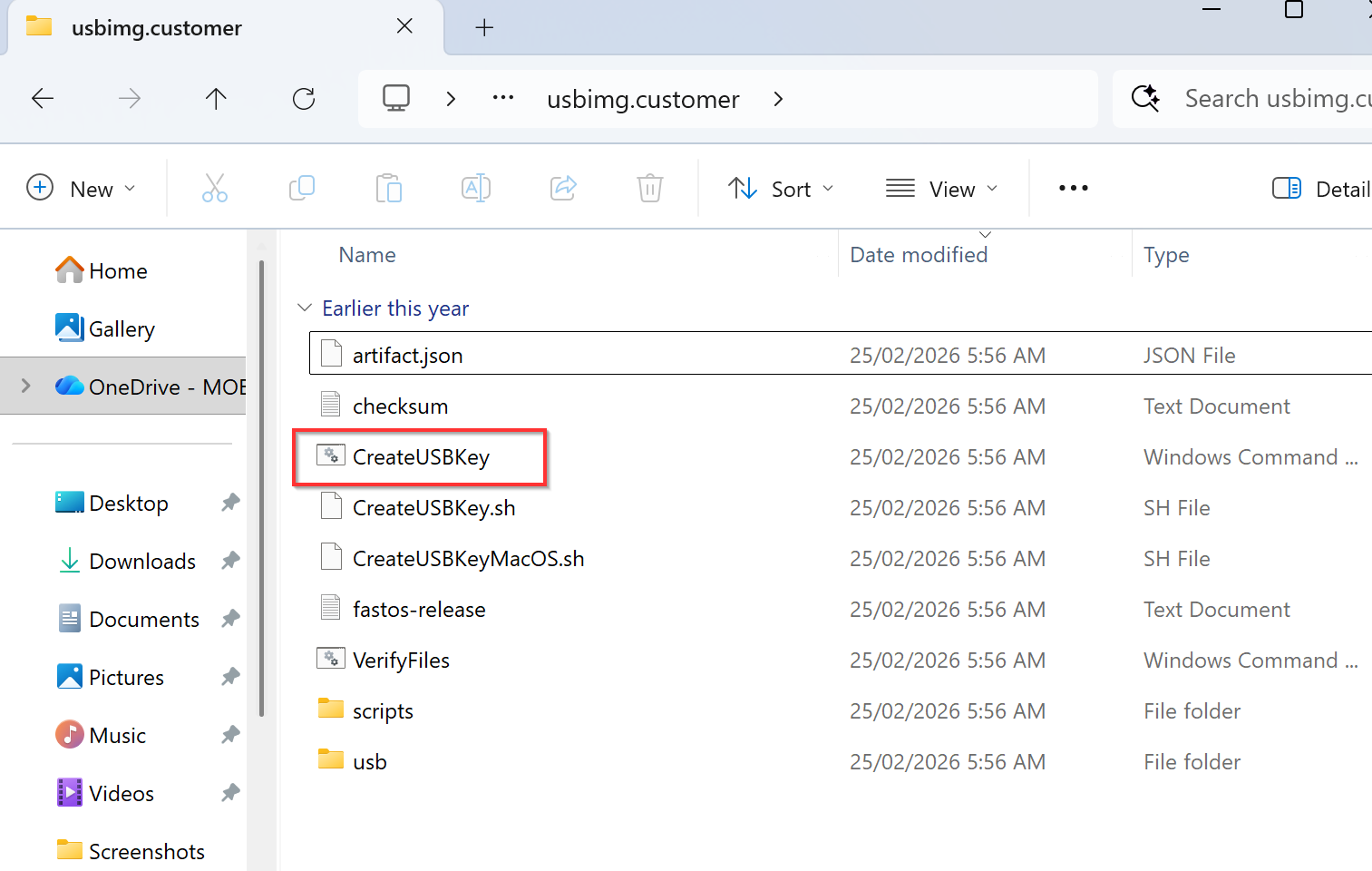

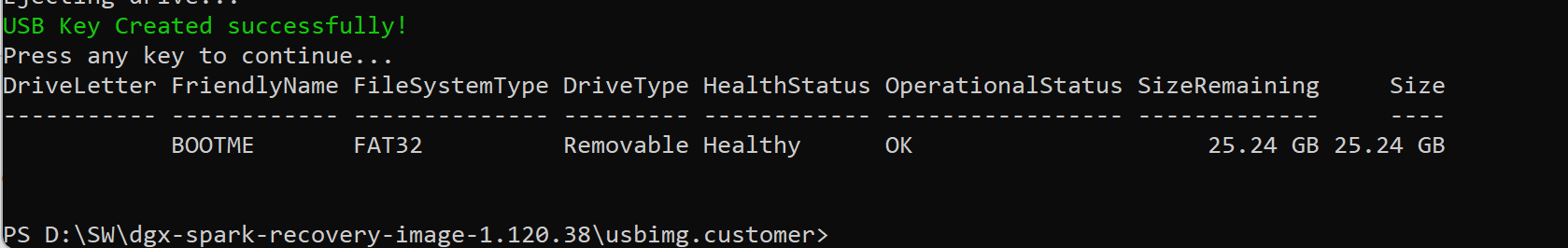

Run CreateUSBKey.cmd as Administrator | Select USB |

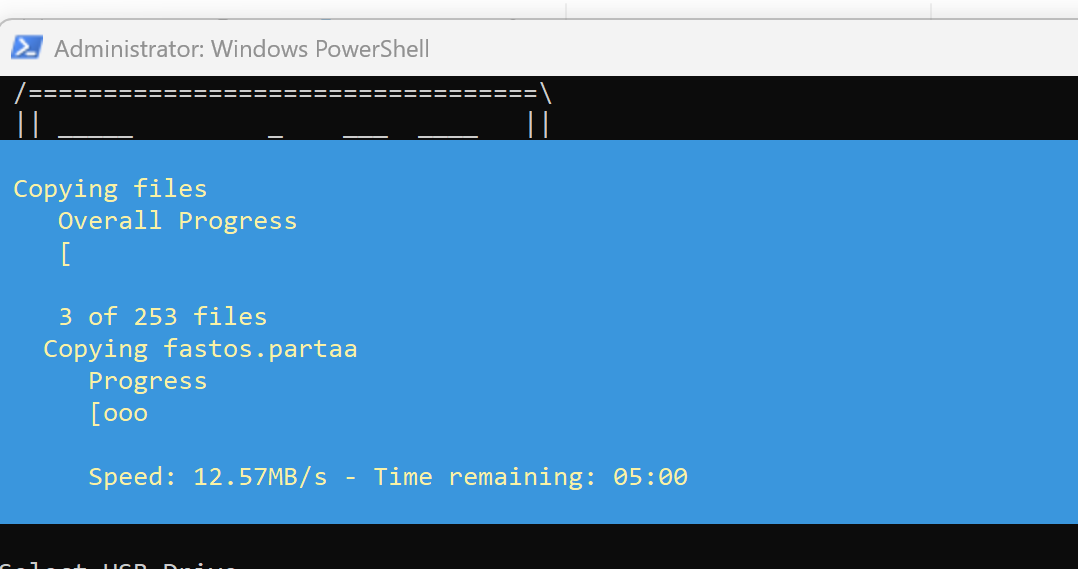

Step 2 — Create the Bootable Recovery USB
Insert your USB drive into the secondary machine and run the
appropriate script from the extracted folder. This will wipe the USB drive,
so back up anything on it first.
- Windows (run as Administrator): CreateUSBKey.cmd
- Linux: CreateUSBKey.sh
- macOS: CreateUSBKeyMacOS.sh
Step 3: Prepare the DGX Spark for Recovery
- Disconnect any external storage from the DGX Spark
- Plug the recovery USB into a USB port on the DGX Spark
- Power on the device and immediately hold Esc or Del to enter UEFI settings
Step 4: Restore UEFI Defaults
- Navigate to the Save & Exit page (Right Arrow key)
- Select Restore Defaults → confirm with Yes
- Select Save Changes and Reset
- As it reboots, hold Esc/Del again to re-enter UEFI
Step 5: Enable Secure Boot
- Navigate to the Security tab
- Confirm Secure Boot is set to Enabled
- Select Restore Factory Keys
- Go to Save and Exit → Save Changes and Reset
- Hold Esc/Del again on reboot to enter UEFI a third time
Step 6: Boot from the Recovery USB
- Go to Save & Exit → scroll down to Boot Override
- Select your USB drive and press Enter
- The system will reboot into the recovery environment
Start Recovery |
Step 7: Run the Recovery
Walk through the on-screen prompts:

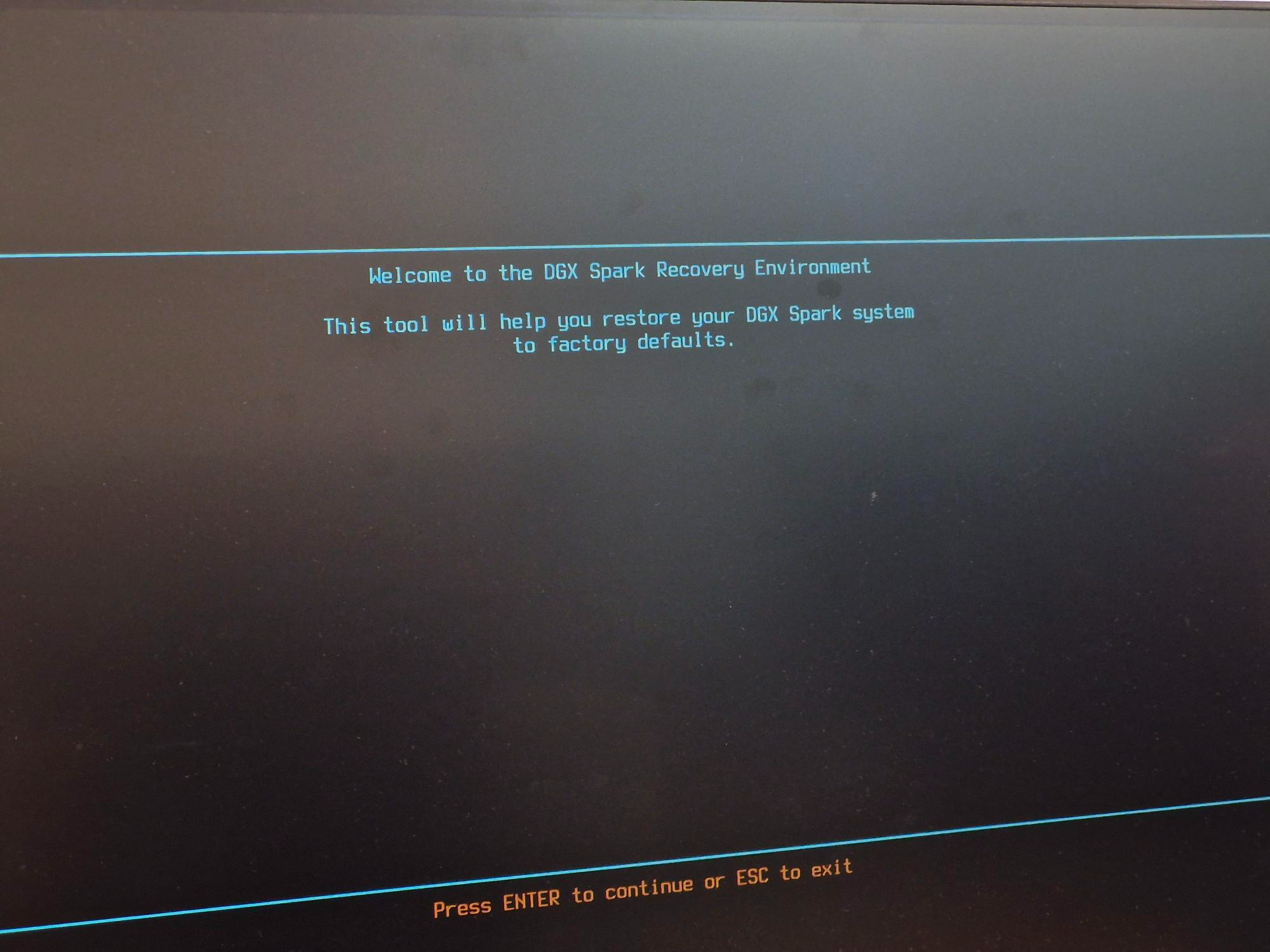

- Welcome screen — Press Enter to continue

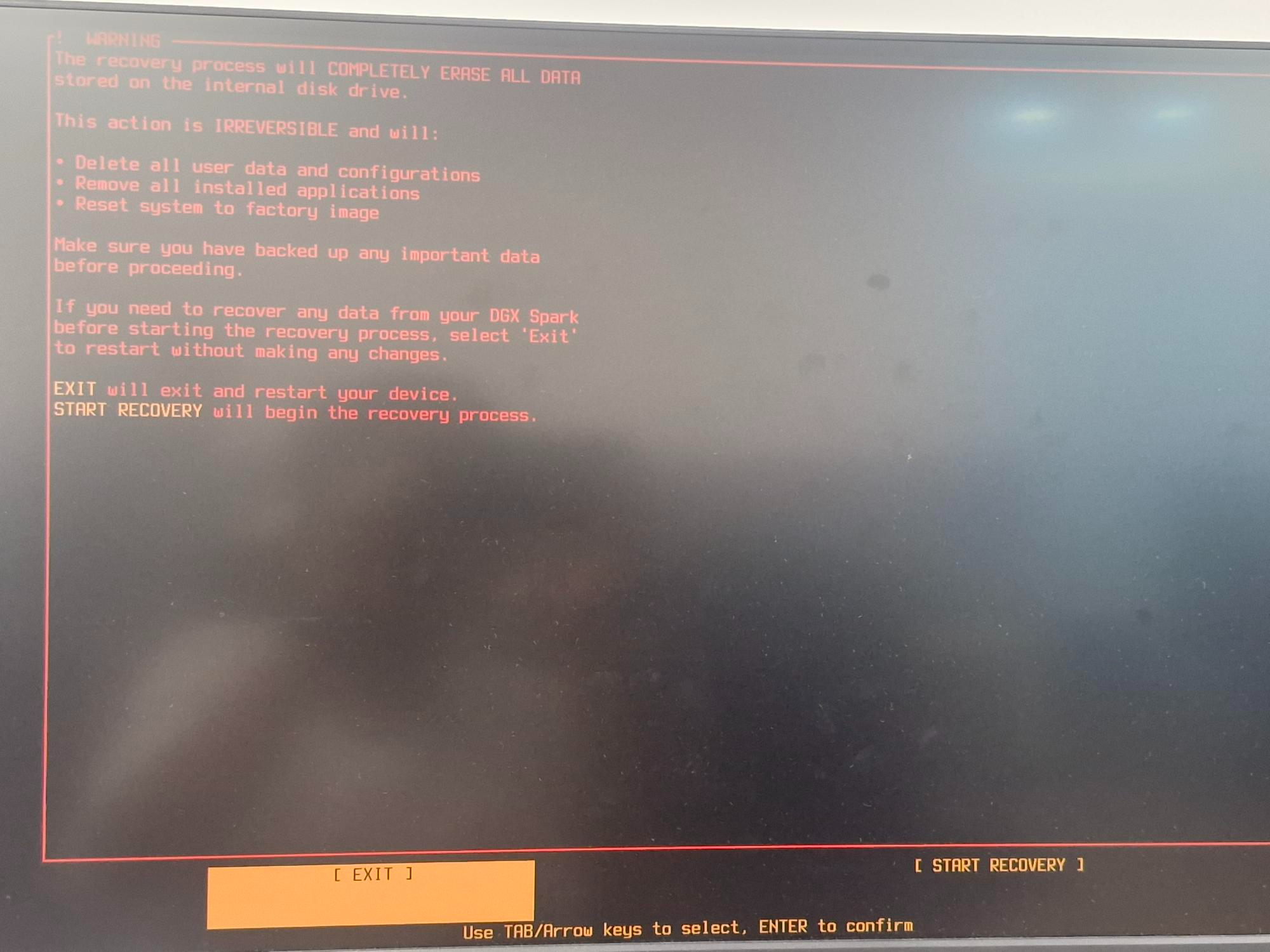

- Warning screen — Select [START RECOVERY] (this will completely wipe the internal SSD)
- Progress screen — Monitor the reflash; this takes several minutes
- Completion screen — Review the output, then follow the prompt to continue
- Final screen — Confirm factory reset and press Enter to restart

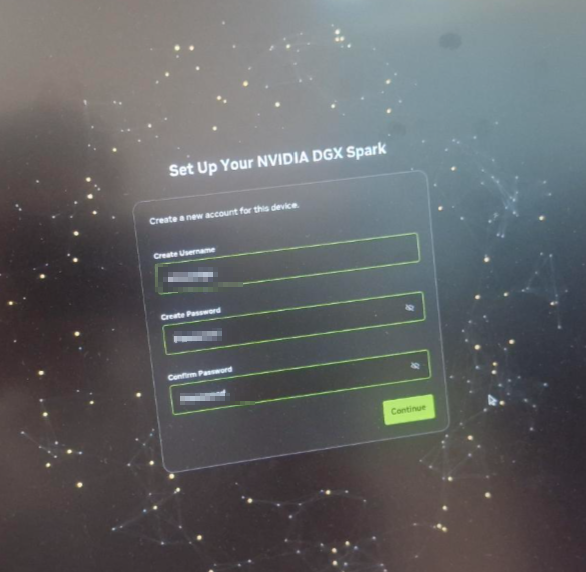

The DGX Spark will reboot into a clean factory state.

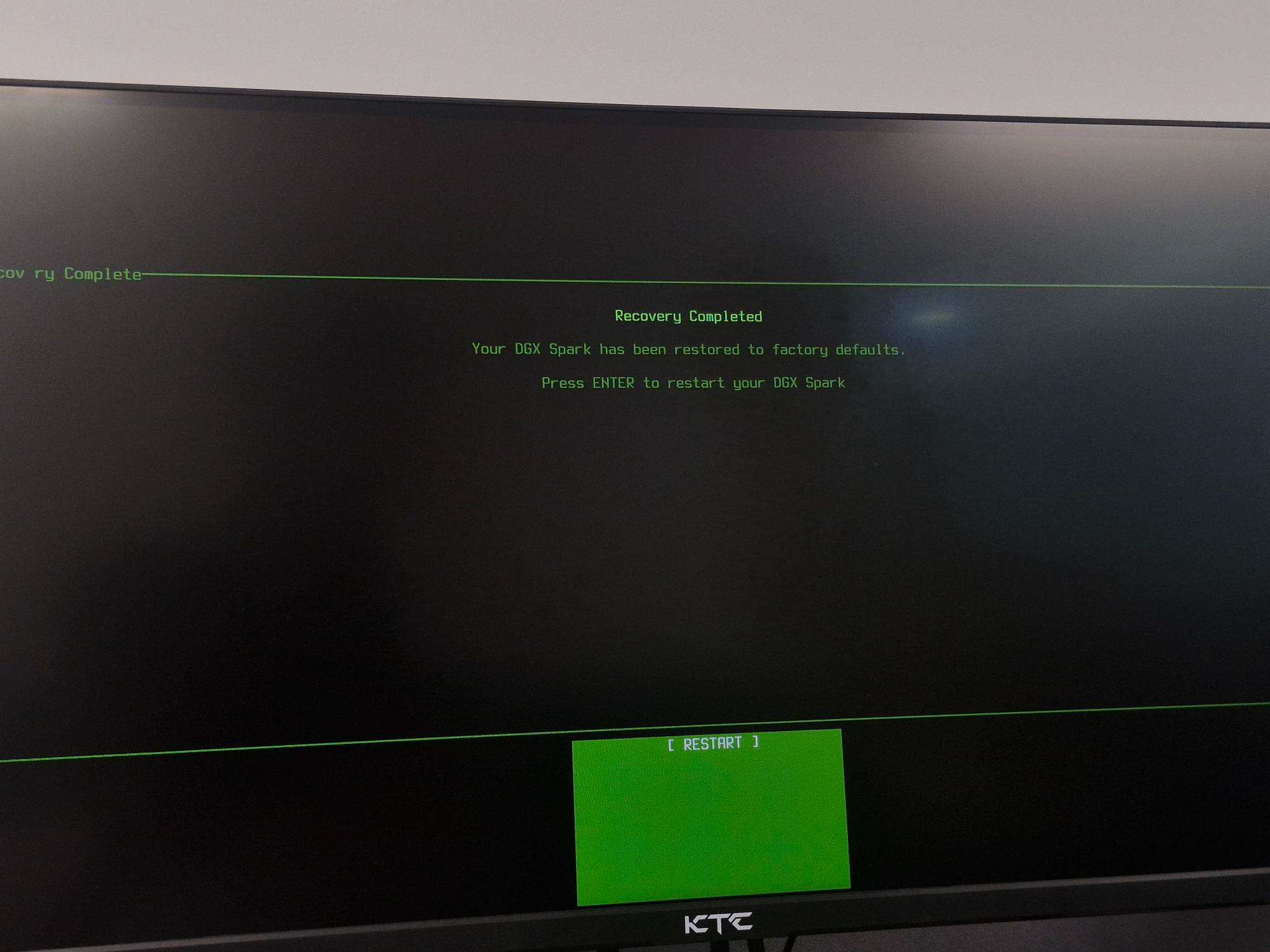

Recovery Completed |
Key Things to Know
- The kernel panic in this case was a symptom of filesystem-level corruption — the reinstall is the right call once you've ruled out a hardware fault with the SSD
- UEFI defaults and Secure Boot must be properly configured before booting the USB or the recovery environment may not load correctly — don't skip Steps 4 and 5
- Use a wired USB keyboard throughout; wireless/Bluetooth keyboards frequently fail to register input during UEFI and early boot
