How to Collect Logs from NVIDIA Cumulus Linux Switch

How to Collect Logs from NVIDIA Cumulus Linux Switch

Purpose

This article describes how to collect diagnostic logs from a switch running NVIDIA Cumulus Linux. These logs are typically required by NVIDIA Networking Support for troubleshooting switch-level issues such as port flaps, routing problems, fabric instability, or software faults.

Scope

This procedure applies to:

  • NVIDIA switches running Cumulus Linux

  • Environments using CLI (SSH) access to the switch

  • Scenarios requiring system, networking, and hardware diagnostics

Prerequisites

  • SSH access to the Cumulus Linux switch

  • Administrative (sudo) privileges

Procedure

Step 1: Log in to the Cumulus Linux Switch

  1. Open a terminal.

  2. Connect to the switch using SSH:

ssh cumulus@<switch-management-ip>

  1. Elevate privileges if required:

sudo -i

Step 2: Verify Switch and OS Details (Optional but Recommended)

Collect basic system information:

hostname cat /etc/os-release uname -a

Step 3: Generate Cumulus Support Log Bundle

Cumulus Linux provides a built-in command to collect comprehensive logs.

Run the following command:

sudo cl-support

This command:

  • Collects system logs

  • Captures network configuration

  • Gathers hardware and interface information

  • Packages everything into a compressed archive

The output file is typically generated under:

/var/support/

Step 4: Verify Log File Creation

Confirm the file exists and is non-empty:

ls -lh /var/support/

Step 5: Download log file

We can download the log file using an FTP tool like MobaXterm:

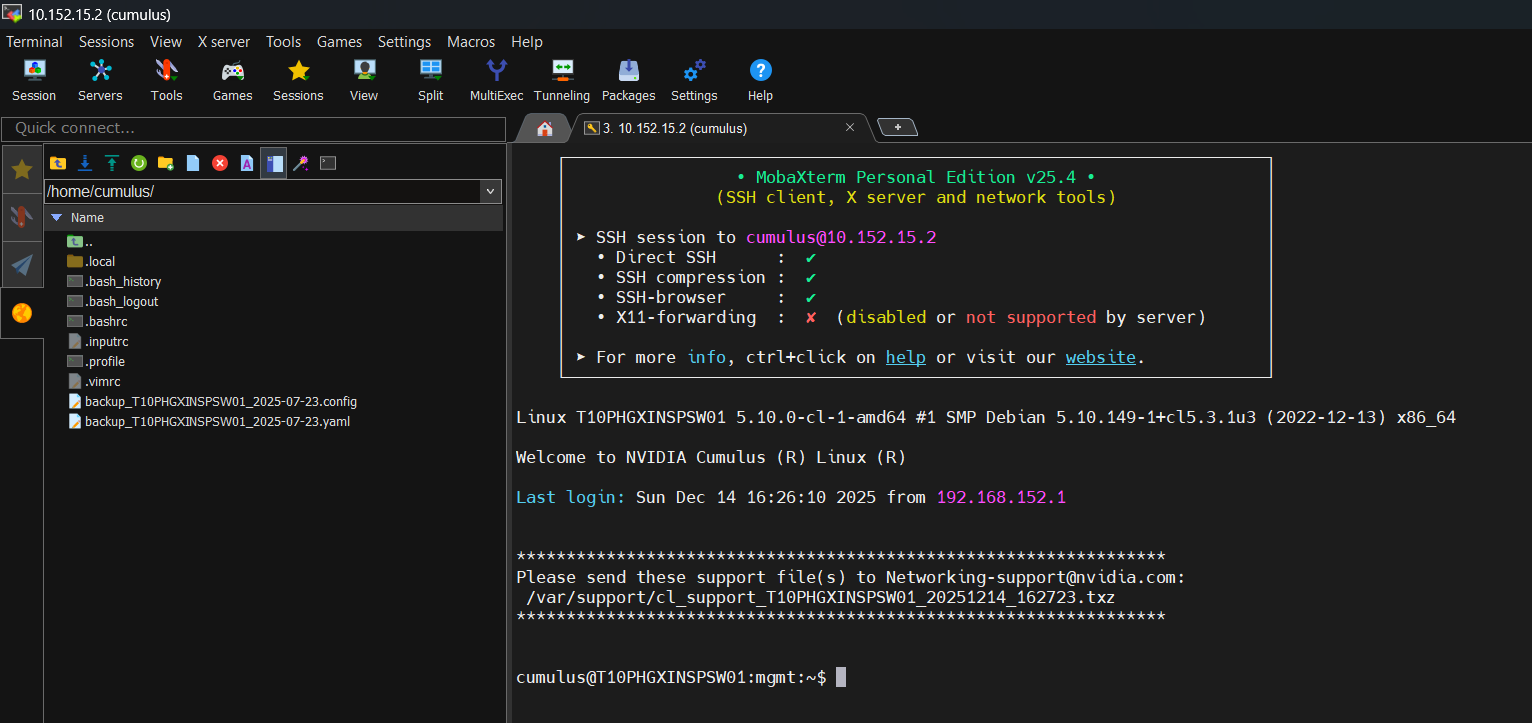

  1. Log into the switch using MobaXterm

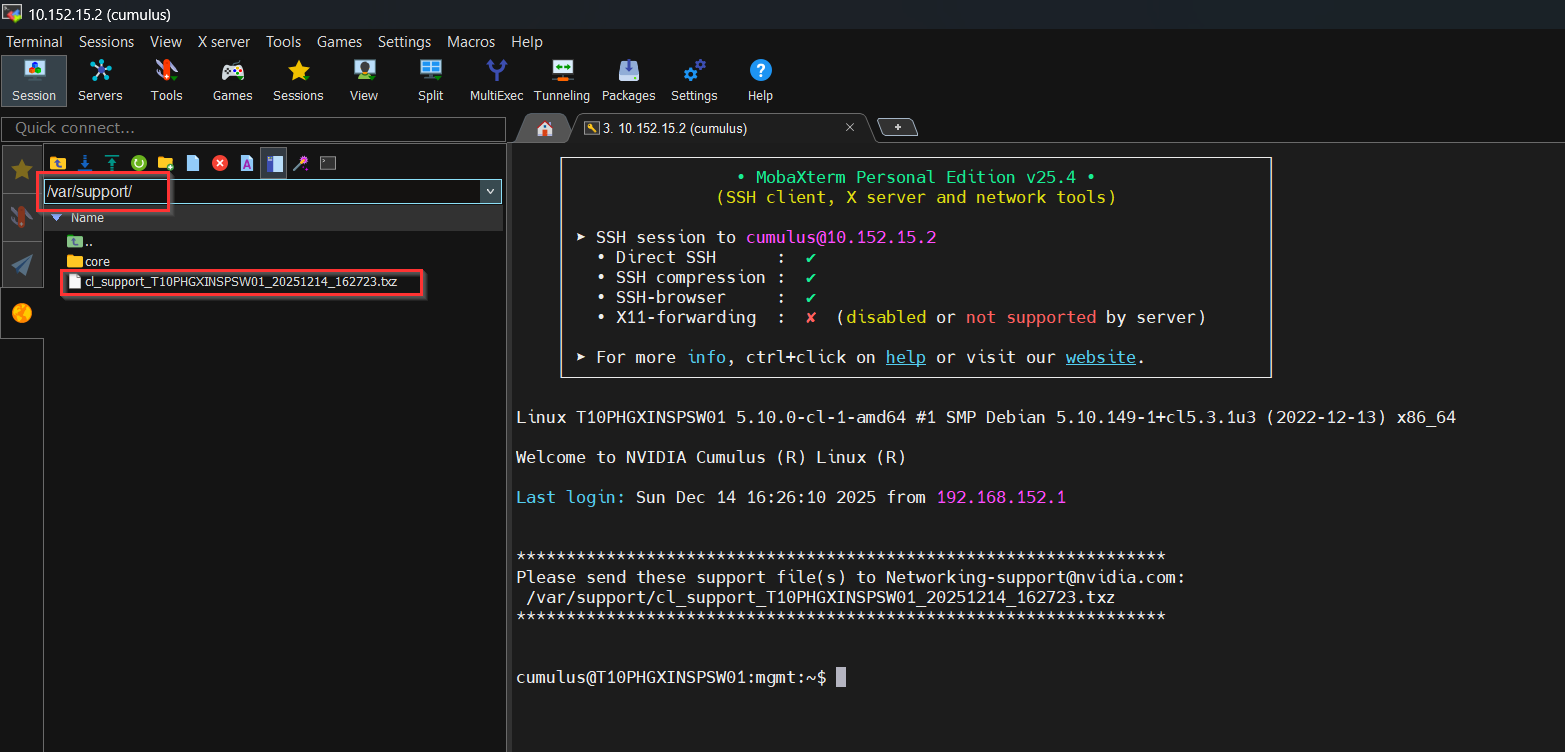

  2. From the left tab go to path /var/support/

  3. Locate the support file

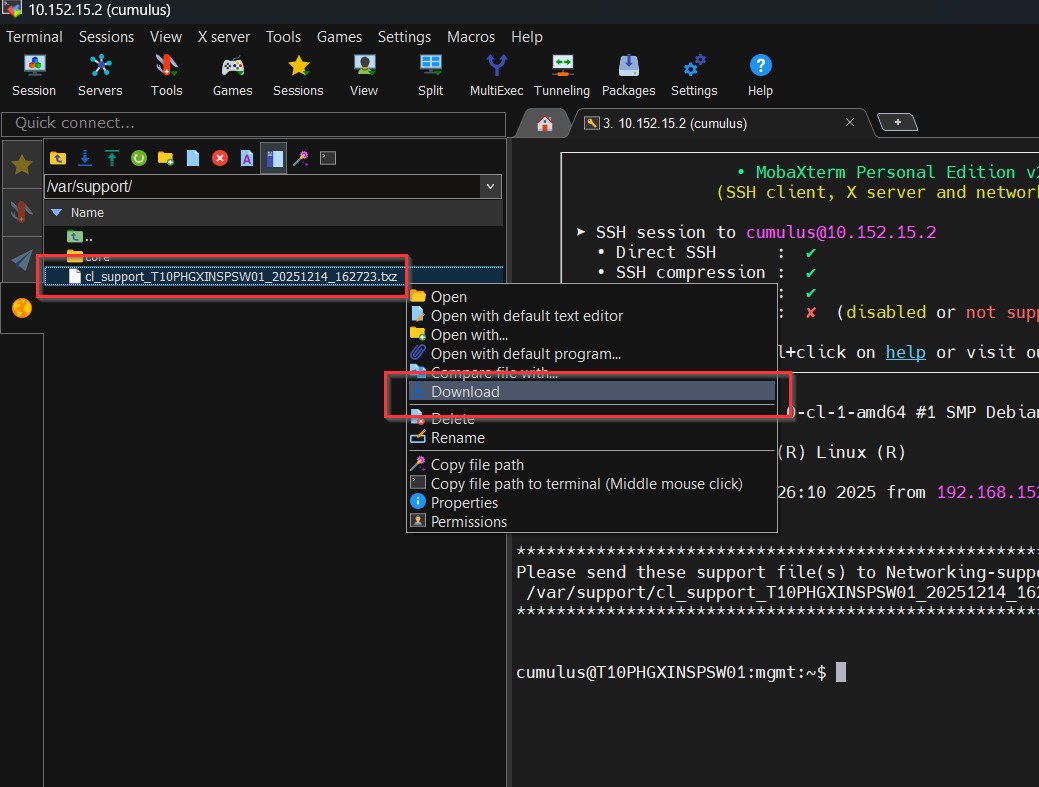

  4. Right click → Download

  5. The support file will be downloaded into your system





Notes and Best Practices

  • Always run cl-support before rebooting the switch.

  • Do not modify the generated archive.

  • Ensure timestamps align with the reported incident.

  • Store log bundles securely, as they may contain sensitive configuration data.
