Required components: POE Switch, Console cable, Laptop / Desktop, Ruijie Access Point, Network cable
  1.  Power in POE switch with power cable and connect AP and Switch using a Network cable.
  2. Connect the Console cable in the console port of AP and Laptop

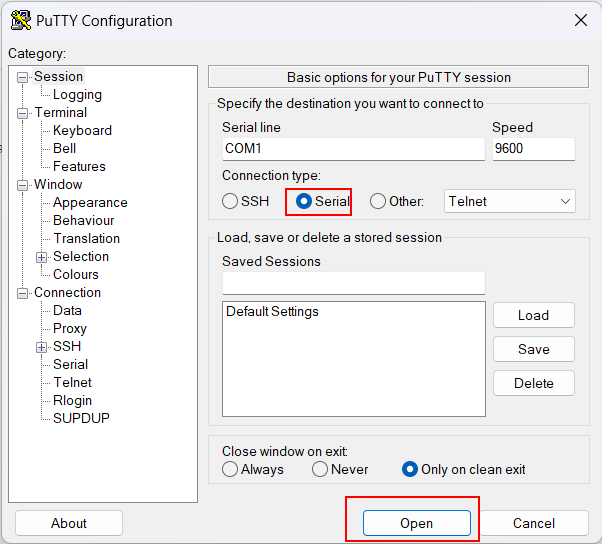

  3. Download putty on the Laptop, open Putty select connection type as serial and click open
  4. Putty will ask for password , enter the password of AP and we can login to AP console

AP Interface configuration

  1. Enter following commands to configure AP

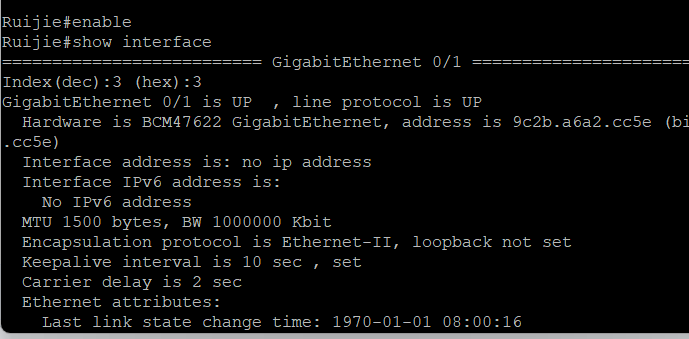

  1. show interface // for showing all interface details//

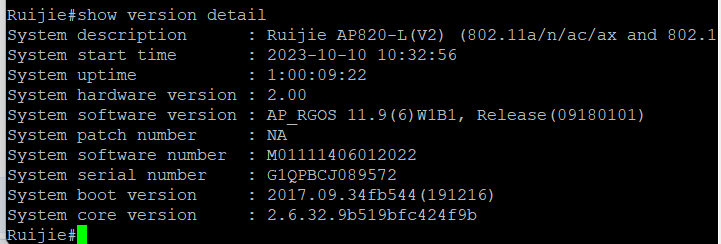

  2. Show version details// For showing version including serial number//

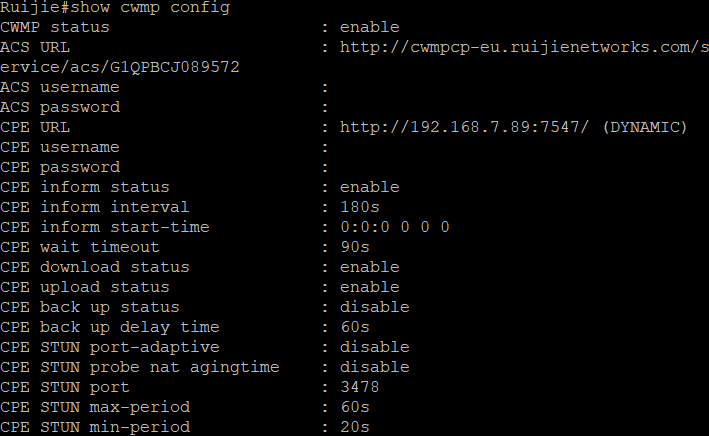

  3. show cwmp status // status of the unit (cwmp status must be enabled )//

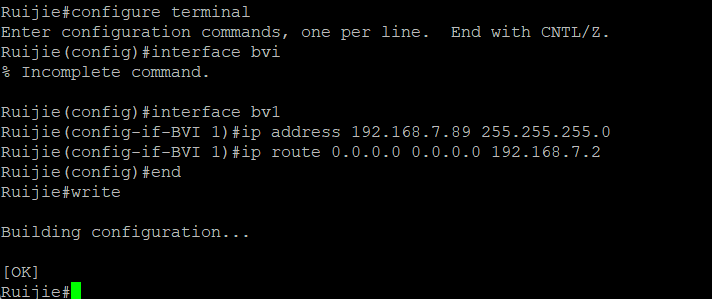

  4. Type following commands for configuring interface

    Ruijie>enable

    Ruijie#configure terminal

    Ruijie(config)#interface bv1

    Ruijie(config-if-vlan 1)#ip address 192.168.7.89 255.255.255.0 // enter ip address and subnet mask needed//

    Ruijie(config)#ip route 0.0.0.0 0.0.0.0 192.168.7.2  // enter gateway address//
    Ruijie(config)#end
    Ruijie#write


AP GUI username and password configuration

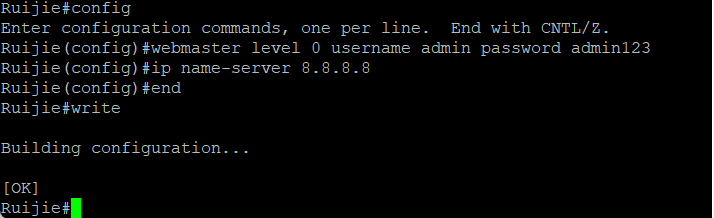

  1. Enter the following command in the putty console to change username and password of GUI interface.
    Ruijie#config
    Ruijie(config)# webmaster level 0 username admin password admin123
    Ruijie(config)#ip name-server 8.8.8.8
    Ruijie(config)#end
    Ruijie#write
