Mikrotik IPSec traffic one way

Mikrotik IPSec traffic one way

Issue:
I am able to ping and connect to devices on the Mikrotik side from the Sophos but,
Traffic initiated from the Mikrotik side is not returning to the Sophos all.


Cause:

The traffic was being NATd through our WAN interface.  Looks like our NAT rules were set to use our WAN interface to translate the IPs.

Solution:

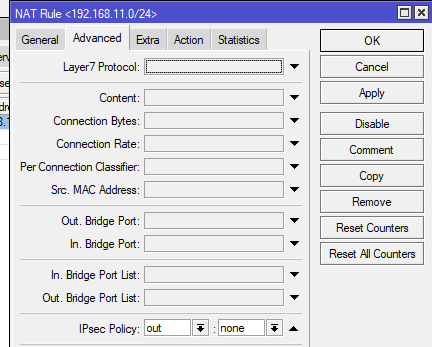

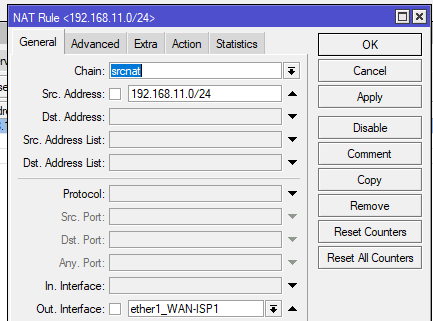

updated the rules as shown beneath where I excluded my specific subnet AND set ipsec-policy=out,none










Reference:
