Cable Guide for RAID Controller Cards and HBAs
Broadcom cables help ensure reliable installation of RAID controller cards and HBA devices using vendor-tested connections. These cables are tested and approved to support a stable and properly deployed storage solution.
Different internal cable options make system integration easier.
All cables are thoroughly tested to ensure good quality and reliable performance.
SAS/SATA Cables for 93xx and 94xx Series
Cable Specifications
These cables enable connections from 9300 and 9400 series MegaRAID and HBA adapters to SAS and SATA devices.

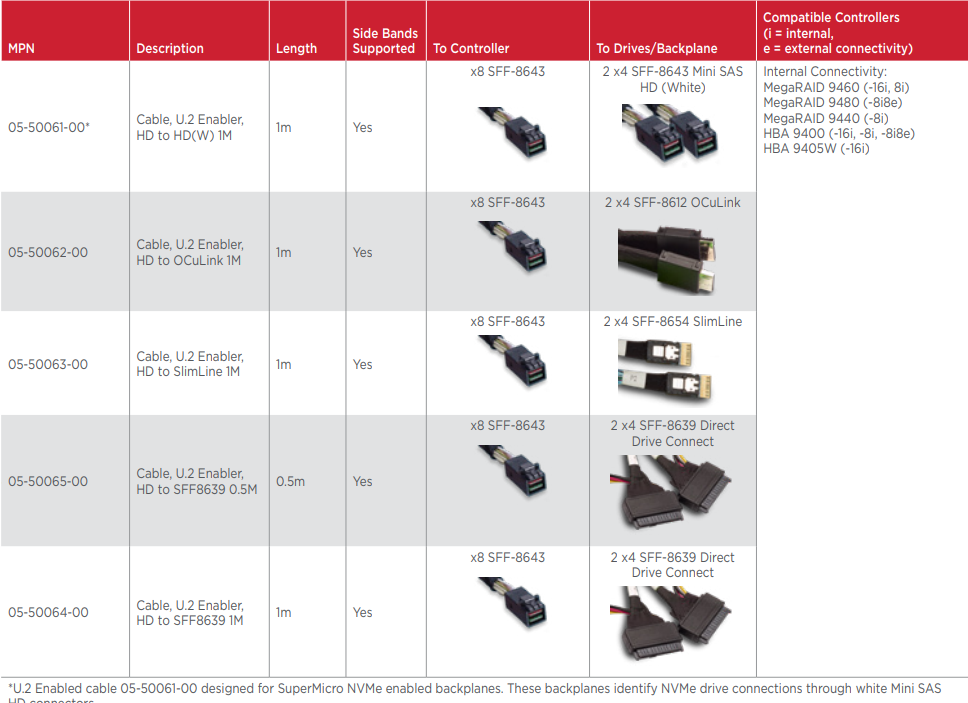

U.2 Enabled Cables for 94xx Series
Cable Specifications
These cables enable connections from 9400 series MegaRAID and HBA Tri-Mode Adapters to NVMe storage
devices either through backplane or direct to drive connections.

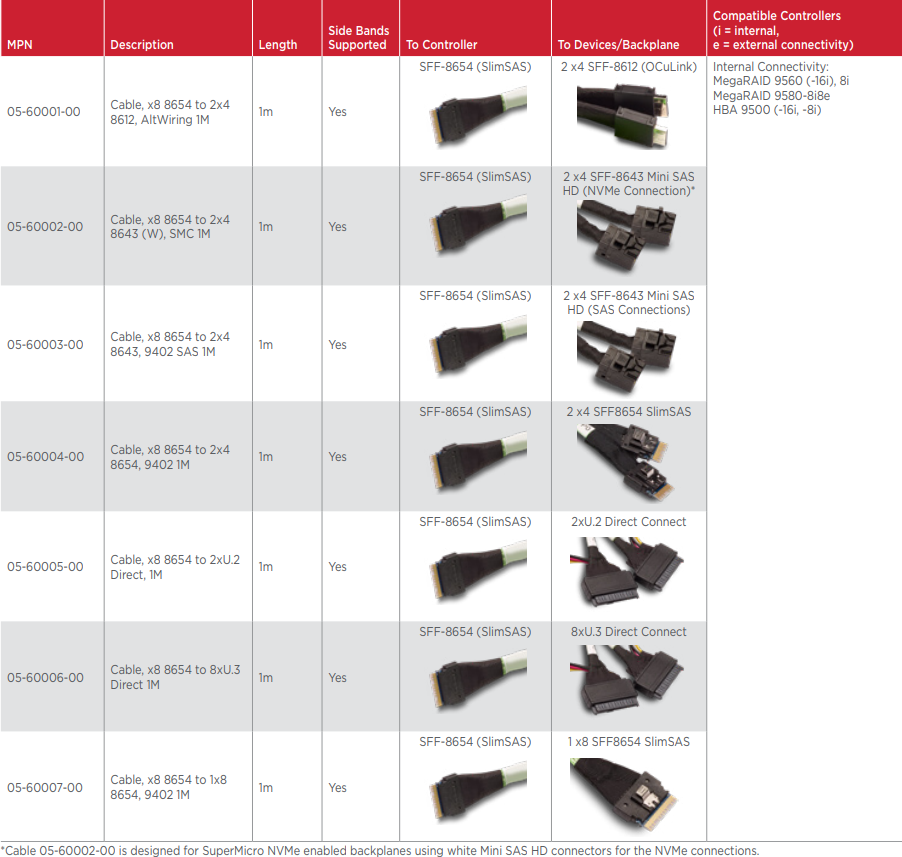

Tri-Mode Cable for 95xx Adapter Generation
Cable Specifications
These cables enable connection from 95xx series MegaRAID and HBA Tri-Mode adapters to SAS, SATA, and PCIe
(NVMe) devices
