PDU (Power Distribution Unit) socket form factors vary based on region, voltage requirements, and equipment compatibility
Notes
Common PDU socket types we are using are IEC C13 (10A, commonly used for IT equipment) and IEC C19 (16A, for high-power servers & networking)

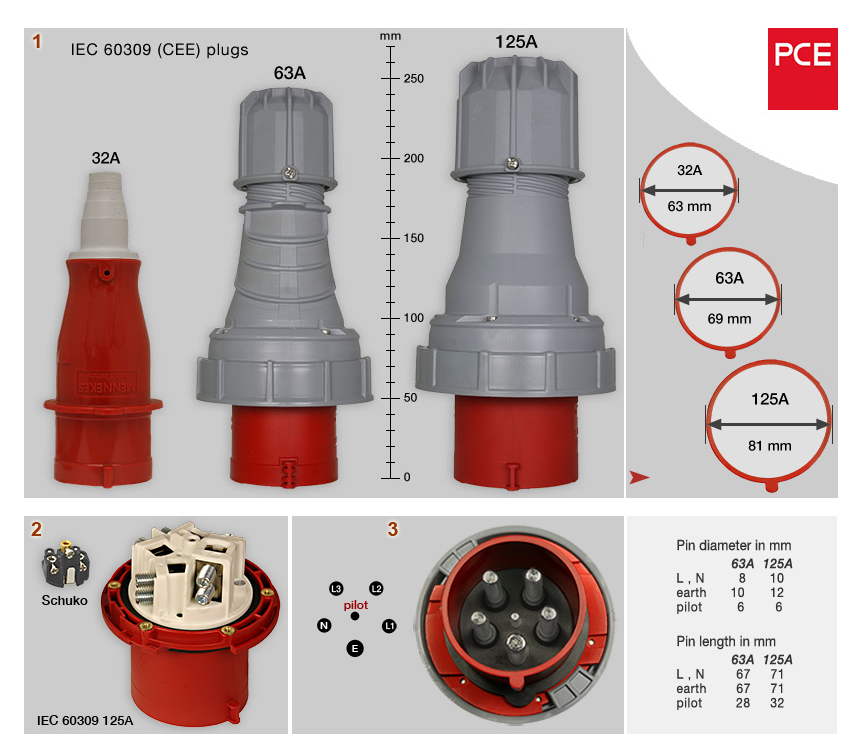

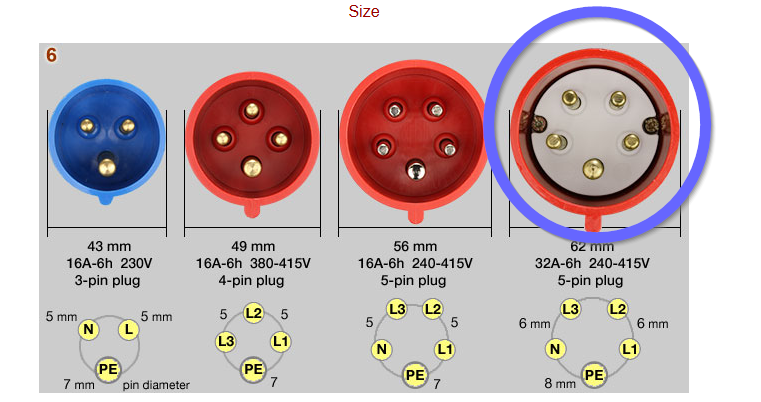

The physical form factors of 63 Amps and 32 Amps PDU sockets are different. The tap-off box of a 63 Amps PDU has an IEC60309 63 Amps Industrial female socket, which is specifically designed to be compatible with a 63 Amps PDU. Similarly, a 32 Amps PDU utilizes a corresponding IEC60309 32 Amps Industrial female socket. These differences ensure that the correct PDU is used for the corresponding power requirements.

63 Amps




32 Amps


Failover Load Consideration

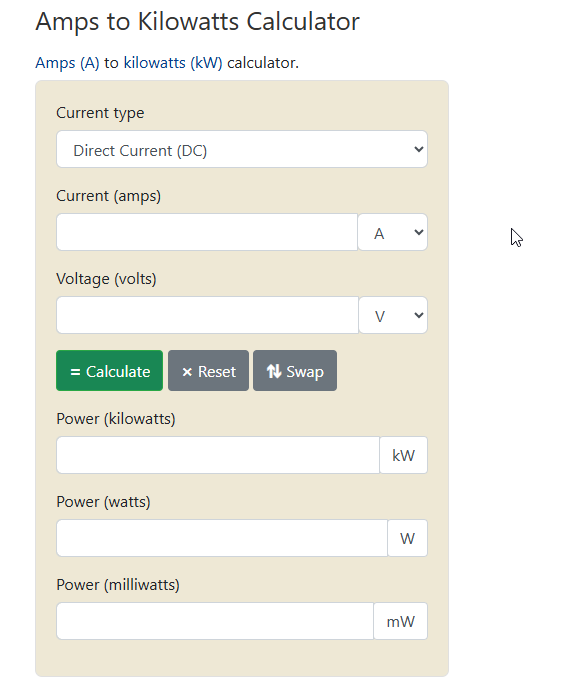

Amps to Kilowatts (kW) conversion calculator

Step-by-Step Functionality

  1. Select the Current Type

    • Direct Current (DC)
    • Alternating Current (AC) – Single Phase or Three Phase

  2. Enter the Values

    • Current (Amps): Input the electrical current.
    • Voltage (Volts): Input the voltage level.

  3. Click "Calculate"

    • The calculator applies the appropriate formula based on the selected current type.
