1.Purpose

NVIDIA NetQ provides real-time monitoring and analytics for data centers running Cumulus Linux. Integrating it with Netris aligns NetQ's topology with the Netris-managed network, enabling deeper visibility and proactive troubleshooting.

2.Scope

  1. Real-time network telemetry and health monitoring
  2. Automated validation of fabric configuration
  3. Faster troubleshooting

3.Prerequisites

Before you begin, ensure you have:

  • Administrative access to the Netris Controller.
  • Administrative access to your NVIDIA NetQ instance.

4.Procedure

Step-by-Step Integration Guide

Info
4.1 Step 1: Export Topology Blueprint from Netris

NVIDIA NetQ requires a topology blueprint in a specific .dot file format. Netris has a built-in function to generate this file for you

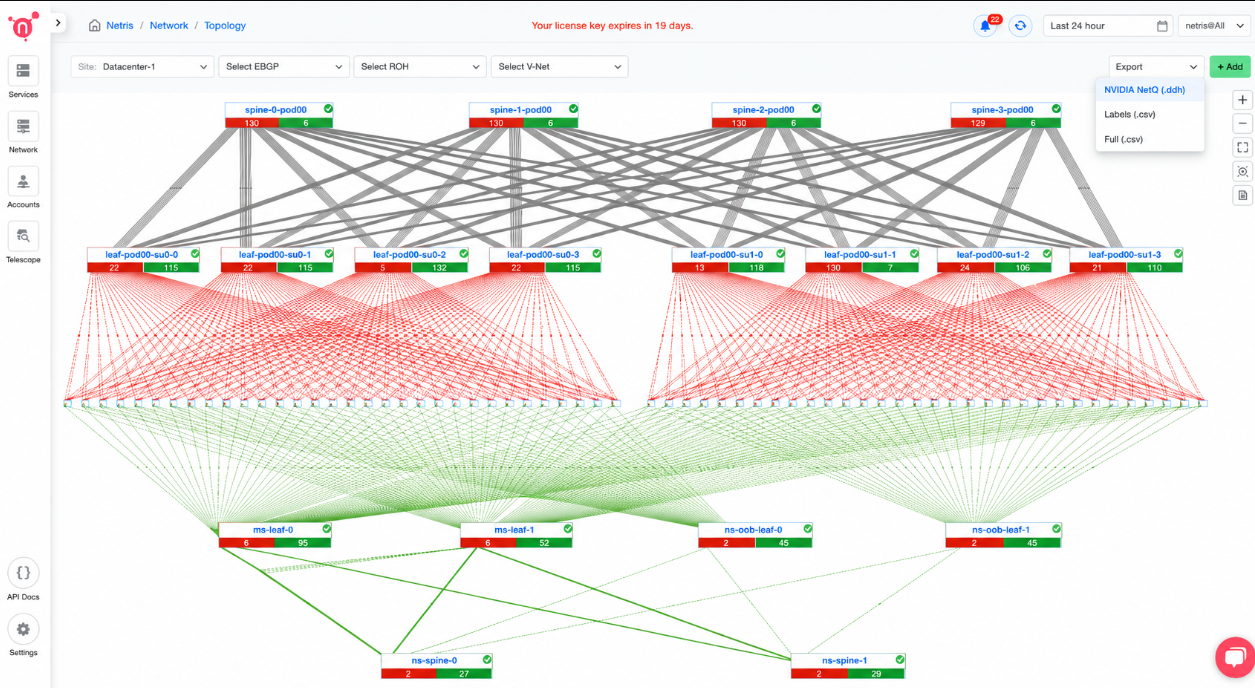

  1.Log in to the Netris Controller
     In the main navigation menu, go to Network -> Topology

 2.From the dropdown menu, select the option NVIDIA NetQ.

 3.The web browser will automatically download a file named something like netq-topology.dot.         this      file in an easily accessible location




Info
4.2 Step 2: Upload Blueprint to NVIDIA NetQ

Now, please upload the downloaded .dot file to your NVIDIA NetQ platform to activate the new topology.

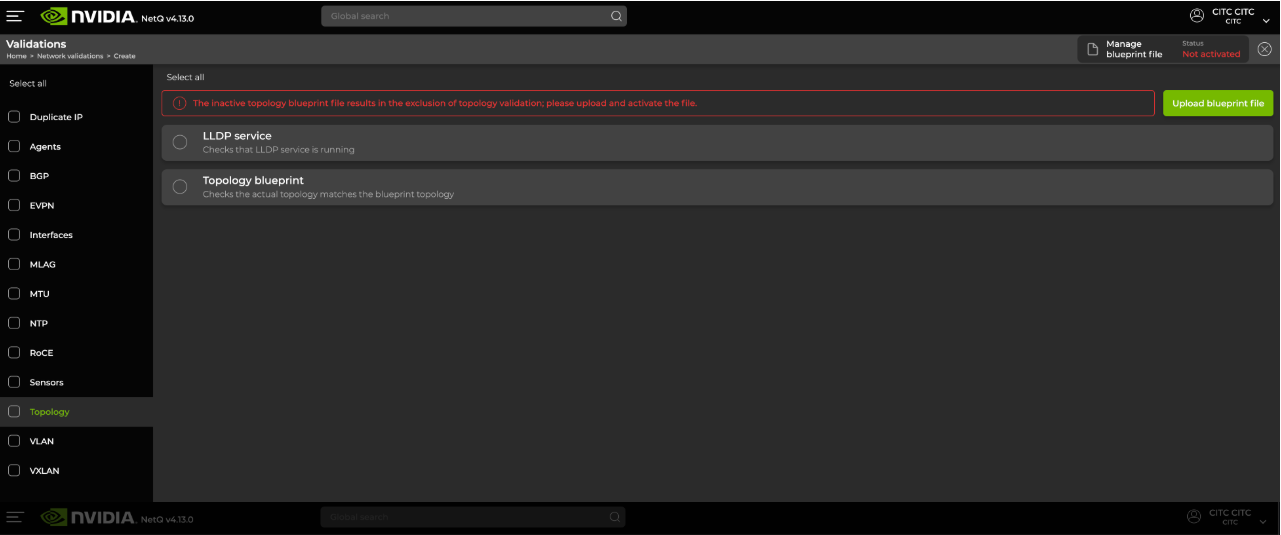

1.Log in to the NVIDIA NetQ dashboard.In the NetQ navigation menu, go to the Validation section

2.Click on Create a validation or the equivalent button to start a new validation job.

3.Configure the validation job: Set the target to Run on all switches. Select the validation type as            Topology. Look for an option to Upload Blueprint file (or similar wording, such as "Upload topology file"). Click this option and select the .dot file that downloaded from Netris.


Info

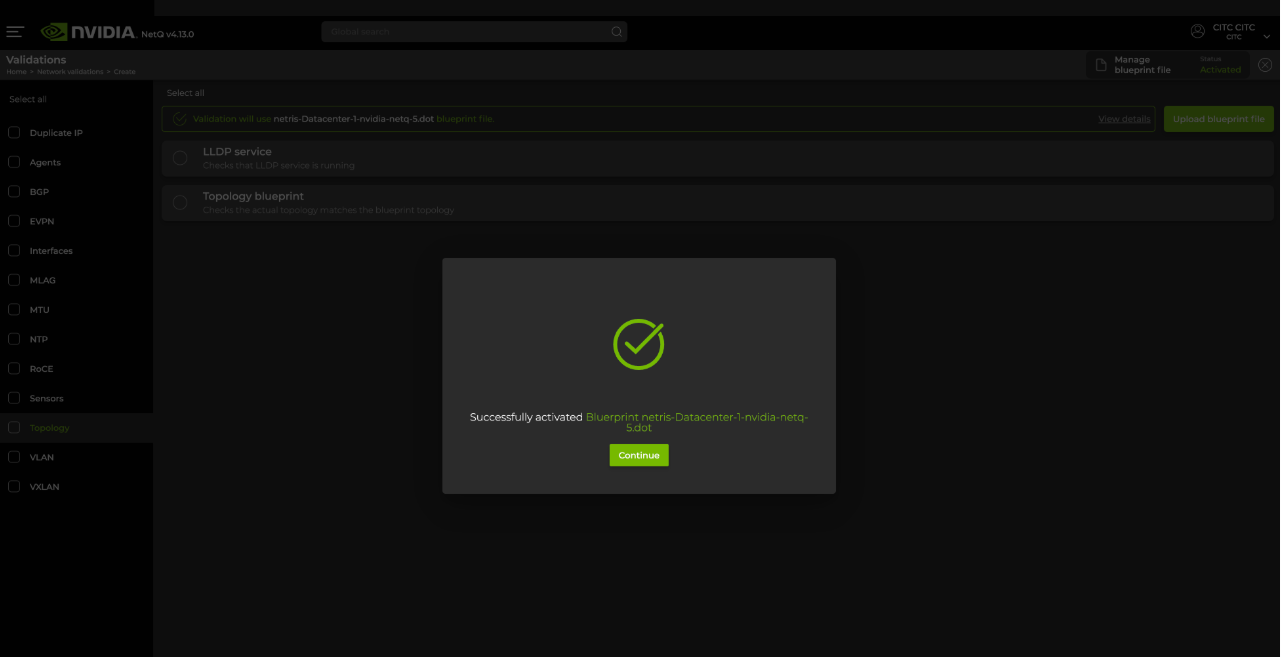

4.3 Step 3: Verify Successful Activation Once the validation completed.
Check the validation results for a message indicating "Blueprint successfully activated" .



5.Conclusion

  1. Netris handles automated network provisioning and configuration tasks. NetQ delivers real-time telemetry, analytics, and validation capabilities
  2. NetQ delivers real-time telemetry, analytics, and validation capabilities.
