KB 410192 - How to configure NTP Server on Mellanox Infiniband QM9700 Switch

KB 410192 - How to configure NTP Server on Mellanox Infiniband QM9700 Switch

Overview

Configuring NTP (Network Time Protocol) ensures that the QM9700 switch maintains accurate system time. This is critical for logging, monitoring, and coordination with other devices in the fabric.



Prerequisites

  • Access to the QM9700 switch Web UI (management IP should be reachable via browser)

  • Valid NTP server IP addresses or domain names

  • Admin credentials for the switch

Steps to Configure NTP

  1. Log in to the Web UI

    • Open a browser and navigate to the management IP of the QM9700 switch.
      Example: https://<switch-management-ip>

    • Enter the admin username and password to log in.

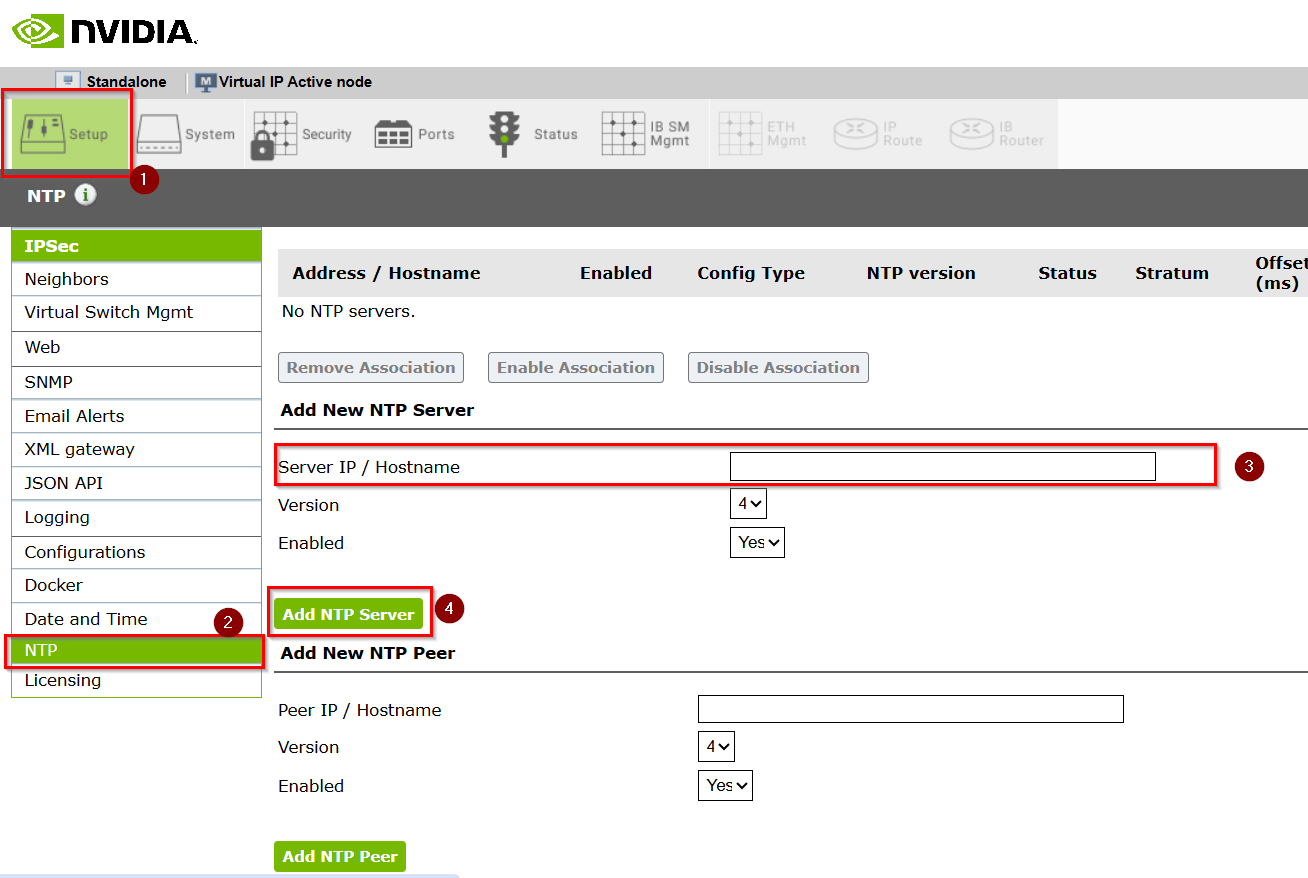

  2. Navigate to the NTP Configuration

    • From the main menu, select the Setup tab.

    • In the Setup submenu, select NTP.

  3. Add NTP Server

    • In the NTP configuration page, click the Add button or the + icon to add a new NTP server.

    • Enter the IP address or FQDN of the NTP server.
      Example: 0.pool.ntp.org

    • Click Apply or Save to add the server to the configuration.

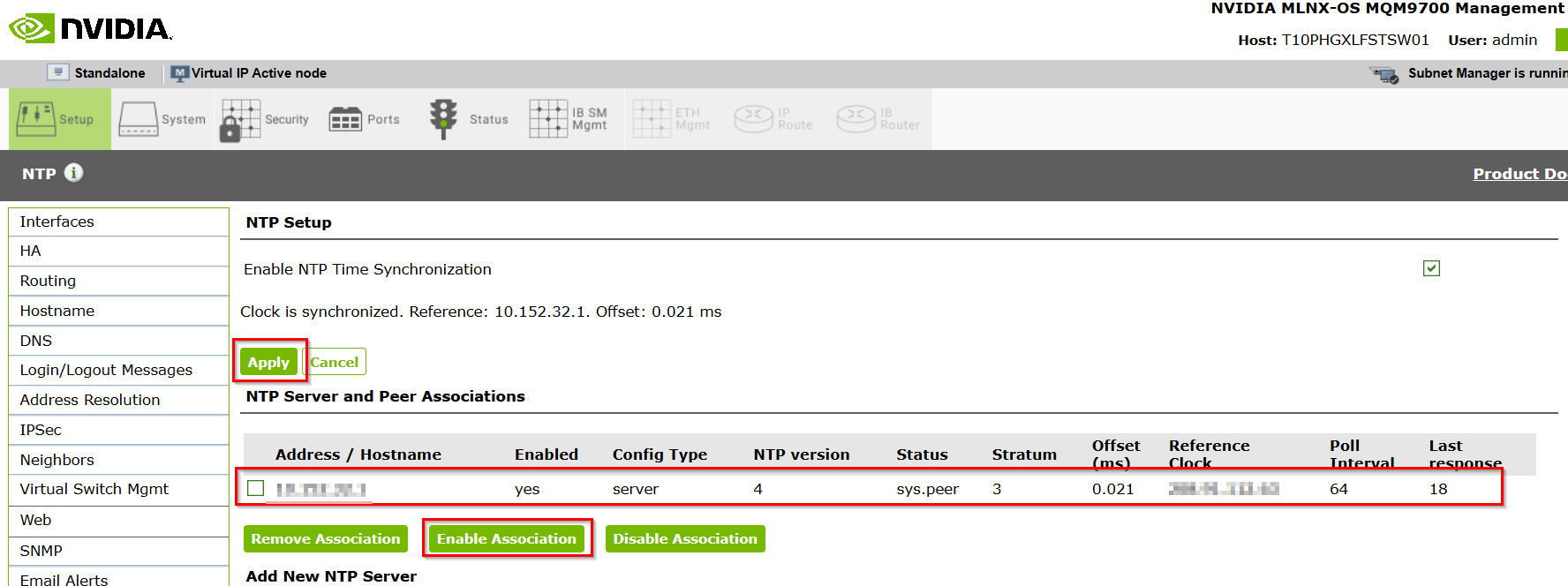

  4. Verify Configuration

    • Once the server is added, ensure it appears in the list of configured NTP servers.

    • You may check synchronization status after a few minutes to verify that the switch is correctly syncing with the NTP server.
