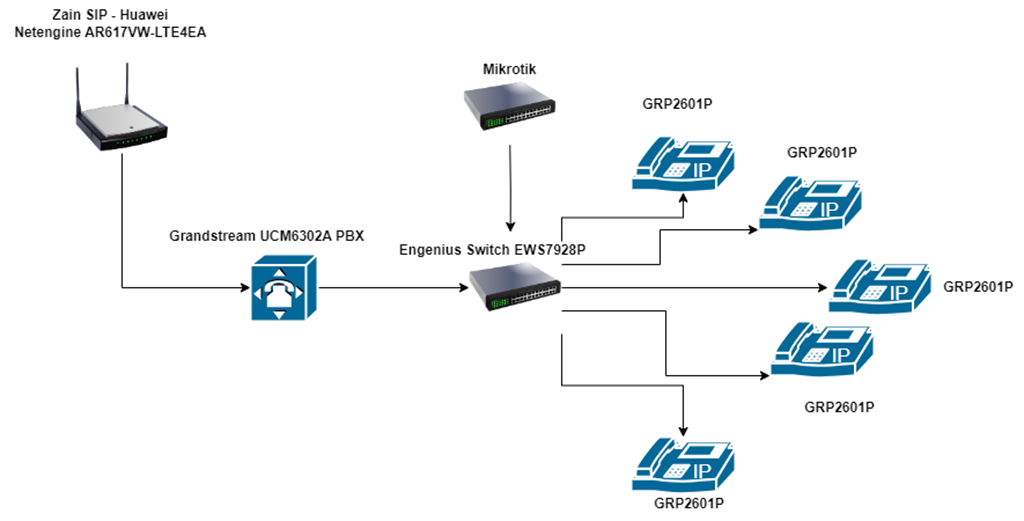

High Level Diagram



Configure Grand stream UCM6302A (IPPBX)

Network Configuration

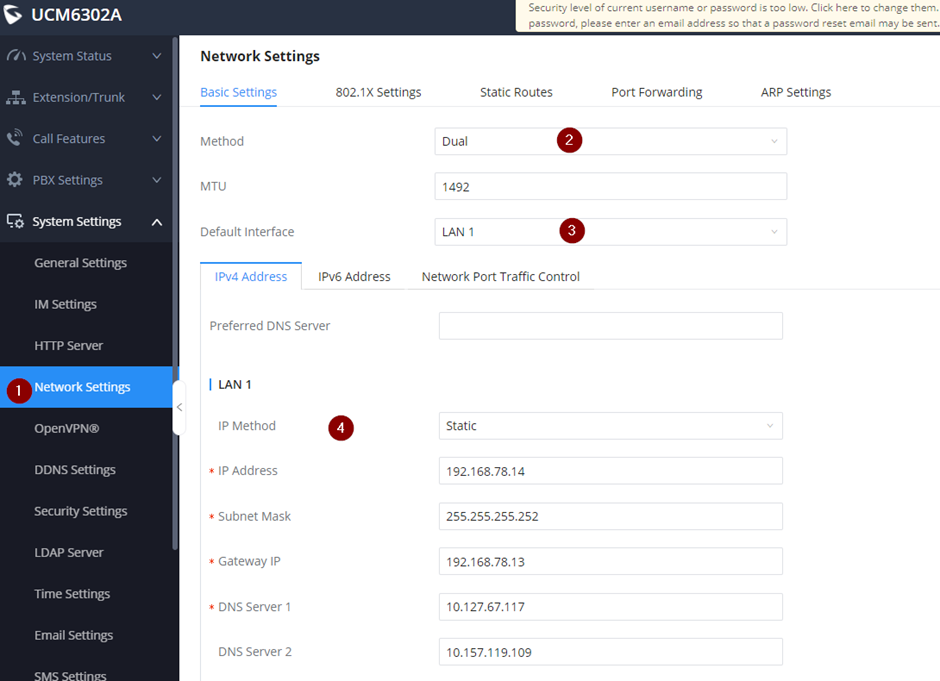

  1. Navigate to Network Settings
  2. Select the Method as Dual
  3. Select Default Interface as LAN
  4. Type the network details as below for WAN port
    1. IP Method: Static
    2. IP Address: 192.168.78.14/30
    3. Gateway IP: 192.168.13
    4. DNS Server 1: 10.127.67.117
    5. DNS Server 2: 10.157.119.109

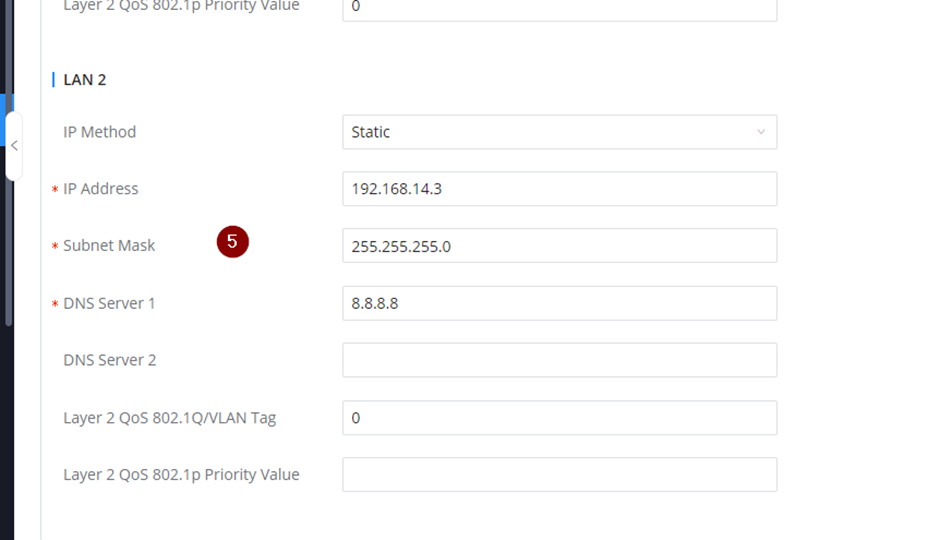

  5. Type the network details as below for LAN port
    1. IP Method: Static
    2. IP Address: 192.168.14.3/24
    3. DNS Server 1: 8.8.8.8

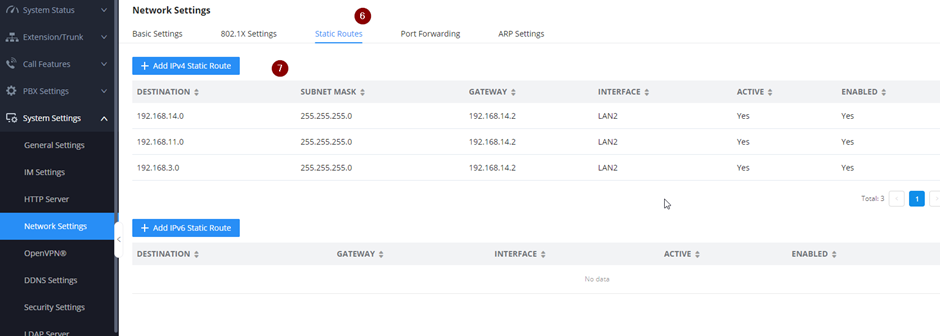

  6. Click on Static Routes to add the static routes
  7. Click on Add IPV4 Static Rote
    1. Destination: 192.168.14.0
    2. Gateway: 192.168.14.2
    3. Interface: LAN2



Adding SIP Trunk

  1. Navigate to VOIP Trunks through Extension/Trunk
  2. Add SIP Trunk with the Type as Peer
  3. Type the IP Address with Port number in Host Name
  4. Select the Transport as UDP
  5. Select the TEL URL as User = Phone

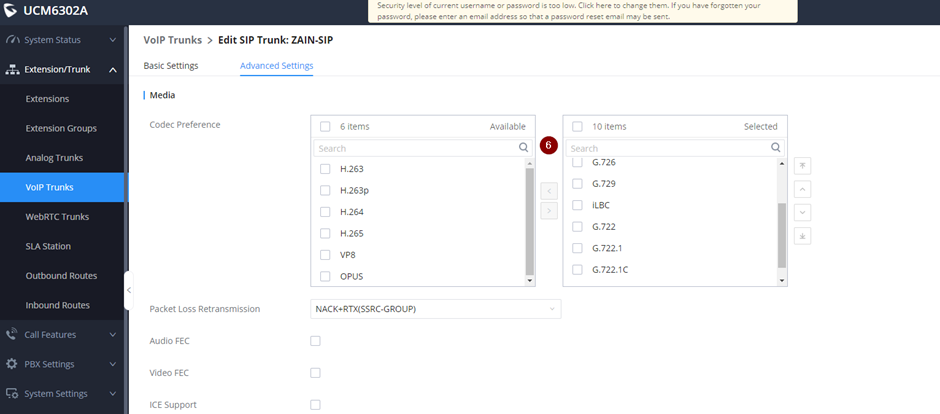

  6. In the Advanced Settings, Select all the G series and iLBC Codecs

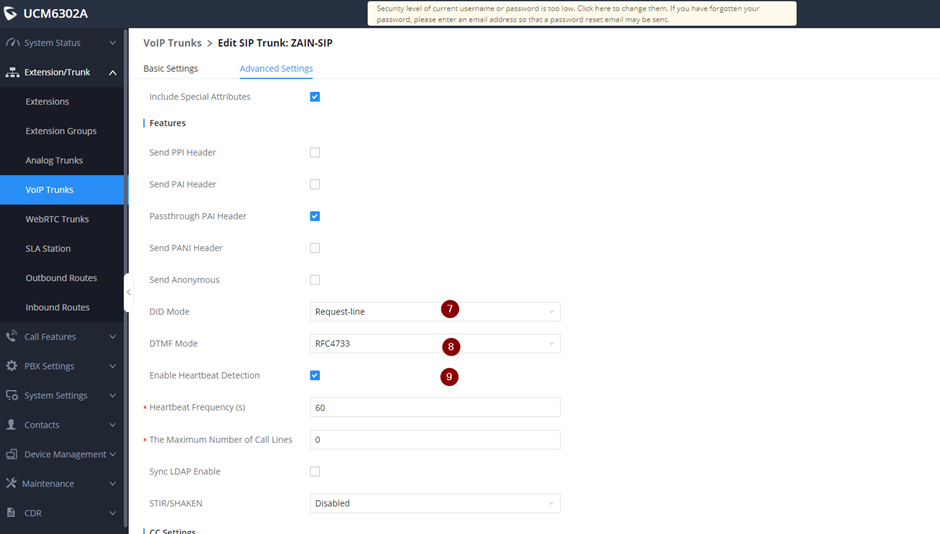

  7. Select the DID mode as Request-line
  8. Select the DTMF Mode as RFC4733
  9. Enable the Heartbeat detection

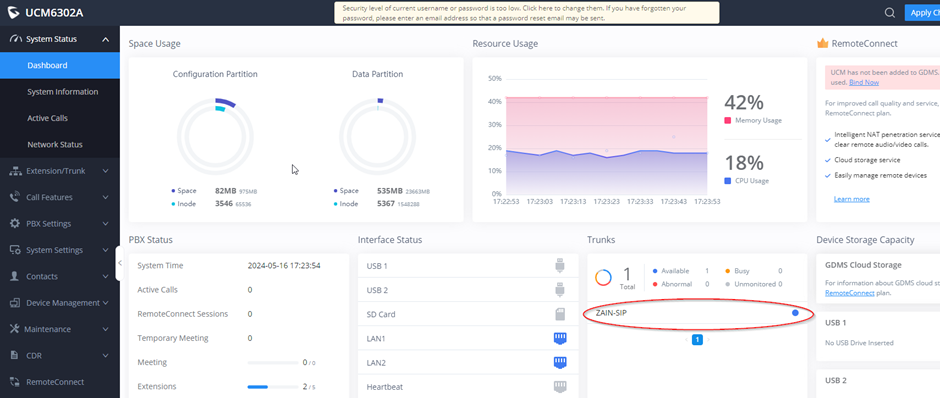

 Check the SIP line is active or not in Dashboard (if Blue-Available)
