Creating Wi-Fi Heatmaps using EnGenius ezWIFI Planner
What is a Heat map?
A Wi-Fi heat map is a visual representation of the invisible wireless signals that are used to deliver Wi-Fi. The Wi-Fi heat map is produced using specialized software to visualize RF coverage within a given space. In simple terms, the Wi-Fi heat map will show the signal strength and quality throughout a space to verify that the Wi-Fi design is effective and optimal to support the use of wireless devices and applications.
Steps to follow generating a Heatmap:
Understanding the requirement
Getting layout
Analyzing the Interior and exterior
Analyze the building.
1.Single floor
2.Multi-floor
3.Campus (indoor and outdoor)
4.Warehouse
5.Obtain digital floor plans.
Steps to generate Heatmap in EnGenius portal:

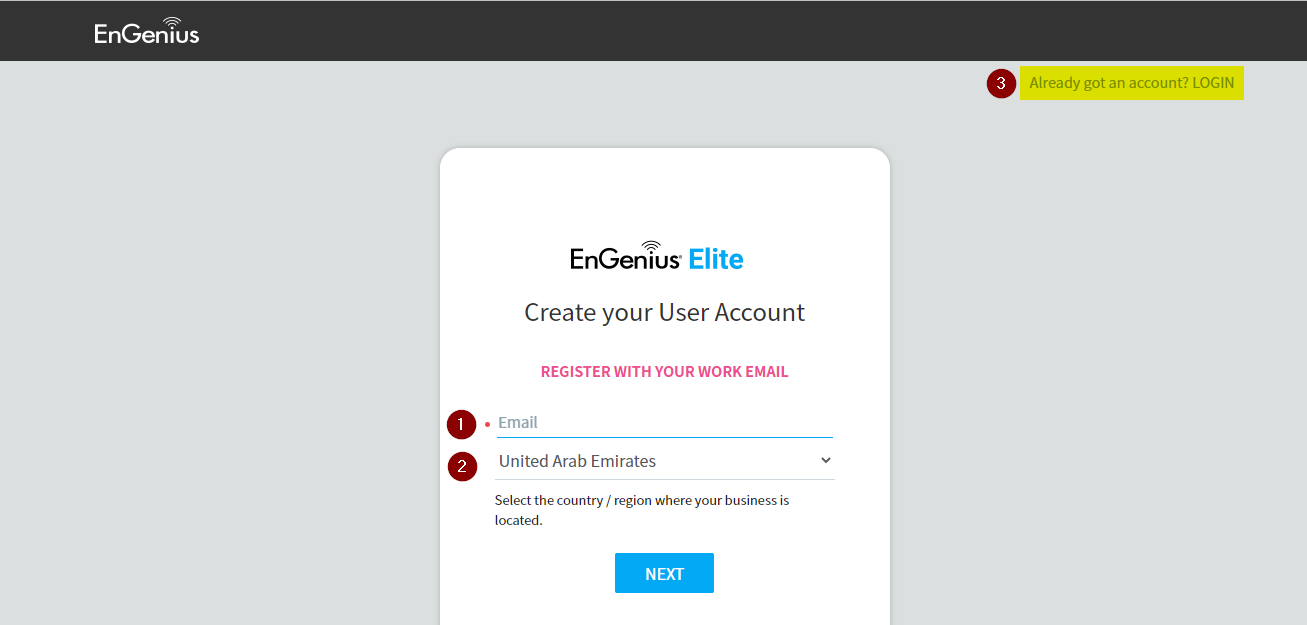

2.Follow the steps for Login or Sign in

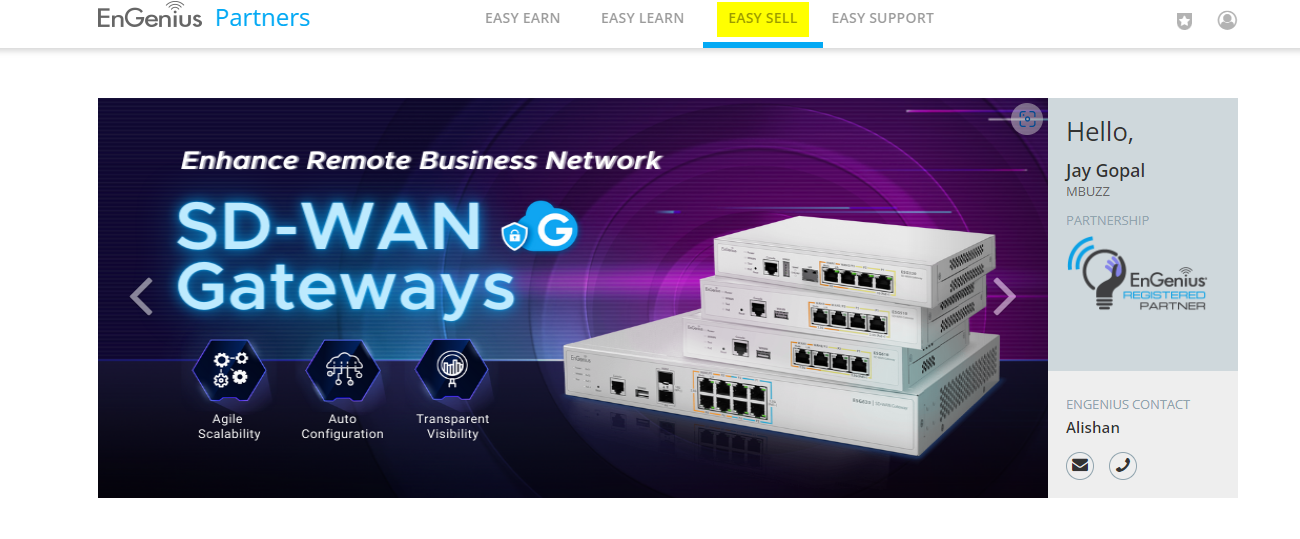

3.Once entered in to the EnGenius portal, Select the EASY SELL and then Select ezWiFi PLANNER

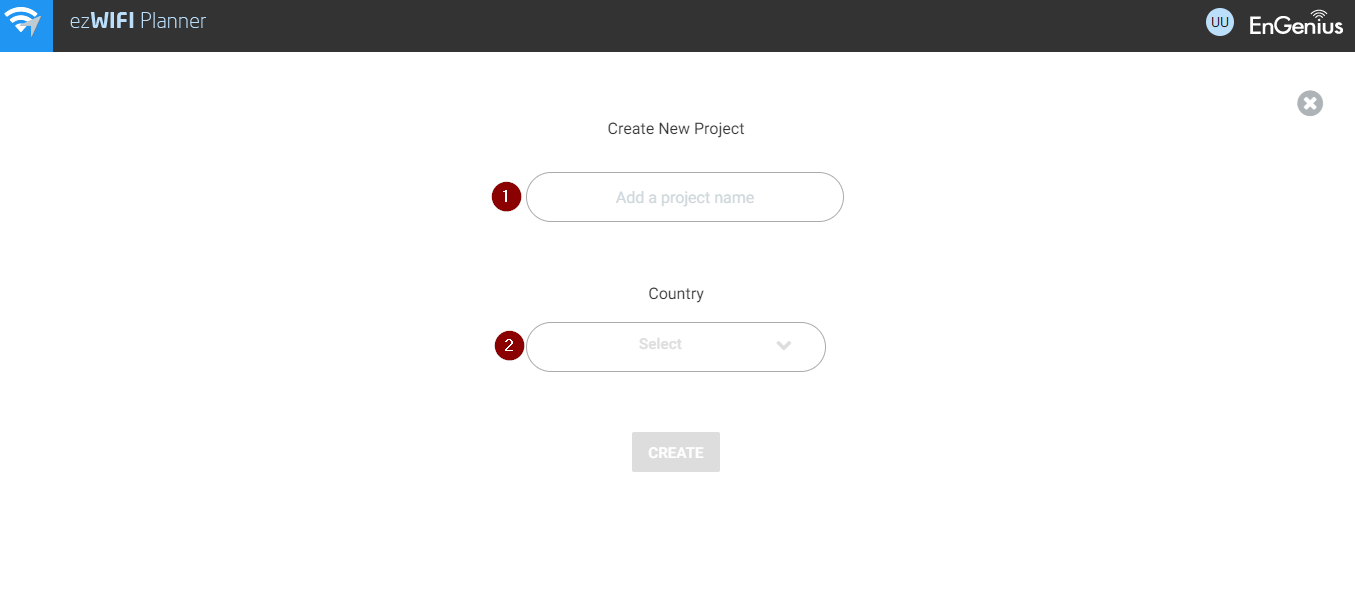

4.

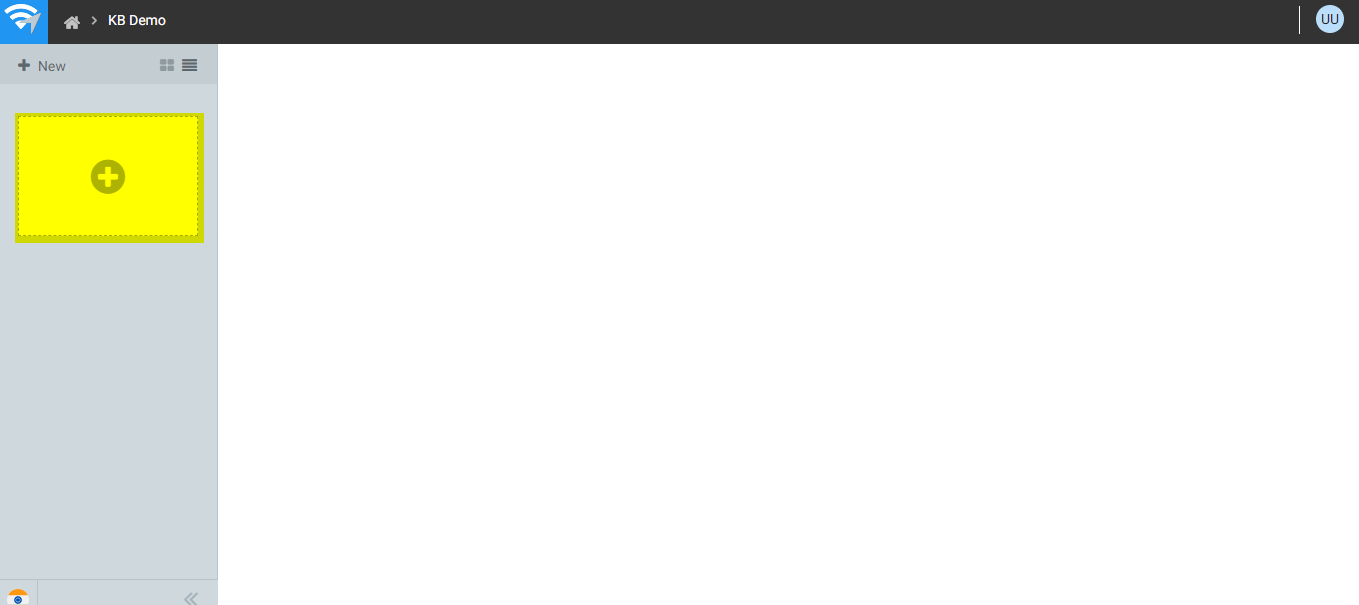

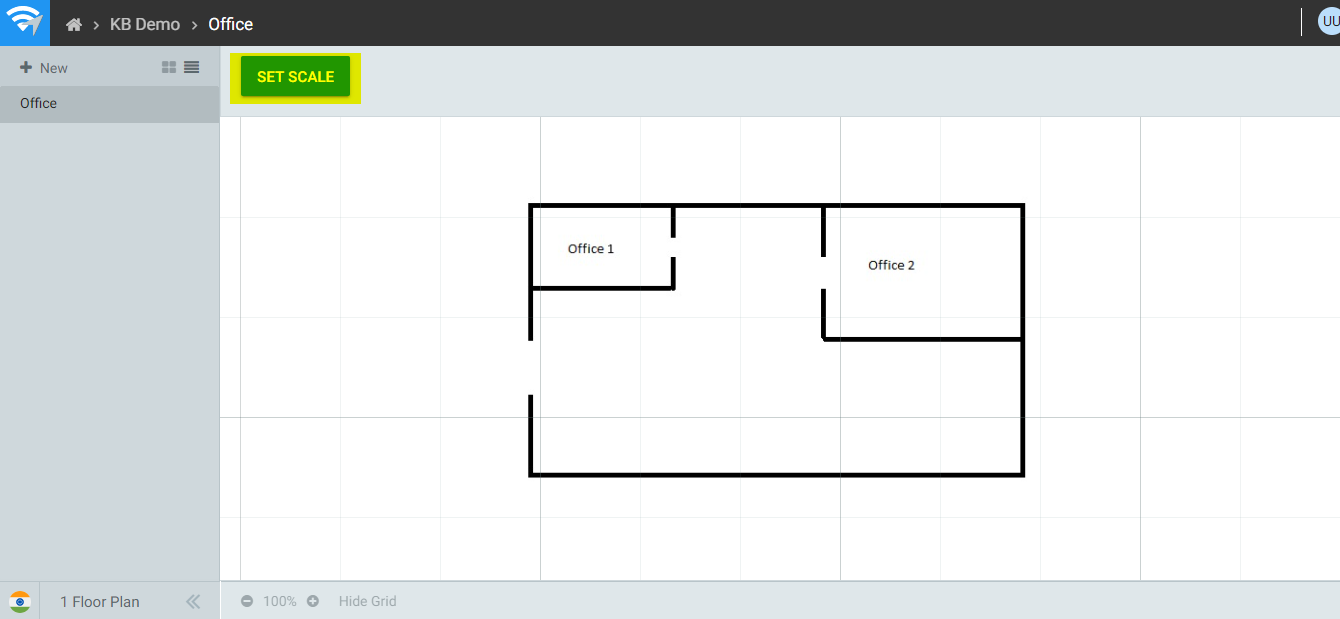

6.Add the Layout of the project in left top as shown in below image.
7.After including the layout, Set scale length in the layout (Example 120Mtr x 80mtr).

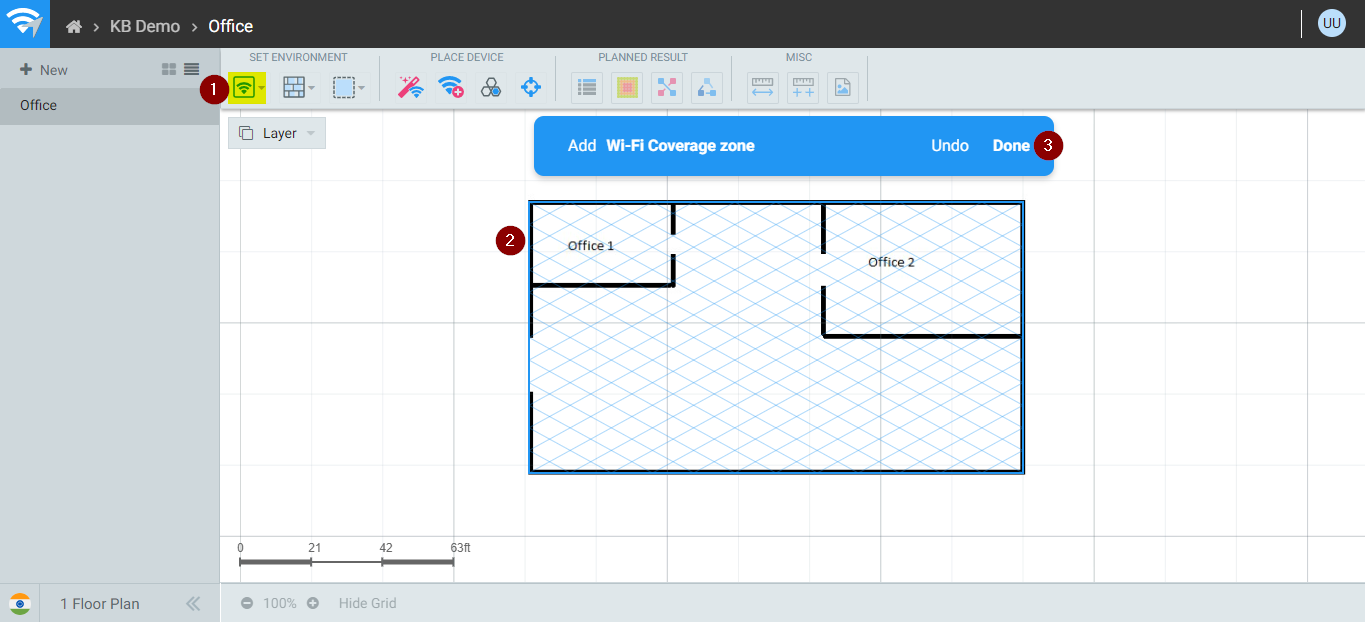

8.Select Wi-Fi Coverage Zone from Wi-Fi zone pull down menu. Follow pointer 1,2,3.
9.Select obstacles from the pull-down menu and select any one of the obstacles as per requirement. (Obstacles should have to select as per exact client's buildings material)

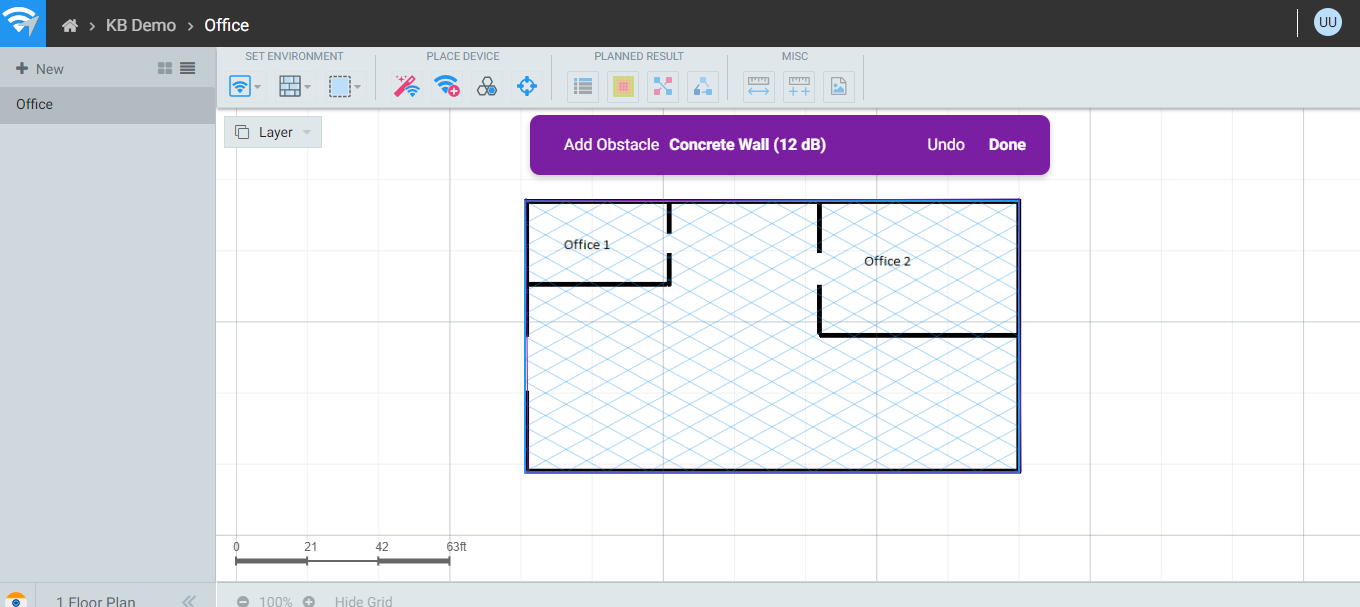

10.Draw the obstacles over the walls and click "Done."

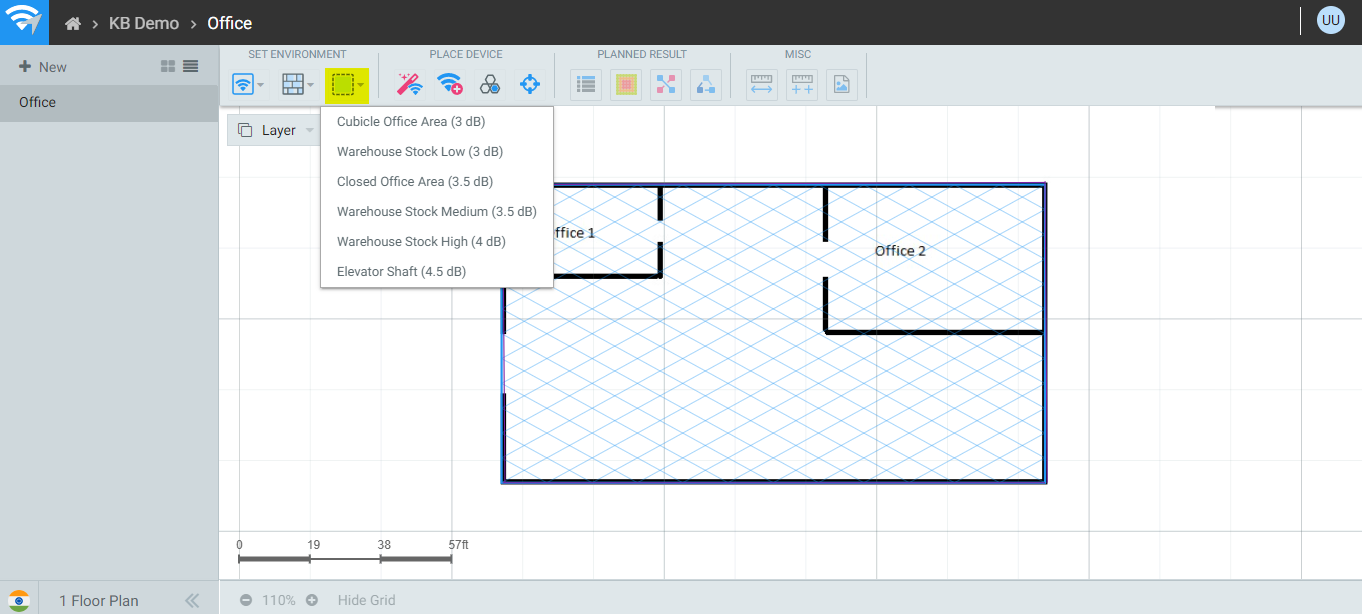

11.Select Area option to mention the access point required locations are of which type, and select the dB (Optional)
(dBm (decibel-milliwatts) a standard unit of measurement to use measuring wi-fi signal strength or power)

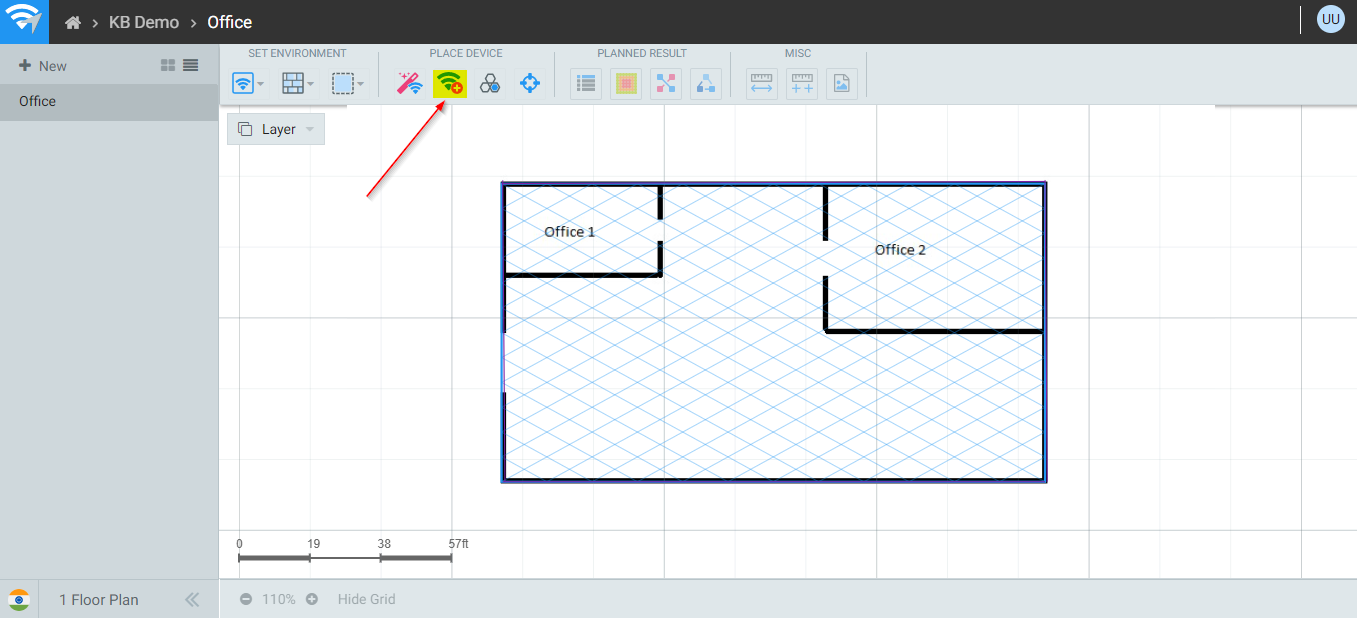

12.Select Add AP to add the AP's in the layout as per the required area.

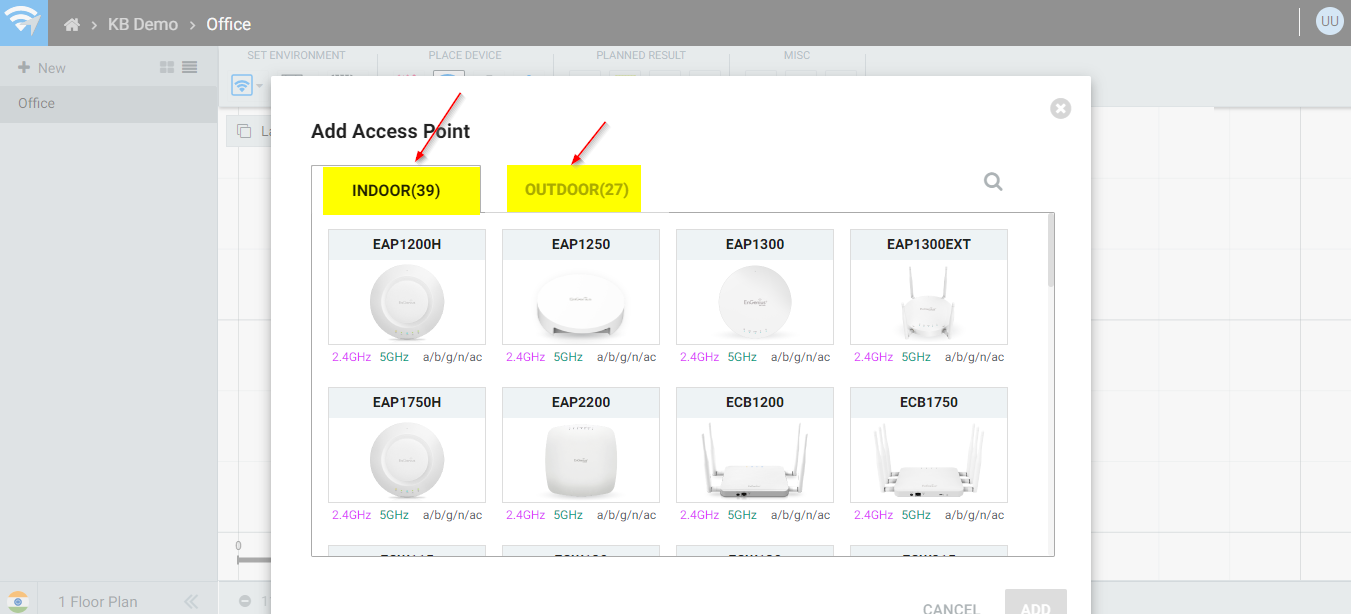

13.Select the AP's from the list , Indoor or Outdoor as per the requirement.

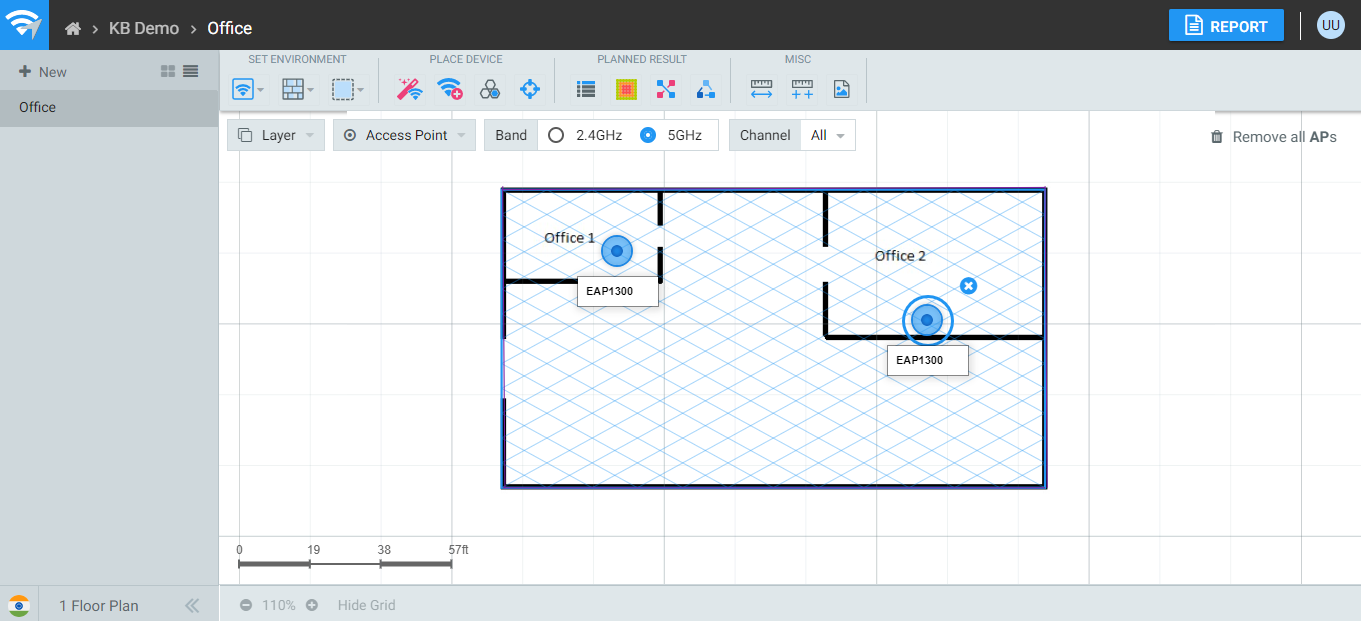

14.Add and drop the selected APs in the required area and select "Done."

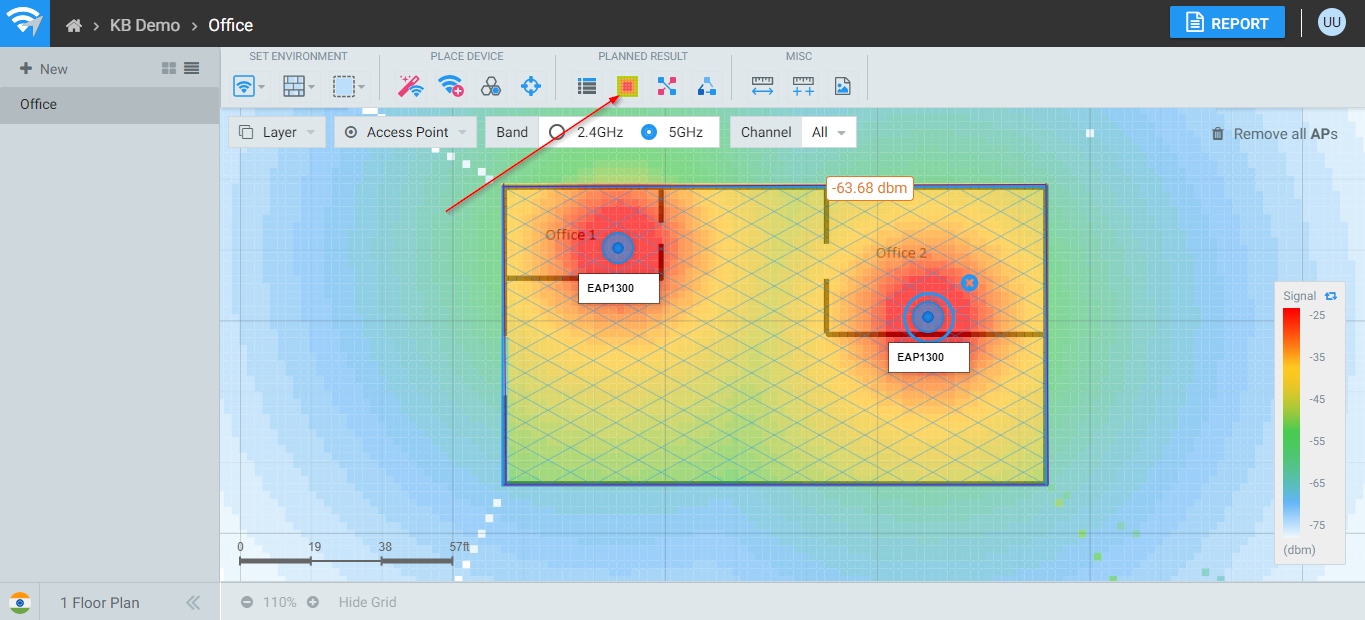

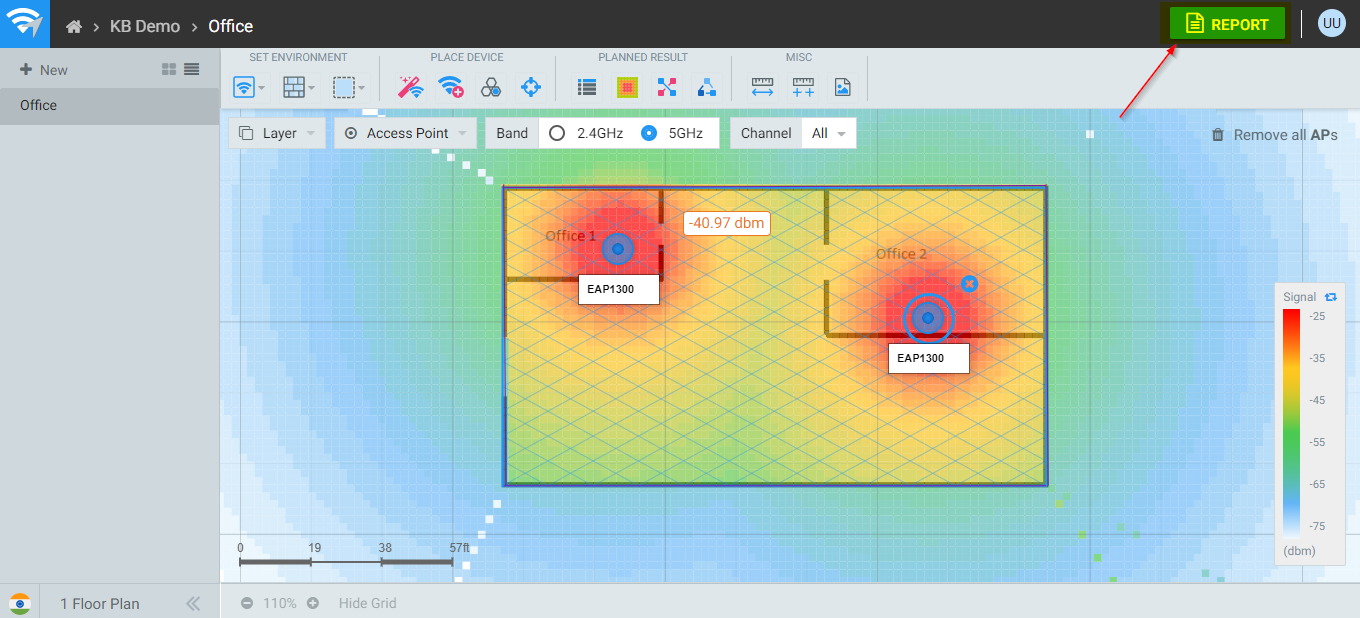

15.After adding the AP's, Select the Heatmap option to generate.
16.Then Select the "REPORT" option to generate a report, Fill the client details and details in required field to generate a proper "REPORT."
