Fiber Optic Bend Radius Measurement and Compliance
1. Purpose
This article
outlines the procedure for verifying that installed fiber optic cables comply
with minimum bend radius requirements. Proper verification prevents signal
degradation, ensures optimal optical performance, and protects the physical
integrity of the fiber infrastructure.
2. Understanding Fiber Bend Radius
The minimum bend radius is the sharpest curve a fiber optic cable can safely handle without causing signal loss or permanent mechanical damage.
When a fiber cable is bent past its framework limit, light leaks out of the fiber core into the cladding (macrobending), or microscopic imperfections stress the glass (microbending).
2.1 The Consequences of Excessive Bending
- Increased Insertion Loss (IL): Higher reduction of signal power at the bend point.
- Higher Return Loss (RL): Increased signal reflection back toward the source.
- Signal Attenuation: Drastic drops in data transmission speeds and network reliability.
- Physical Damage: Micro-cracks, fiber breakage,
and drastically reduced cable lifespan.
3. The Golden Rules of Bend Radius Calculation
| Cable State | Industry Formula |
| Under Tension (During Installation/Pulling) | 20 times of the Cable Outer Diameter |
| Without Tension (Long-Term/Post-Installation) | 10 times of the Cable Outer Diameter |
Note: Always cross-reference these general rules with the manufacturer’s
specific datasheet, as specialized armored or high-count ribbon cables may
require larger radius.
4.
Bend radius measurement procedure
Identify visible bends.
Locate the tightest bend section.
Check the cable diameter from the datasheet
Measure the bend radius using - Customized bend radius template

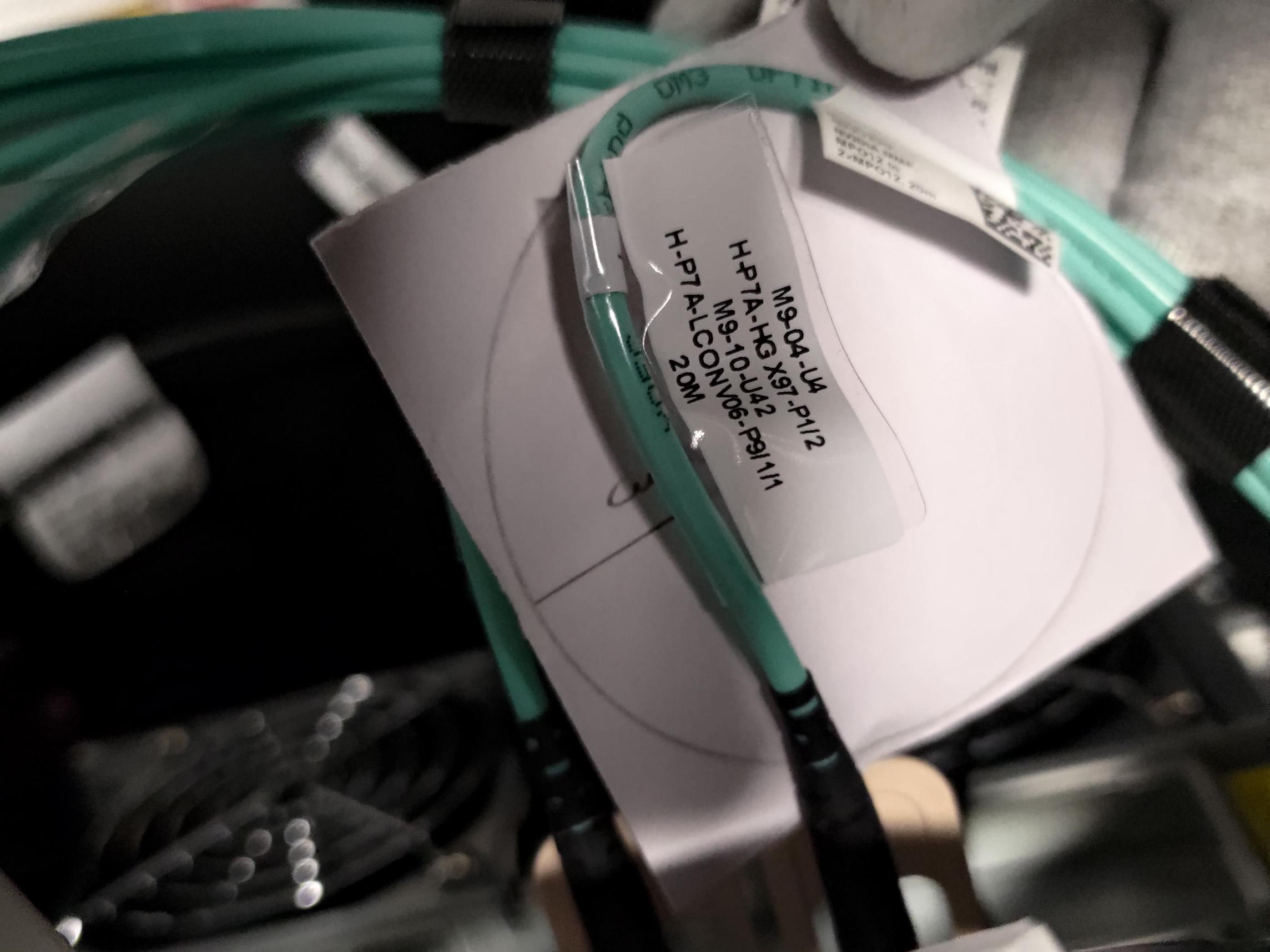

Note: The fiber optic cable (3 mm diameter) bend radius was verified using a customized measurement template with a 30 mm radius circle, as shown in the image.
Compare the measured radius against the required minimum radius.
Record observations and take photographs.
Mark any non-compliant bends for corrective action.
