Asustor AS7112R NAS HDDs not detected

1. Customer contacted support saying HDDs 2,3,6, and 7 were not being detected after a power failure.

Unit was sent for repair to ASUSTOR and they replaced the backplane

Issue was still present after this replacement.

Solution:

1. Login as root in terminal with one hdd connected

>ssh root@192.168.XXX.XXX -p 22

2.       Confirm only one drive is connected

# toolbox nasstat -disk

# cat /proc/partitions

3.       Obtain path of connected drive

# cat /proc/partitions

Output will have only one listing that starts with sd

Then the path of the drive is /dev/sdX (X is whatever letter is shown in output)

4.       Proceed to erase the first 512M of the connected drive

# dd if=/dev/zero of=/dev/sdX bs=1M count=512

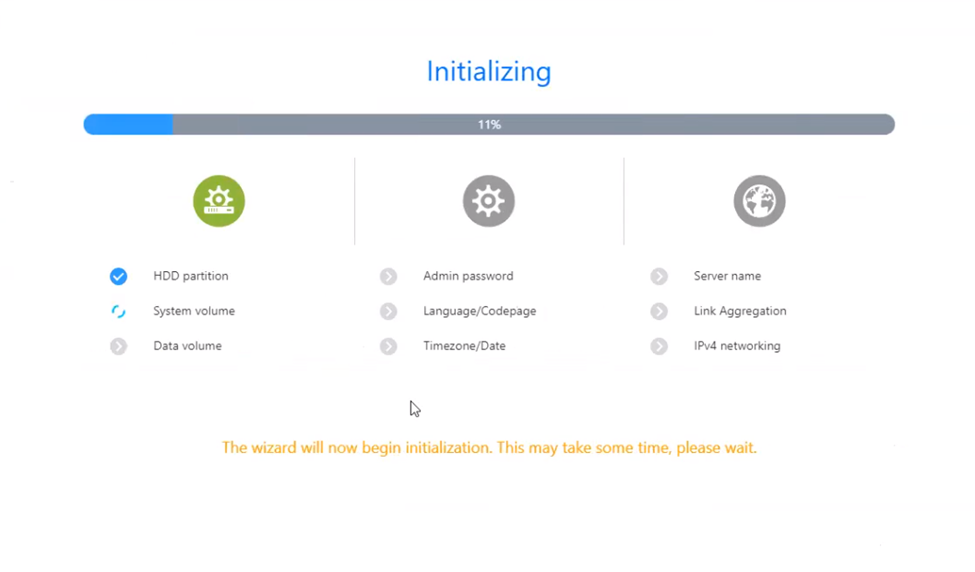

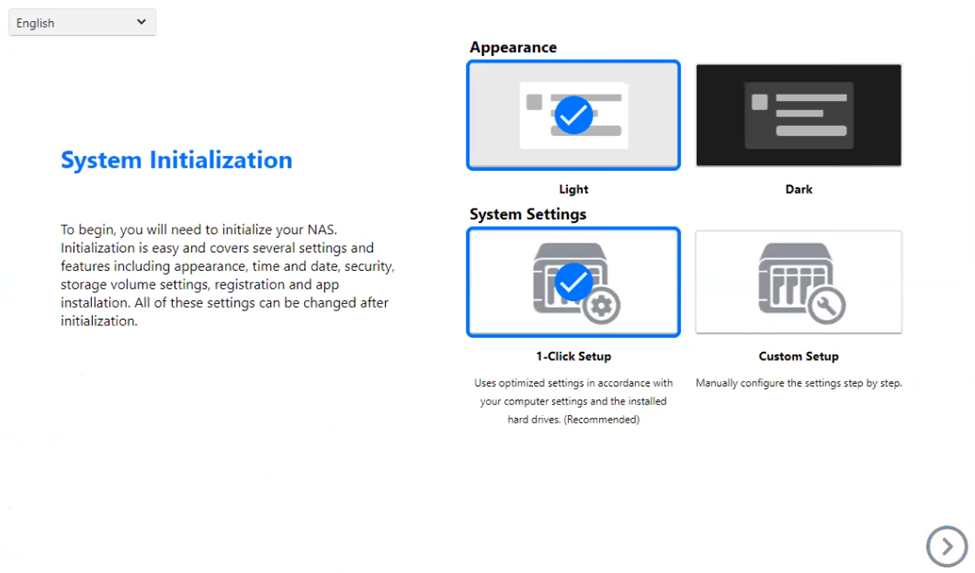

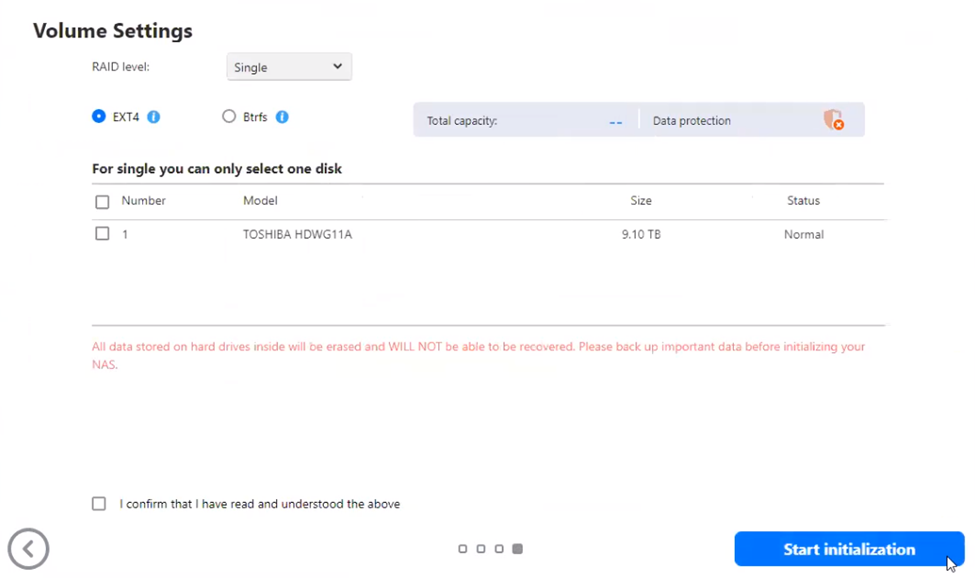

5. Perform GUI setup to initiate NAS

6. Once setup is complete, proceed to insert the remaining drives one-by-one

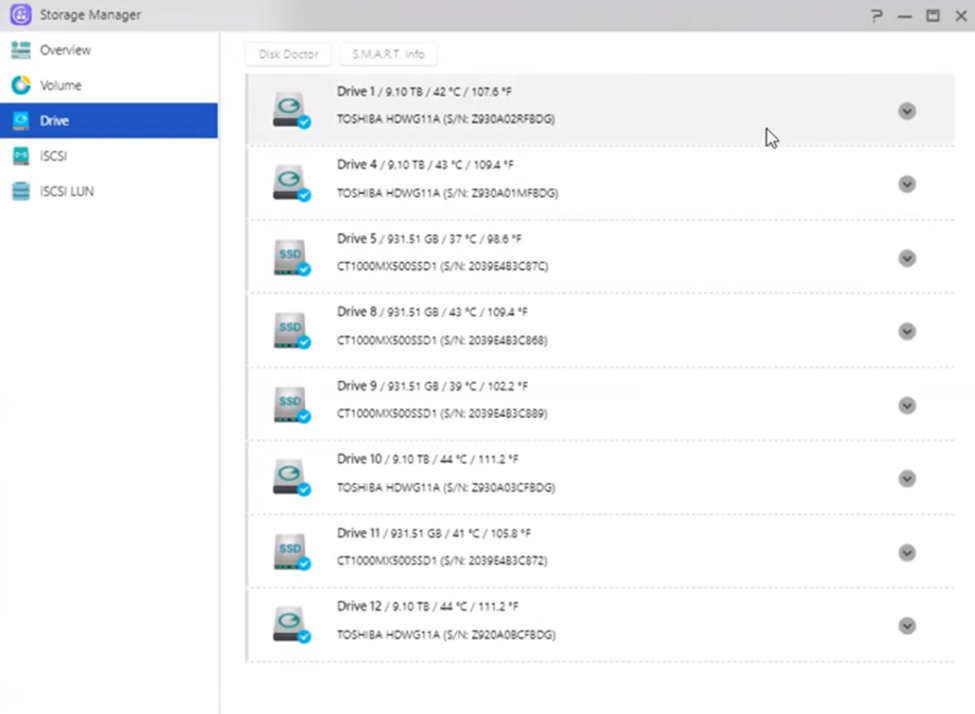

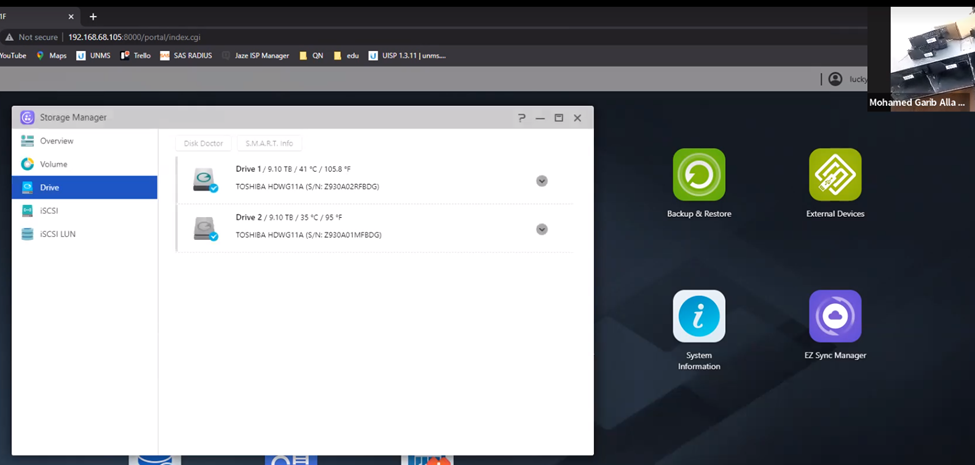

Every drives should show up under storage manager as you insert them.

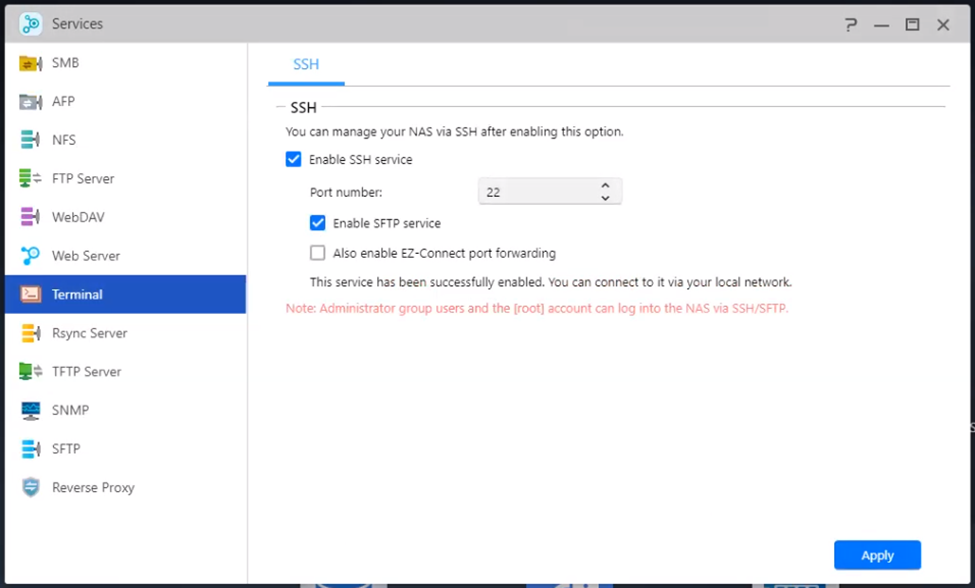

7. Enable SSH is GUI

8. SSH into the NAS

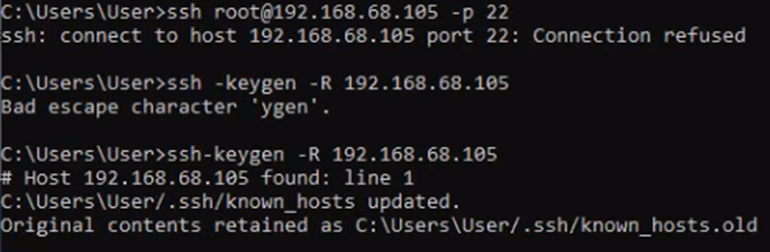

NOTE 1: you might have to reset ssh keys on host to connect again

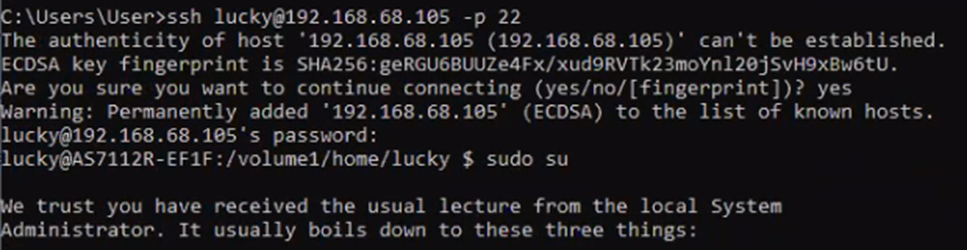

C:\Users\Mbuzz>ssh admin@192.168.1.210 -p 22

The authenticity of host '192.168.1.210 (192.168.1.210)' can't be established.

ECDSA key fingerprint is SHA256:o5CdFSzVDrNcGh6xKrrI3ZhEJAUePxCrf6JoAiI/jdI.

Are you sure you want to continue connecting (yes/no/[fingerprint])? y

Please type 'yes', 'no' or the fingerprint: yes

Warning: Permanently added '192.168.1.210' (ECDSA) to the list of known hosts.

Password:

admin@AS5304T-81A9:/volume1/home/admin $

NOTE 2: use the login that you made during GUI setup for ssh and escalate to "su" as shown:

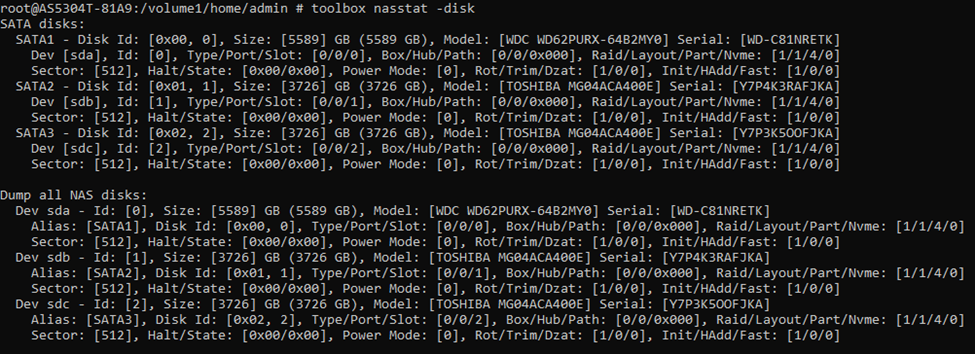

9. Double check if all drives are populated by running the following command

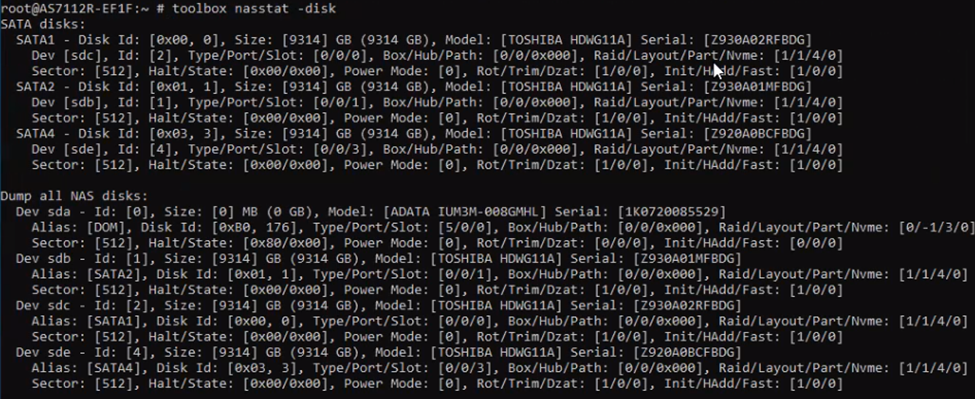

# toolbox nasstat -disk

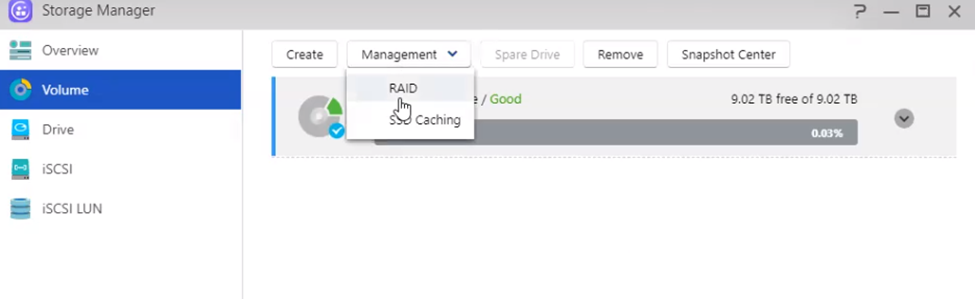

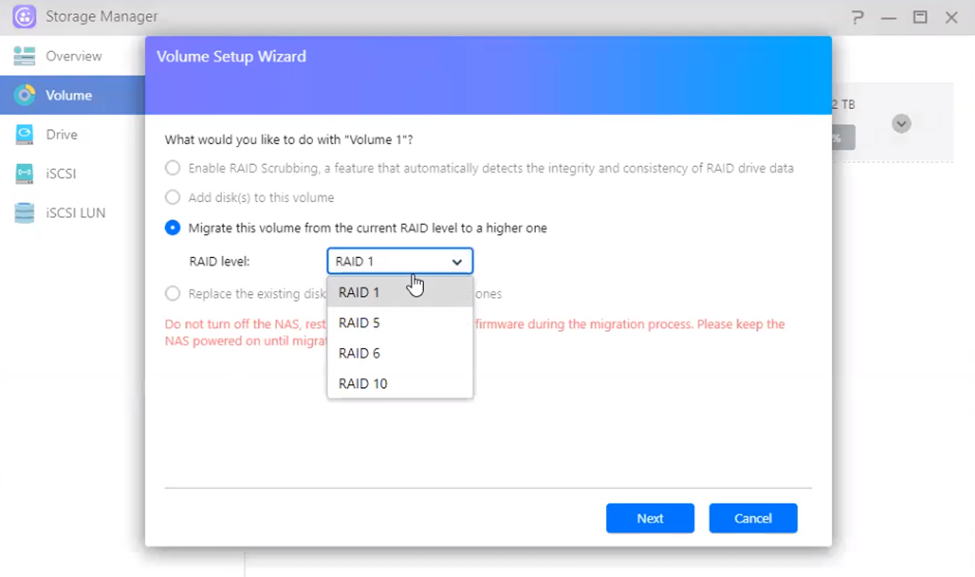

10. In the GUI migrate the first disk into the desired RAID configuration

NOTE: you can only move up raid configs (ie 1 to 5, 5 to 6 etc…)

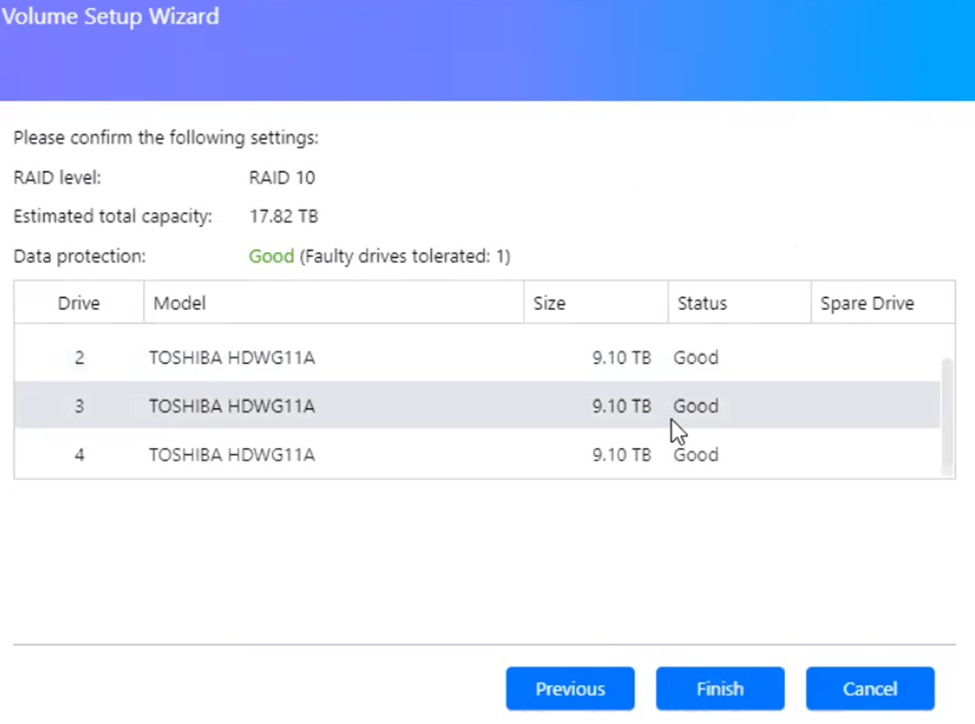

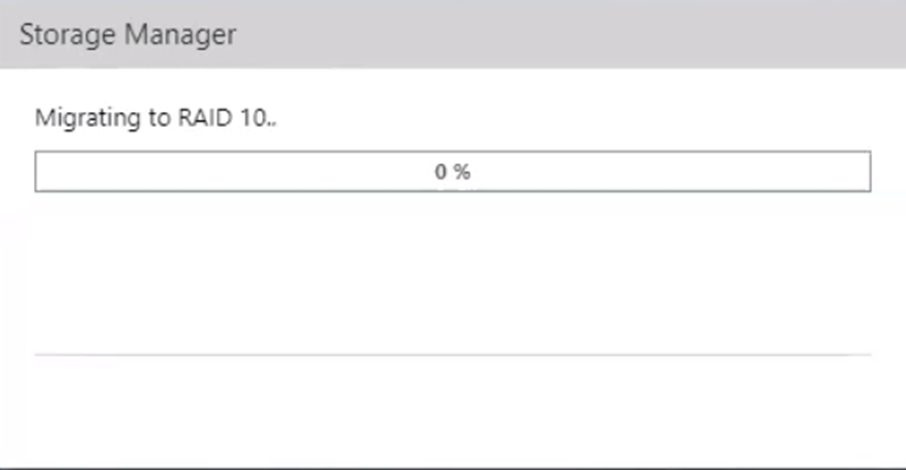

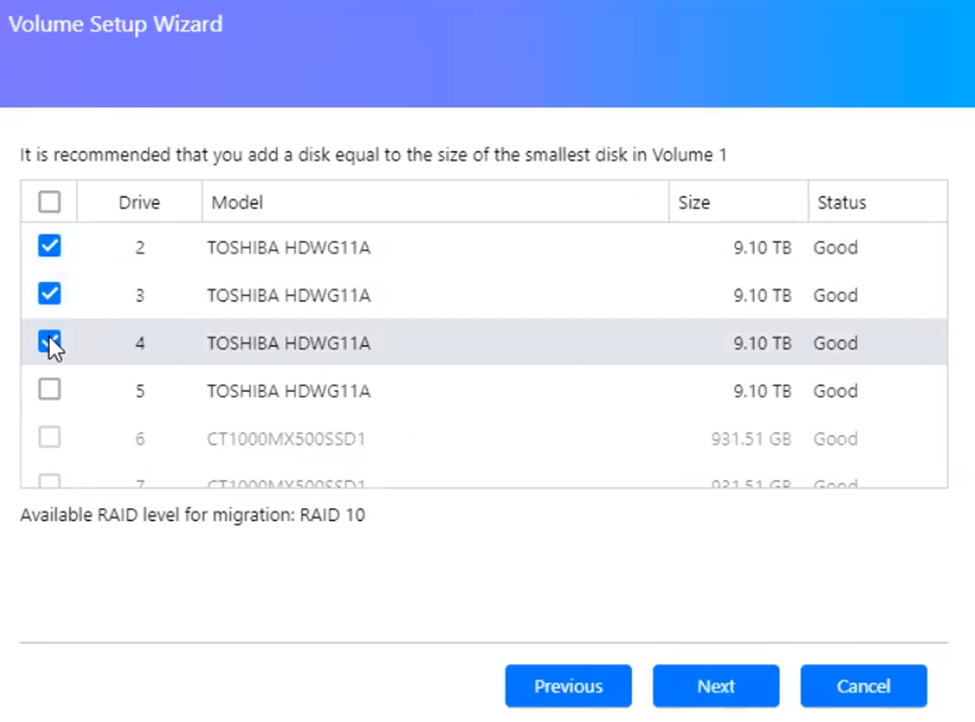

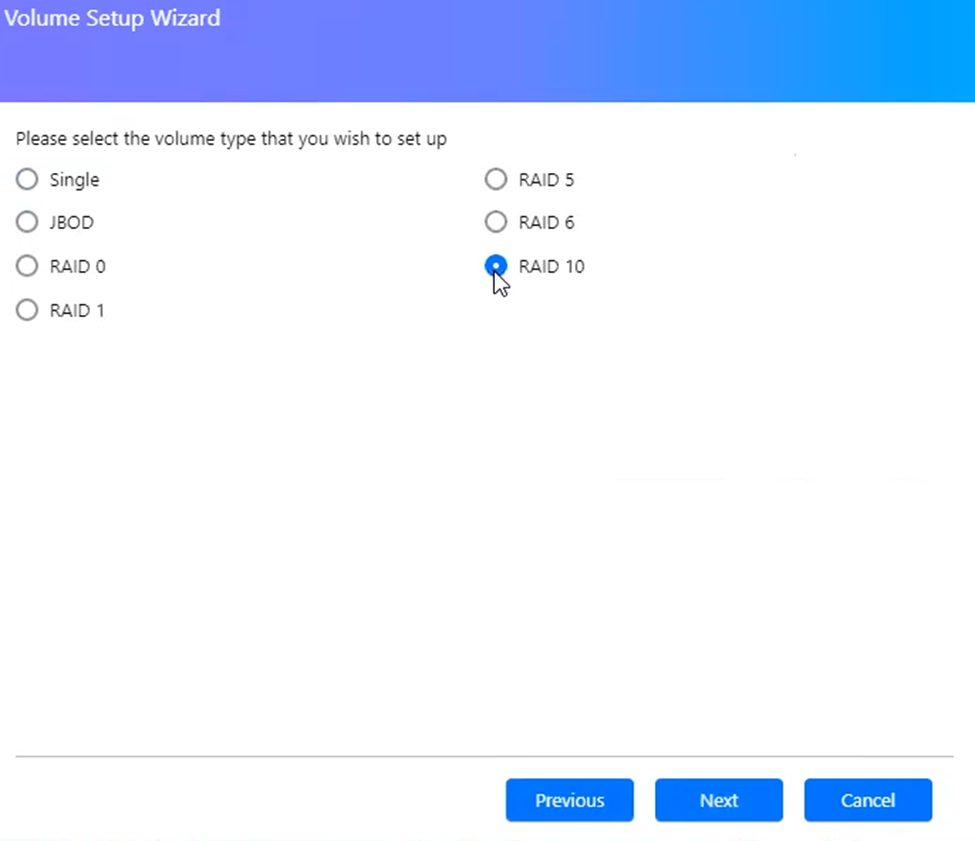

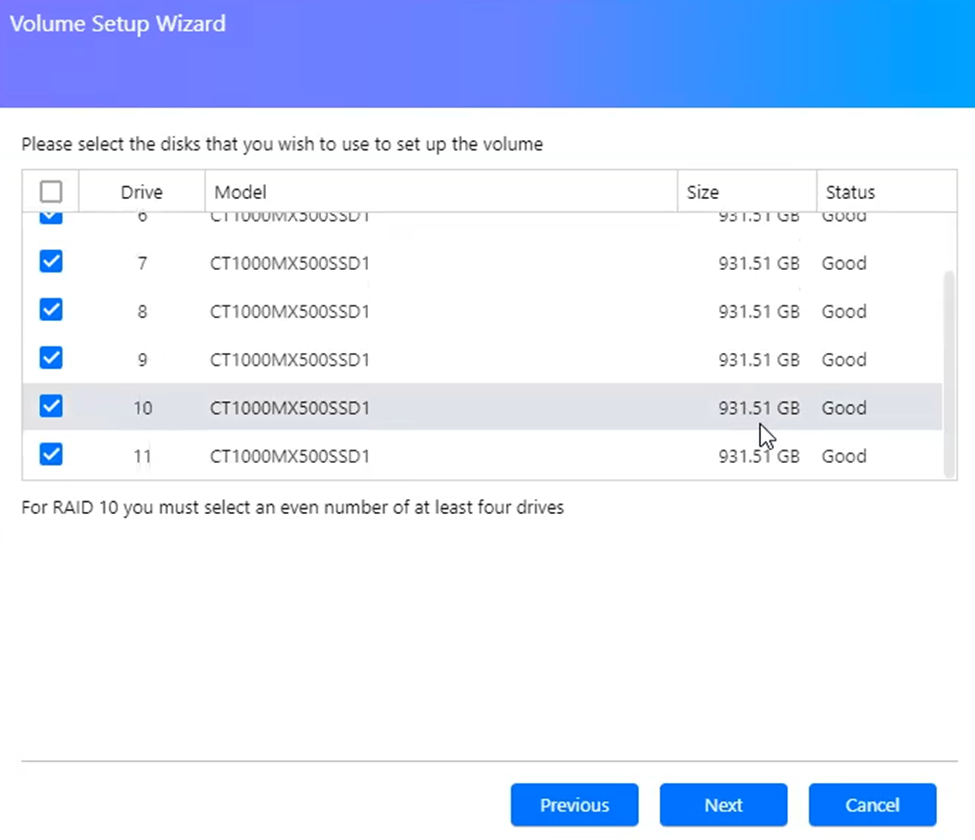

Following example is for making RAID 10 with 4 drives (1 is initialized & 2-4 is joined with it to make RAID 10)

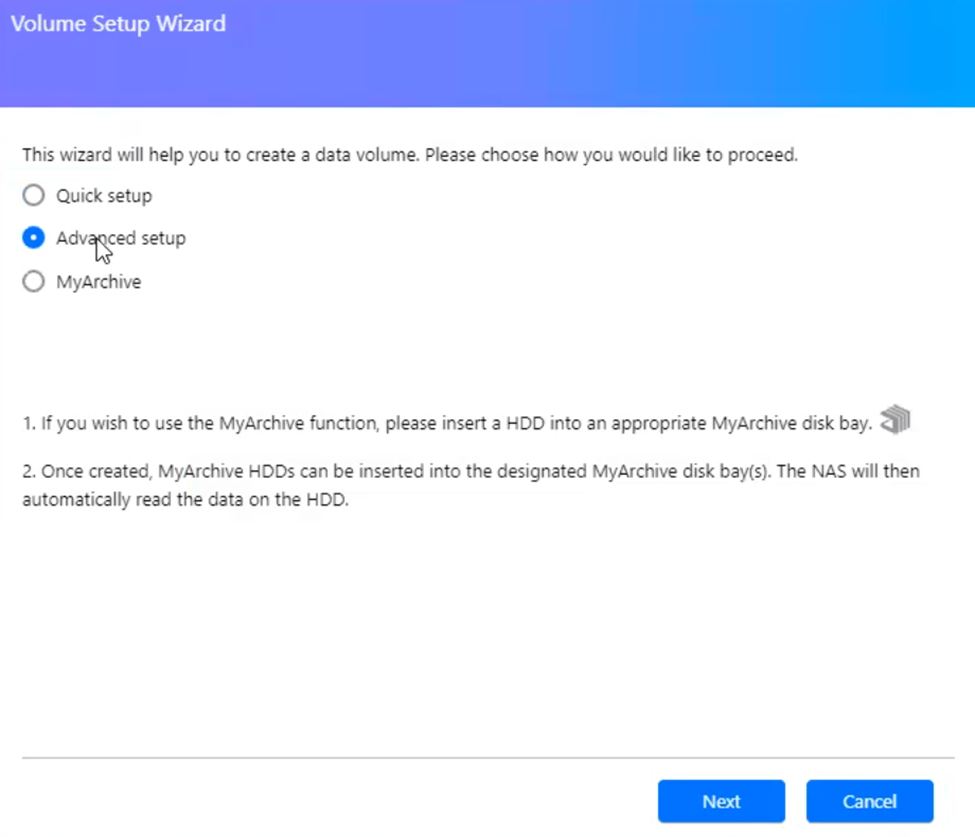

11. Create additional RAID partitions by going into:

Storage Manager -> Volume -> Create -> Advanced Setup

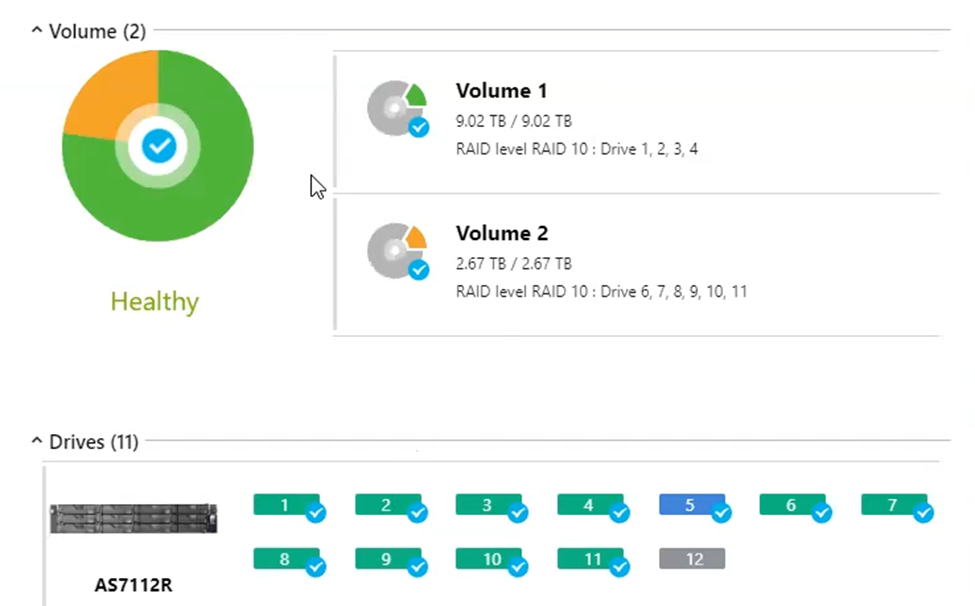

12. FINAL Volume overview after setting up two volumes:

ASUSTOR Terminal Commands & Explainations:

# toolbox nasstat -disk

displays connected disks and info

admin@NAS-ASTR-180:/volume1/home/admin $ toolbox nasstat -disk

SATA disks:

  SATA1 - Disk Id: [0x00, 0], Size: [9314] GB (9314 GB), Model: [TOSHIBA HDWG11A] Serial: [Z930A026FBDG]

    Dev [sda], Id: [0], Type/Port/Slot: [0/0/0], Box/Hub/Path: [0/0/0x000], Raid/Layout/Part/Nvme: [1/1/4/0]

    Sector: [512], Halt/State: [0x00/0x00], Power Mode: [0], Rot/Trim/Dzat: [1/0/0], Init/HAdd/Fast: [1/0/0]

  SATA2 - Disk Id: [0x01, 1], Size: [9314] GB (9314 GB), Model: [TOSHIBA HDWG11A] Serial: [Z910A0NDFBDG]

    Dev [sdb], Id: [1], Type/Port/Slot: [0/0/1], Box/Hub/Path: [0/0/0x000], Raid/Layout/Part/Nvme: [1/1/4/0]

    Sector: [512], Halt/State: [0x00/0x00], Power Mode: [0], Rot/Trim/Dzat: [1/0/0], Init/HAdd/Fast: [1/0/0]

Dump all NAS disks:

  Dev sda - Id: [0], Size: [9314] GB (9314 GB), Model: [TOSHIBA HDWG11A] Serial: [Z930A026FBDG]

    Alias: [SATA1], Disk Id: [0x00, 0], Type/Port/Slot: [0/0/0], Box/Hub/Path: [0/0/0x000], Raid/Layout/Part/Nvme: [1/1/4/0]

    Sector: [512], Halt/State: [0x00/0x00], Power Mode: [0], Rot/Trim/Dzat: [1/0/0], Init/HAdd/Fast: [1/0/0]

  Dev sdb - Id: [1], Size: [9314] GB (9314 GB), Model: [TOSHIBA HDWG11A] Serial: [Z910A0NDFBDG]

    Alias: [SATA2], Disk Id: [0x01, 1], Type/Port/Slot: [0/0/1], Box/Hub/Path: [0/0/0x000], Raid/Layout/Part/Nvme: [1/1/4/0]

    Sector: [512], Halt/State: [0x00/0x00], Power Mode: [0], Rot/Trim/Dzat: [1/0/0], Init/HAdd/Fast: [1/0/0]

  Dev sdc - Id: [2], Size: [0] MB (0 GB), Model: [ADATA IUM01-512MFHL] Serial: [121071111710001955]

    Alias: [DOM], Disk Id: [0xB0, 176], Type/Port/Slot: [5/0/0], Box/Hub/Path: [0/0/0x000], Raid/Layout/Part/Nvme: [0/-1/3/0]

    Sector: [512], Halt/State: [0x80/0x00], Power Mode: [0], Rot/Trim/Dzat: [0/0/0], Init/HAdd/Fast: [0/0/0]

admin@NAS-ASTR-180:/volume1/home/admin $

Below is same command in our production Asustor (192.168.1.X)

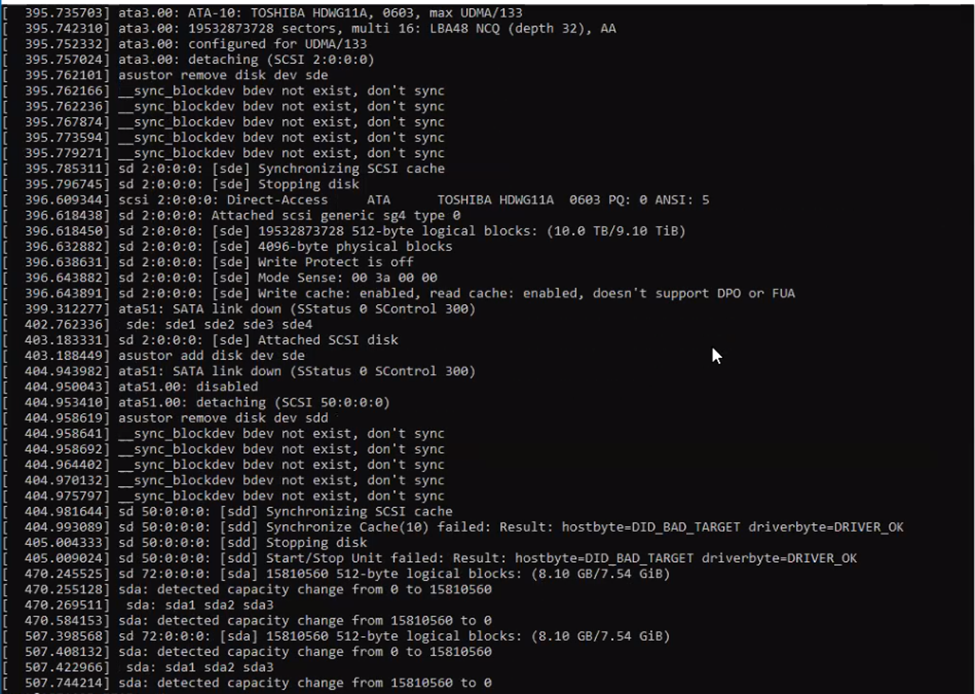

# dmesg

show logs

admin@NAS-ASTR-180:/volume1/home/admin $ dmesg

[    0.000000] Linux version 5.13.x (root@sw1-dailybuild) (x86_64-asustor_x64_g3_2020.12.24-linux-gnu-gcc (crosstool-NG 1.24.0) 7.4.0, GNU ld (crosstool-NG 1.24.0) 2.32) #1 SMP Wed Jul 13 00:14:49 CST 2022

[    0.000000] Command line: BOOT_IMAGE=(hd0,gpt2)/bzImage console=ttyS0,115200n8 bootpart=2 uuid=16587257-2f06-4a65-8b1b-8eadcaa6ab6e

[    0.000000] KERNEL supported cpus:

[    0.000000]   Intel GenuineIntel

[    0.000000]   AMD AuthenticAMD

[    0.000000]   Hygon HygonGenuine

[    0.000000]   zhaoxin   Shanghai

[    0.000000] x86/fpu: x87 FPU will use FXSAVE

[    0.000000] BIOS-provided physical RAM map:

[    0.000000] BIOS-e820: [mem 0x0000000000000000-0x000000000006efff] usable

[    0.000000] BIOS-e820: [mem 0x000000000006f000-0x000000000006ffff] ACPI NVS

[    0.000000] BIOS-e820: [mem 0x0000000000070000-0x000000000008ffff] usable

[    0.000000] BIOS-e820: [mem 0x0000000000090000-0x000000000009ffff] reserved

[    0.000000] BIOS-e820: [mem 0x0000000000100000-0x000000007a4befff] usable

[    0.000000] BIOS-e820: [mem 0x000000007a4bf000-0x000000007aebefff] reserved

[    0.000000] BIOS-e820: [mem 0x000000007aebf000-0x000000007bfbefff] ACPI NVS

[    0.000000] BIOS-e820: [mem 0x000000007bfbf000-0x000000007bffefff] ACPI data

[    0.000000] BIOS-e820: [mem 0x000000007bfff000-0x000000007bffffff] usable

[    0.000000] BIOS-e820: [mem 0x00000000e00f8000-0x00000000e00f8fff] reserved

[    0.000000] BIOS-e820: [mem 0x00000000fed01000-0x00000000fed01fff] reserved

[    0.000000] BIOS-e820: [mem 0x00000000ffc00000-0x00000000ffffffff] reserved

[    0.000000] BIOS-e820: [mem 0x0000000100000000-0x000000017fffffff] usable

[    0.000000] NX (Execute Disable) protection: active

[    0.000000] efi: EFI v2.40 by INSYDE Corp.

[    0.000000] efi: ACPI 2.0=0x7bffe014 SMBIOS=0x7a84f000 ESRT=0x7a852718

[    0.000000] SMBIOS 2.8 present.

[    0.000000] DMI: Insyde AS61xx/Type2 - Board Product Name, BIOS V2.23 06/02/2016

[    0.000000] tsc: Detected 1600.000 MHz processor

[    0.002901] e820: update [mem 0x00000000-0x00000fff] usable ==> reserved

[    0.002911] e820: remove [mem 0x000a0000-0x000fffff] usable

[    0.002924] last_pfn = 0x180000 max_arch_pfn = 0x400000000

[    0.002976] x86/PAT: Configuration [0-7]: WB  WC  UC- UC  WB  WP  UC- WT

[    0.003383] last_pfn = 0x7c000 max_arch_pfn = 0x400000000

[    0.010498] esrt: Reserving ESRT space from 0x000000007a852718 to 0x000000007a852750.

[    0.011687] Secure boot could not be determined

[    0.011691] RAMDISK: [mem 0x3612a000-0x3708cfff]

[    0.011702] ACPI: Early table checksum verification disabled

[    0.011710] ACPI: RSDP 0x000000007BFFE014 000024 (v02 INSYDE)

[    0.011722] ACPI: XSDT 0x000000007BFFE120 000094 (v01 INSYDE INSYDE   00000003      01000013)

[    0.011738] ACPI: FACP 0x000000007BFFA000 00010C (v05 INSYDE INSYDE   00000003 ACPI 00040000)

[    0.011754] ACPI: DSDT 0x000000007BFEA000 00ABBE (v02 INSYDE INSYDE   00000003 ACPI 00040000)

[    0.011766] ACPI: FACS 0x000000007BFBB000 000040

[    0.011776] ACPI: UEFI 0x000000007BFFD000 000236 (v01 INSYDE INSYDE   00000001 ACPI 00040000)

[    0.011788] ACPI: UEFI 0x000000007BFFB000 000042 (v01 INSYDE INSYDE   00000000 ACPI 00040000)

[    0.011799] ACPI: APIC 0x000000007BFF9000 000084 (v03 INSYDE INSYDE   00000003 ACPI 00040000)

[    0.011810] ACPI: MCFG 0x000000007BFF8000 00003C (v01 INSYDE INSYDE   00000003 ACPI 00040000)

[    0.011822] ACPI: SLIC 0x000000007BFF7000 000176 (v01 INSYDE INSYDE   00000003 ACPI 00040000)

[    0.011833] ACPI: WDAT 0x000000007BFF6000 0001C4 (v01 INSYDE INSYDE   00000003 ACPI 00040000)

[    0.011844] ACPI: WDRT 0x000000007BFF5000 000047 (v01 INSYDE INSYDE   00000003 ACPI 00040000)

[    0.011855] ACPI: SSDT 0x000000007BFE9000 000763 (v01 INSYDE CpuPm    00003000 ACPI 00040000)

[    0.011867] ACPI: SSDT 0x000000007BFE8000 000290 (v01 INSYDE Cpu0Tst  00003000 ACPI 00040000)

[    0.011878] ACPI: SSDT 0x000000007BFE7000 00017A (v01 INSYDE ApTst    00003000 ACPI 00040000)

[    0.011889] ACPI: SSDT 0x000000007BFE6000 000DF9 (v01 INSYDE SIOACPI  00001000 ACPI 00040000)

[    0.011901] ACPI: FPDT 0x000000007BFE5000 000044 (v01 INSYDE INSYDE   00000002 ACPI 00040000)

[    0.011912] ACPI: BGRT 0x000000007BFE4000 000038 (v01 INSYDE INSYDE   00000001 ACPI 00040000)

[    0.011922] ACPI: Reserving FACP table memory at [mem 0x7bffa000-0x7bffa10b]

[    0.011928] ACPI: Reserving DSDT table memory at [mem 0x7bfea000-0x7bff4bbd]

[    0.011933] ACPI: Reserving FACS table memory at [mem 0x7bfbb000-0x7bfbb03f]

[    0.011938] ACPI: Reserving UEFI table memory at [mem 0x7bffd000-0x7bffd235]

[    0.011943] ACPI: Reserving UEFI table memory at [mem 0x7bffb000-0x7bffb041]

[    0.011948] ACPI: Reserving APIC table memory at [mem 0x7bff9000-0x7bff9083]

[    0.011953] ACPI: Reserving MCFG table memory at [mem 0x7bff8000-0x7bff803b]

[    0.011958] ACPI: Reserving SLIC table memory at [mem 0x7bff7000-0x7bff7175]

[    0.011963] ACPI: Reserving WDAT table memory at [mem 0x7bff6000-0x7bff61c3]

[    0.011968] ACPI: Reserving WDRT table memory at [mem 0x7bff5000-0x7bff5046]

[    0.011973] ACPI: Reserving SSDT table memory at [mem 0x7bfe9000-0x7bfe9762]

[    0.011978] ACPI: Reserving SSDT table memory at [mem 0x7bfe8000-0x7bfe828f]

[    0.011983] ACPI: Reserving SSDT table memory at [mem 0x7bfe7000-0x7bfe7179]

[    0.011988] ACPI: Reserving SSDT table memory at [mem 0x7bfe6000-0x7bfe6df8]

[    0.011993] ACPI: Reserving FPDT table memory at [mem 0x7bfe5000-0x7bfe5043]

[    0.011998] ACPI: Reserving BGRT table memory at [mem 0x7bfe4000-0x7bfe4037]

[    0.012019] ACPI: Local APIC address 0xfee00000

[    0.012153] No NUMA configuration found

[    0.012157] Faking a node at [mem 0x0000000000000000-0x000000017fffffff]

[    0.012169] NODE_DATA(0) allocated [mem 0x17fffa000-0x17fffdfff]

[    0.012223] Zone ranges:

[    0.012227]   DMA      [mem 0x0000000000001000-0x0000000000ffffff]

[    0.012234]   DMA32    [mem 0x0000000001000000-0x00000000ffffffff]

[    0.012240]   Normal   [mem 0x0000000100000000-0x000000017fffffff]

[    0.012246] Movable zone start for each node

[    0.012250] Early memory node ranges

[    0.012252]   node   0: [mem 0x0000000000001000-0x000000000006efff]

[    0.012258]   node   0: [mem 0x0000000000070000-0x000000000008ffff]

[    0.012262]   node   0: [mem 0x0000000000100000-0x000000007a4befff]

[    0.012268]   node   0: [mem 0x000000007bfff000-0x000000007bffffff]

[    0.012273]   node   0: [mem 0x0000000100000000-0x000000017fffffff]

[    0.012279] Initmem setup node 0 [mem 0x0000000000001000-0x000000017fffffff]

[    0.012286] On node 0 totalpages: 1025102

[    0.012290]   DMA zone: 64 pages used for memmap

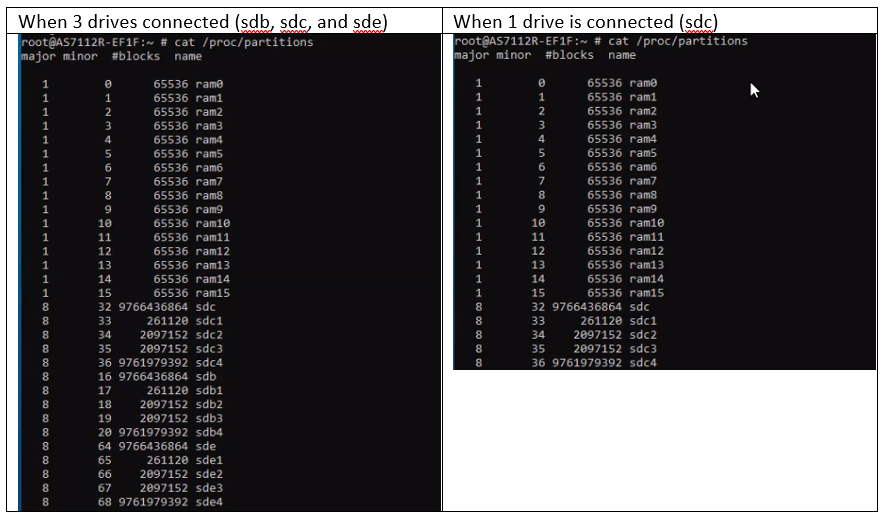

# cat /proc/partitions

(lists all partitions&drives, sd is for sata disk (numbered from ‘a’ onwards to indicate drive num)

admin@NAS-ASTR-180:/volume1/home/admin $ cat /proc/partitions

major minor  #blocks  name

   1        0      65536 ram0

   1        1      65536 ram1

   1        2      65536 ram2

   1        3      65536 ram3

   1        4      65536 ram4

   1        5      65536 ram5

   1        6      65536 ram6

   1        7      65536 ram7

   1        8      65536 ram8

   1        9      65536 ram9

   1       10      65536 ram10

   1       11      65536 ram11

   1       12      65536 ram12

   1       13      65536 ram13

   1       14      65536 ram14

   1       15      65536 ram15

   7        0       1024 loop0

   8        0 9766436864 sda

   8        1     261120 sda1

   8        2    2097152 sda2

   8        3    2097152 sda3

   8        4 9761979392 sda4

   8       16 9766436864 sdb

   8       17     261120 sdb1

   8       18    2097152 sdb2

   8       19    2097152 sdb3

   8       20 9761979392 sdb4

   9        0    2095104 md0

   9      126    2095104 md126

   9        1 9761848320 md1

admin@NAS-ASTR-180:/volume1/home/admin $​

# dd if=/dev/zero of=/dev/sda bs=1M count=512
(erases sda)

Following wipes /dev/sdc:

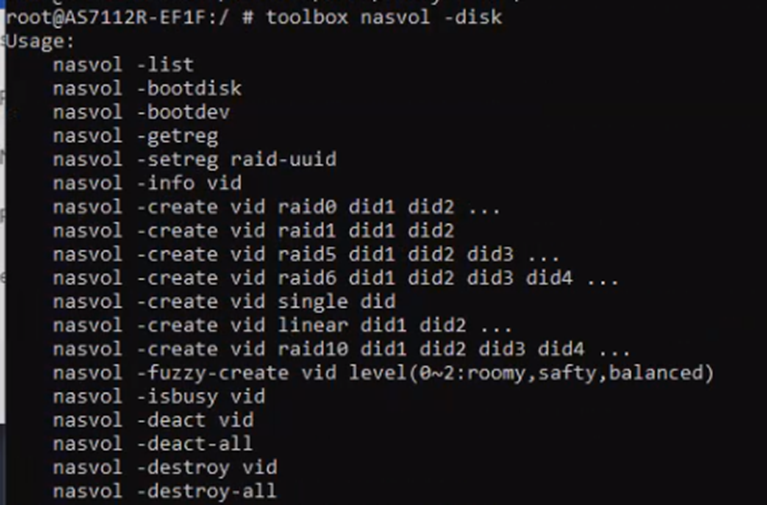

# toolbox nasvol

(manages volumes and creates raid partitions)
