ASUS BMC—Static IP Network Setup

  1. Connect Network Cable
    • Connect a network cable to the MGMT (Management) port.
    • If the network has DHCP enabled, the server will automatically obtain an IP address.

    • If DHCP is not enabled, follow the manual configuration steps below.
  1. Enter BIOS Setup
    • Reboot the server.
    • Press F2 or DEL during POST to enter the BIOS setup.

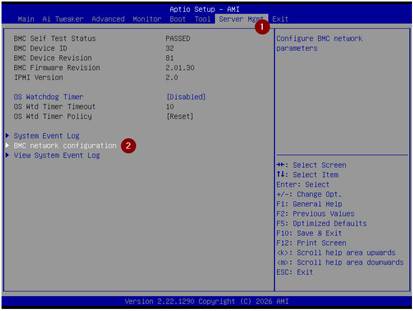

  2. Configure BMC IP Address
    • Navigate to:
      Server Management → BMC Network Configuration

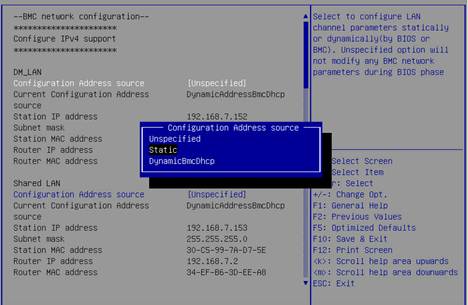

    • Go to DM-Lan → Static → set the IP address

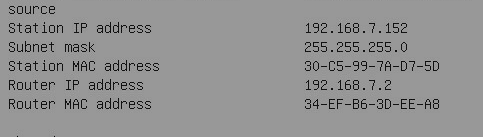

    • Set the required BMC IP address, Subnet Mask, and Gateway.

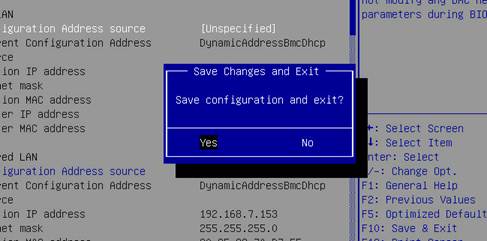

  1. Save Configuration
    • Press F10 to save the changes.

    • Allow the server to restart.

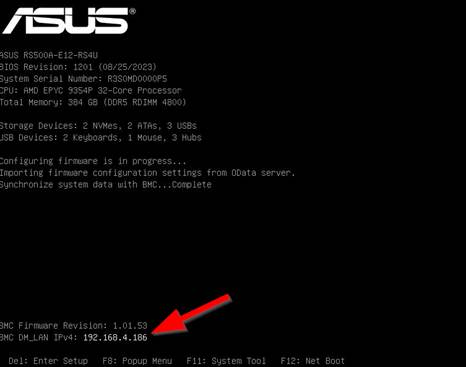

  1. Verify BMC IP
    • After reboot, check the POST screen to confirm the BMC IP address is displayed.

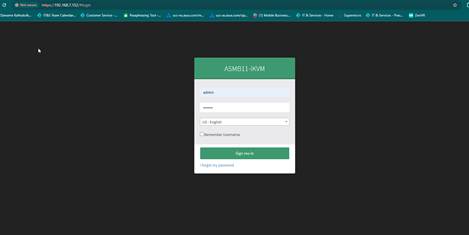

  2. Access BMC Web Interface
    • Open a web browser (preferably a modern browser like Chrome or Edge).
    • Enter the IP address using HTTPS:
      Example:       https://192.168.0.100

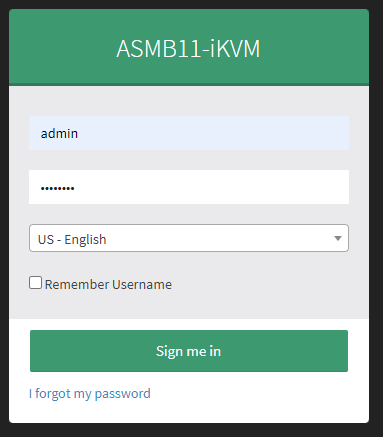

  1. Login Credentials
    • Username: admin
    • Password: admin
    • If this does not work, try:
      Password:       Password
