Asus AIO E3402 RAM Upgradation

Upgrading and replacing components in the most current Asus AIO PC series needed extra caution. Because they are more sleek and thin than earlier models., especially while opening the device. Otherwise, there is a possibility of causing harm to the display while opening the cover.

To make the Hardware enhancements, follow the steps provided below.

Steps to follow

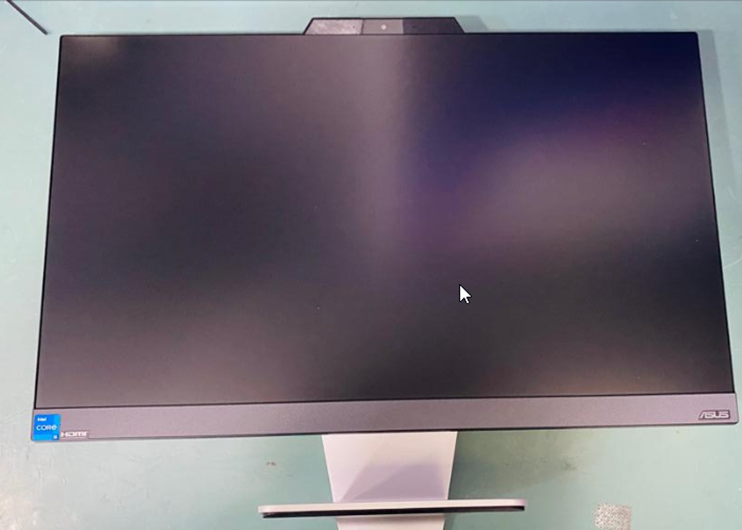

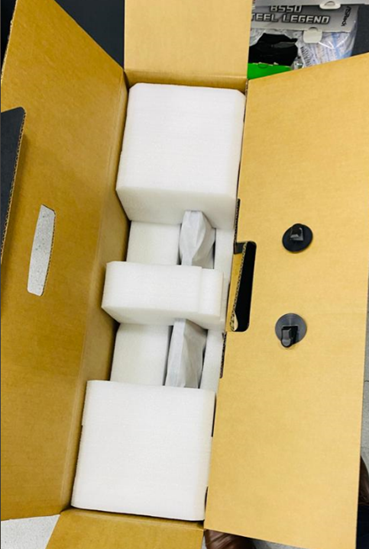

1. Carefully unbox the goods without causing any harm to the packaging package.

2. Keep the PC in an ESD-protected environment and use ESD gloves before dismantling the system.

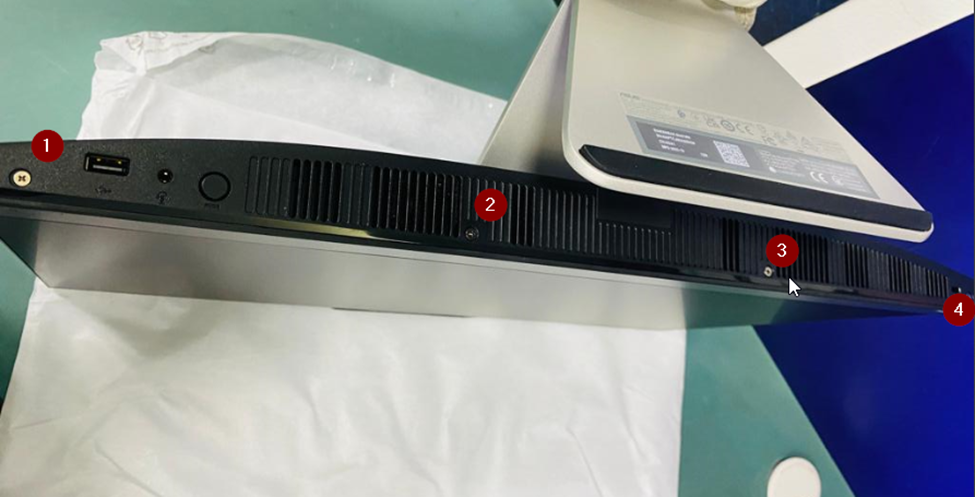

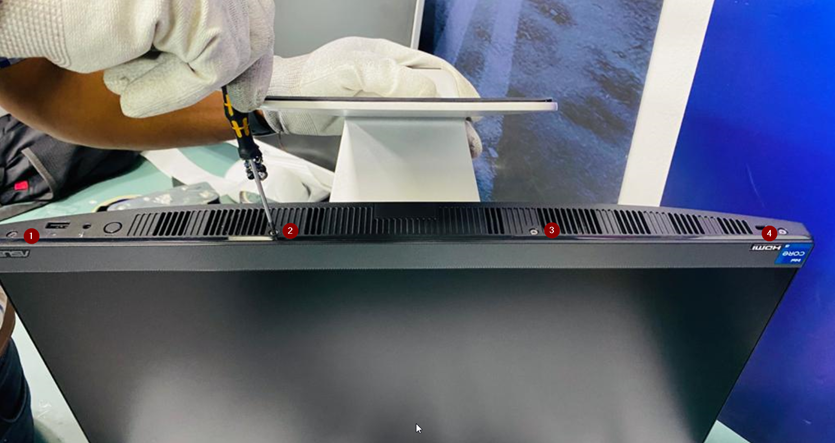

3.From the computer unscrew the four screws shown in the image

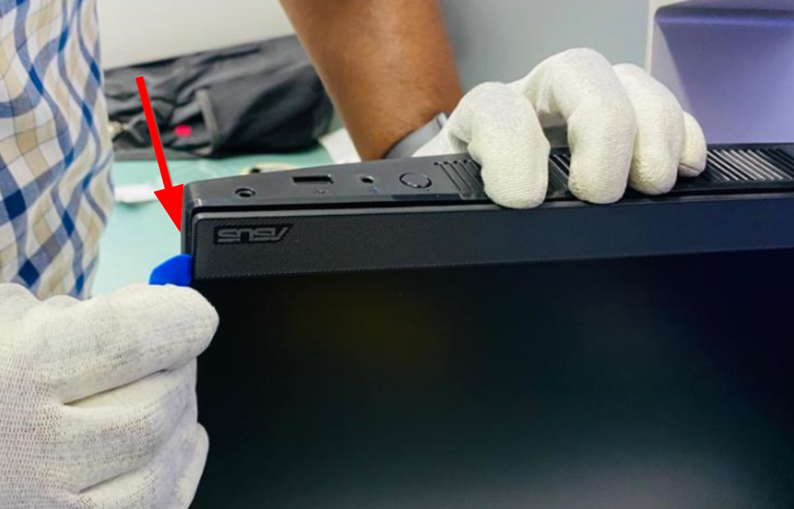

4.Open and split the display unit using Opening Picks to gain access to the motherboard.

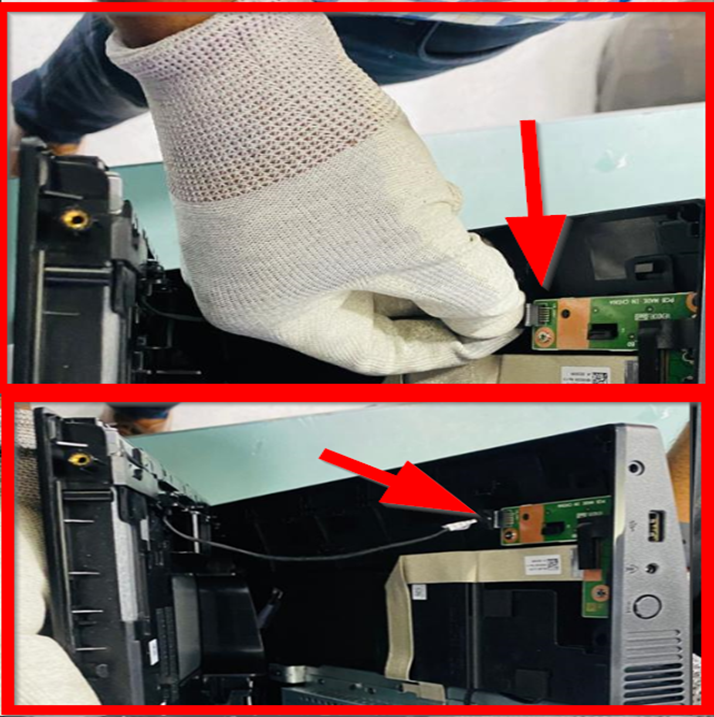

5.Remove the cable from front Panel IO board.

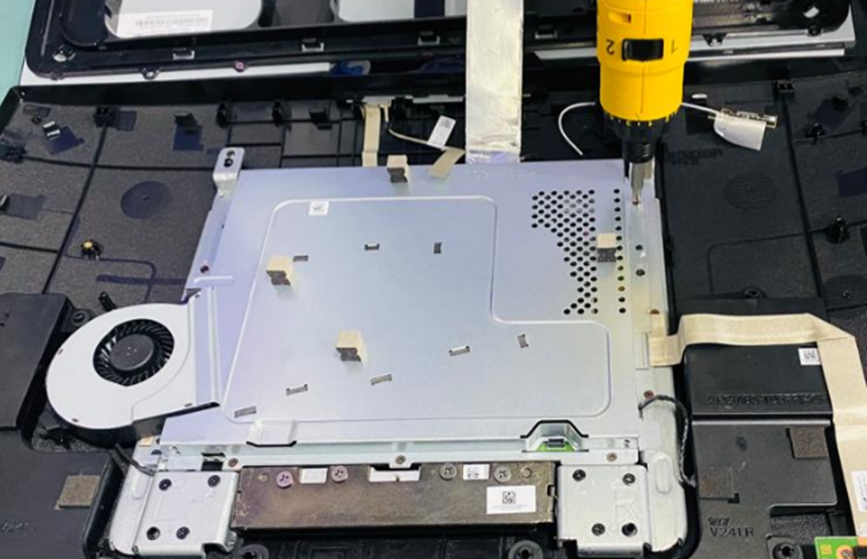

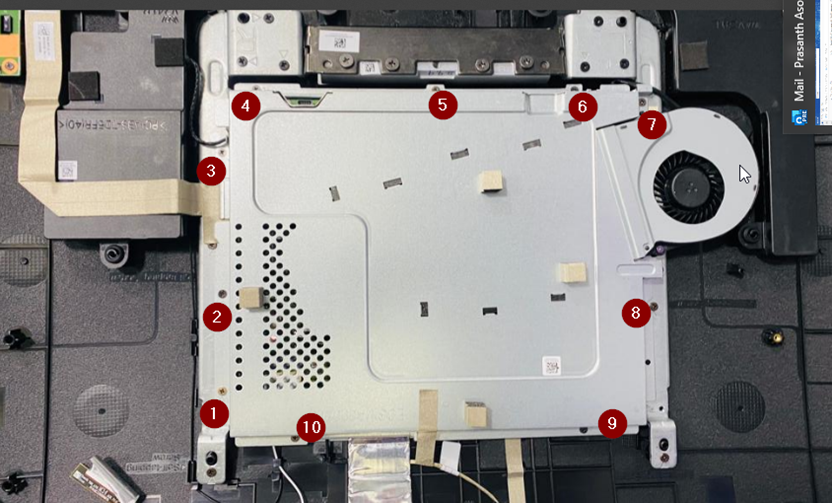

6.To gain access to the motherboard, unscrew all ten screws from the motherboard shield.

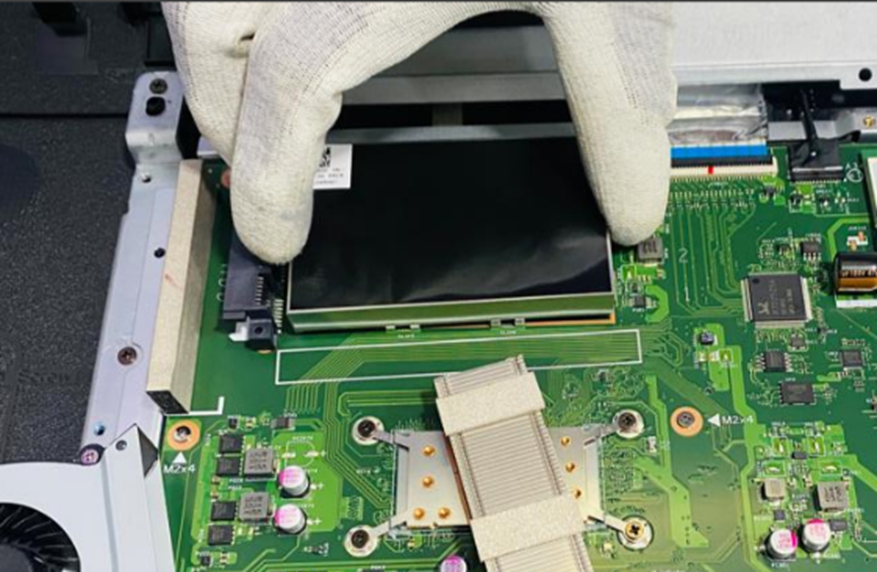

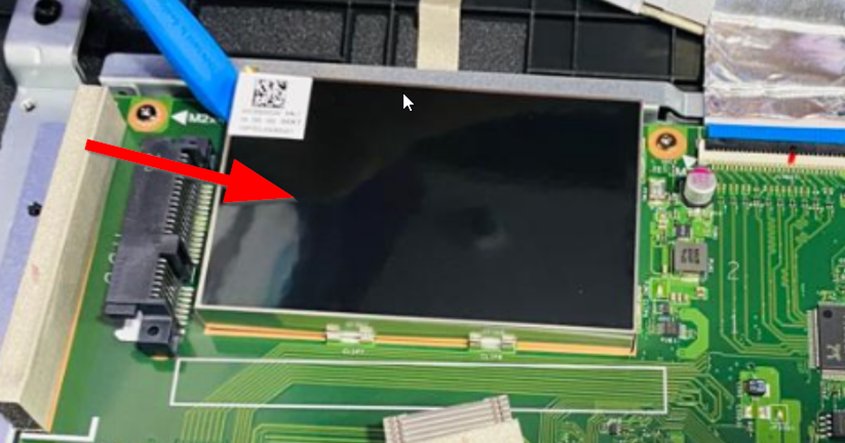

7.After getting access to the M/B, remove the protective shield as demonstrated in the picture to obtain access to the RAM slots. To remove the shield, use an opening tool.

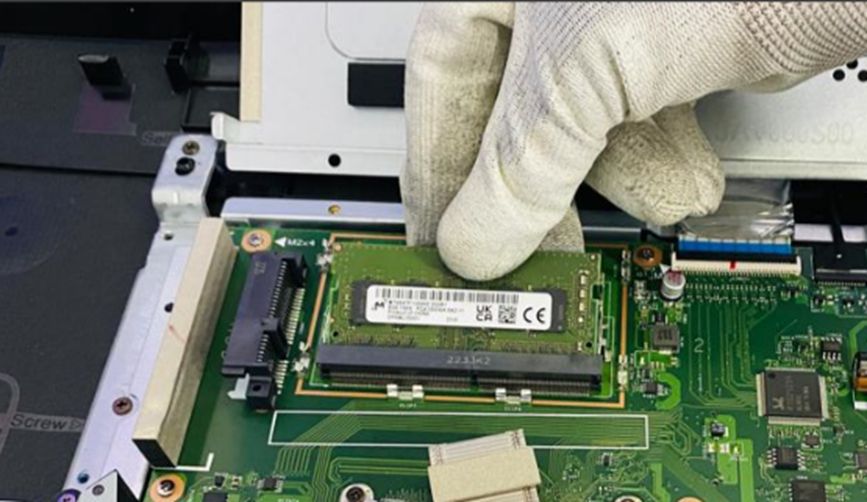

8.Insert the memory into the slot.

9.Reattach the shield to the motherboard

10.Reattach Motherboard shield into its position

11.Connect the IO Board cable to the Front Panel PCB and carefully close and screw the rear cover.

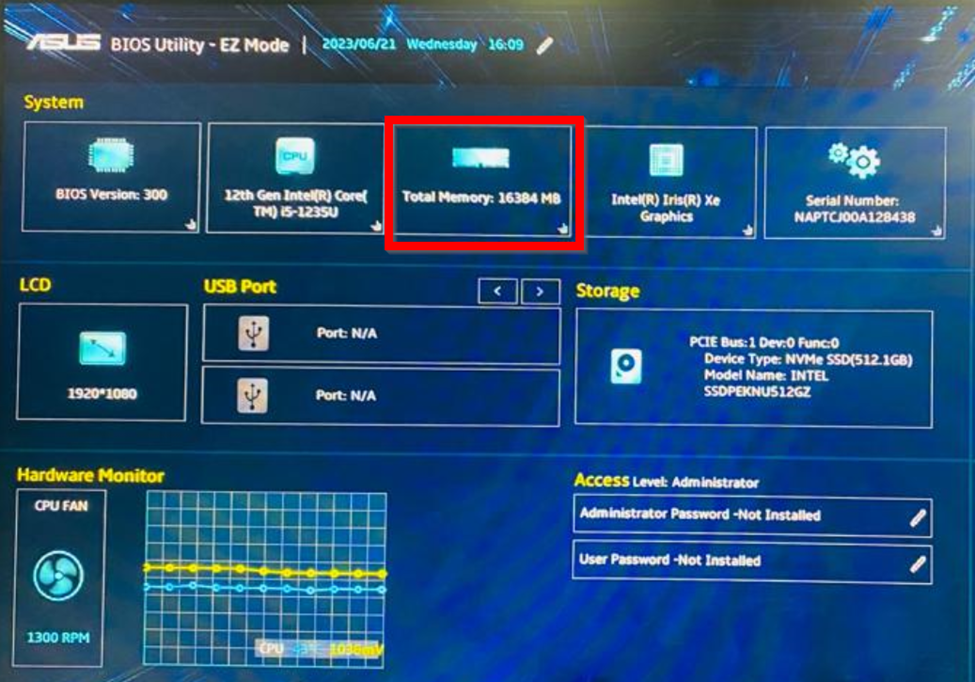

12.Once you have completed the upgrade, connect the Power Adaptor and switch on the device to ensure that the device identified the memory and that the memory capacity was increased.

13.Finally, if necessary, update the bios.
