ADT Asus Diagnostic Tool
ADT
Asus Diagnostic
Tool
Supported Product Types
ADT is compatible with various ASUS product types, including Notebooks, Desktops, AIOs, Mini PCs, and Vivo PCs. However, it does not support Chromebook Series, T Series, 32bit systems, and Atom Series models.
Use Cases
Comprehensive Hardware Testing: ADT performs detailed diagnostics on key hardware components, identifying the exact cause of issues in ASUS notebooks.
Accurate Error Identification: When a component fails a test, ADT provides an error code with suggested solutions, ensuring precise and effective repairs.
Efficient Test Result Management: ADT offers a simple method to upload test results to the Lean eService database, facilitating repair quality monitoring and tool implementation rate tracking.
Component Tests
ADT includes a range of component tests, such as Motherboard, Hard Disk Drive, Wi-Fi, RAM, SSD, Battery, Display, Touchscreen, Touchpad, Adapter, Keyboard, Fan, Webcam, ODD, USB, Speaker, SD Card Reader, Audio Jack, and Smart Card tests.
Test Parameters and Troubleshooting
The tool provides extensive system tests, component tests, symptom tests, and troubleshooting steps for various scenarios, including error codes, warning codes, hide codes, and pass codes.
Procedure
Requirements - An USB flash drive of 16GB SanDisk is recommended or more is required, preferably USB 3.0.
1. The ASUS Diagnostic Tool image can be downloaded from the SIP, which will be required to build the tool.
2. Using Rufus utility to build the ASUS Diagnostic Tool image into the USB flash drive.
3. Plug in the USB flash drive containing the tool into the USB3.0 port if the testing model has both USB3.0 and USB 2.0 to speed up the ADT test.
4. From the boot menu select the flash drive contains the ADT tool.

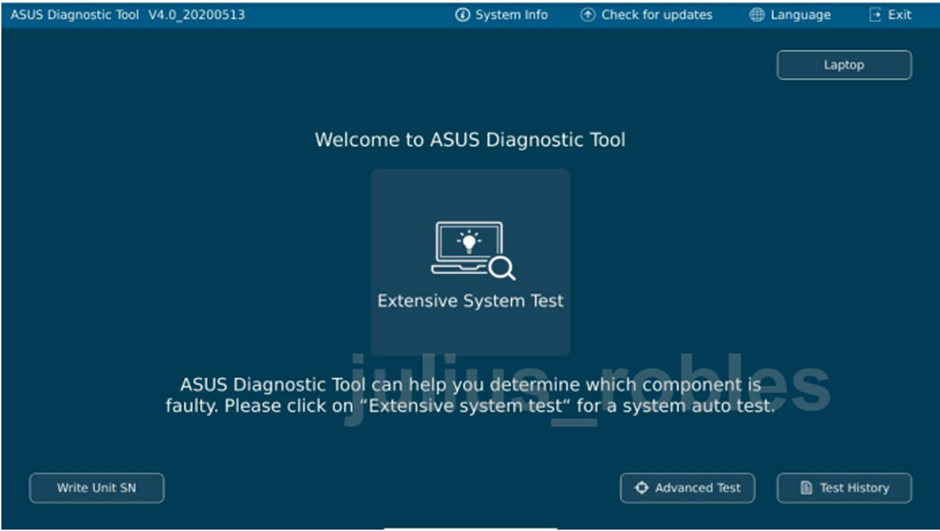

5. The computer will boot into ADT
like shown in figure.

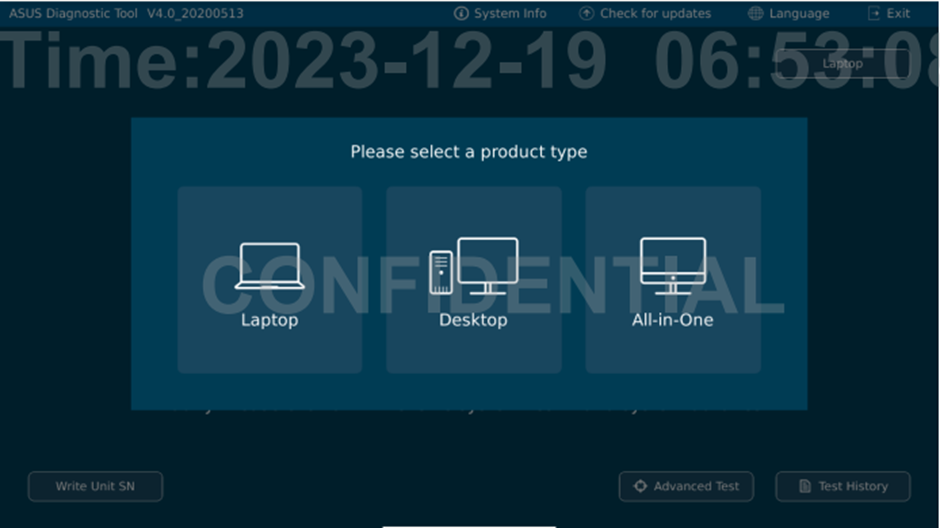

6. ADT may catch the wrong product
type or unable to catch, you can choose the correct product type for testing.

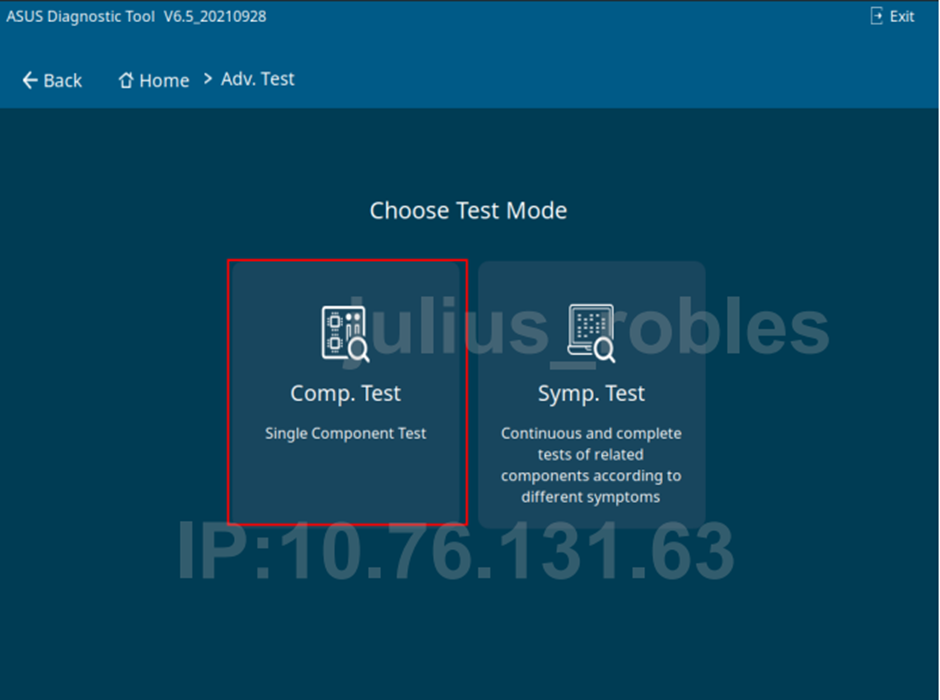

7. Two types of tests are
available in ADT 1) Extensive System Test and 2) Advanced Test.
Extensive System Test

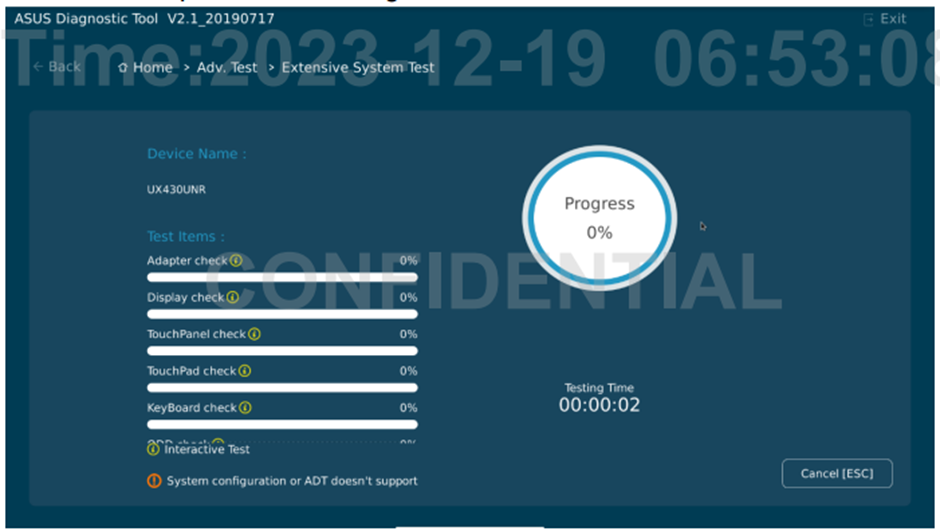

1.Click on the Extensive System
Test.
2. Once the test completed results will be displayed.
Advanced Test

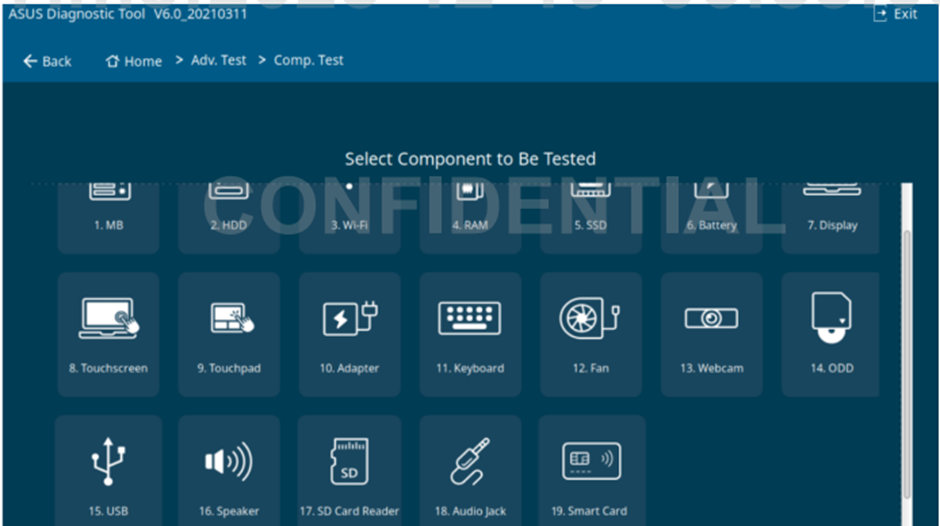

1. Component Test: Choose component
test to test each component separately.

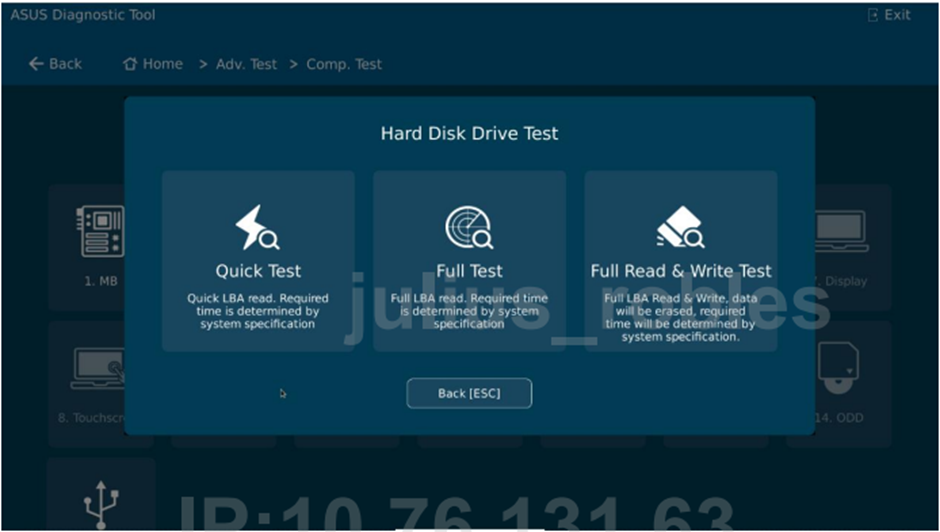

2. Component tests may have a
Quick Test, Full Test, and other test specific tests depending on the
component.
3.Click which test is required, once the test is completed the results will be displayed.
Test Results
Conclusion
The ASUS Diagnostic Tool is an essential utility for ASUS service providers, offering a reliable and efficient way to diagnose and repair hardware issues. By following the guidelines provided in this KB article, technicians can ensure accurate diagnostics and enhance overall customer satisfaction.
